SPECIFICATIONS

Brand Name: NONE

Certification: FCC,ce

Current: 10A

Features: Motion sensor

High-concerned chemical: None

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Model Number: Controller-Step-02

Origin: Mainland China

Product name: Stair Light Motion Sensor Switch

Switch Type: Sensor Switch

Warranty: 2 years

Product description

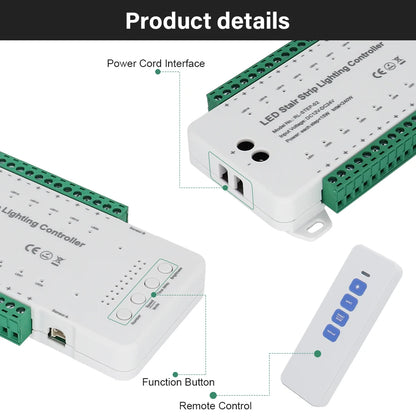

Product Name: Stair Motion Sensor Switch
Voltage: DC12V / DC24V
Power: each step<15w total<240w (DC12V /120W; DC24V/ 240W Max)
Sensors: 2 PIR Sensoron both sides
Special function: 2PIN main wire for Max 99 steps , with Delay Time/Speed / dimmable Lights and 12 Model
PIR Sensor: fixed mounted or recessed mounted ( Dia 15mm only )

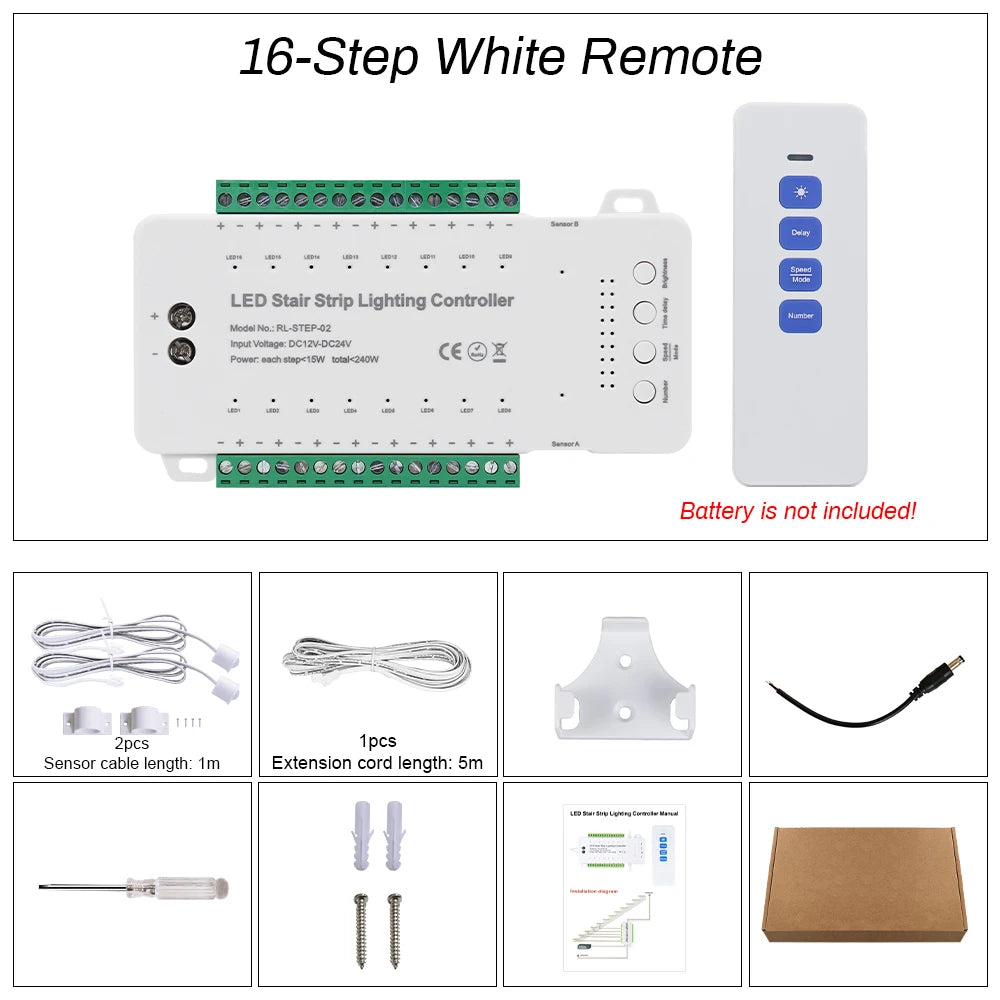

Package Included:

1x Controller
2x PIR sensor (1 meter)
1 batch of tools and accessories (there's no battery in the controller)
(LED strip and power supply are NOT included !!!)

NOTE:

1- A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.
4- Don't make the +/- pole reversed, or the controller can't work.
