MALIIGAZA WS2811 SPI RGB COB LED Strip 12V/24V, 360-720 LEDs/m, Addressable RGBIC 5m/10m Indoor Light Tape

$15.96 USD

~~$31.91 USD~~ $15.96 USD

Sale Sold out

Shipping calculated at checkout.

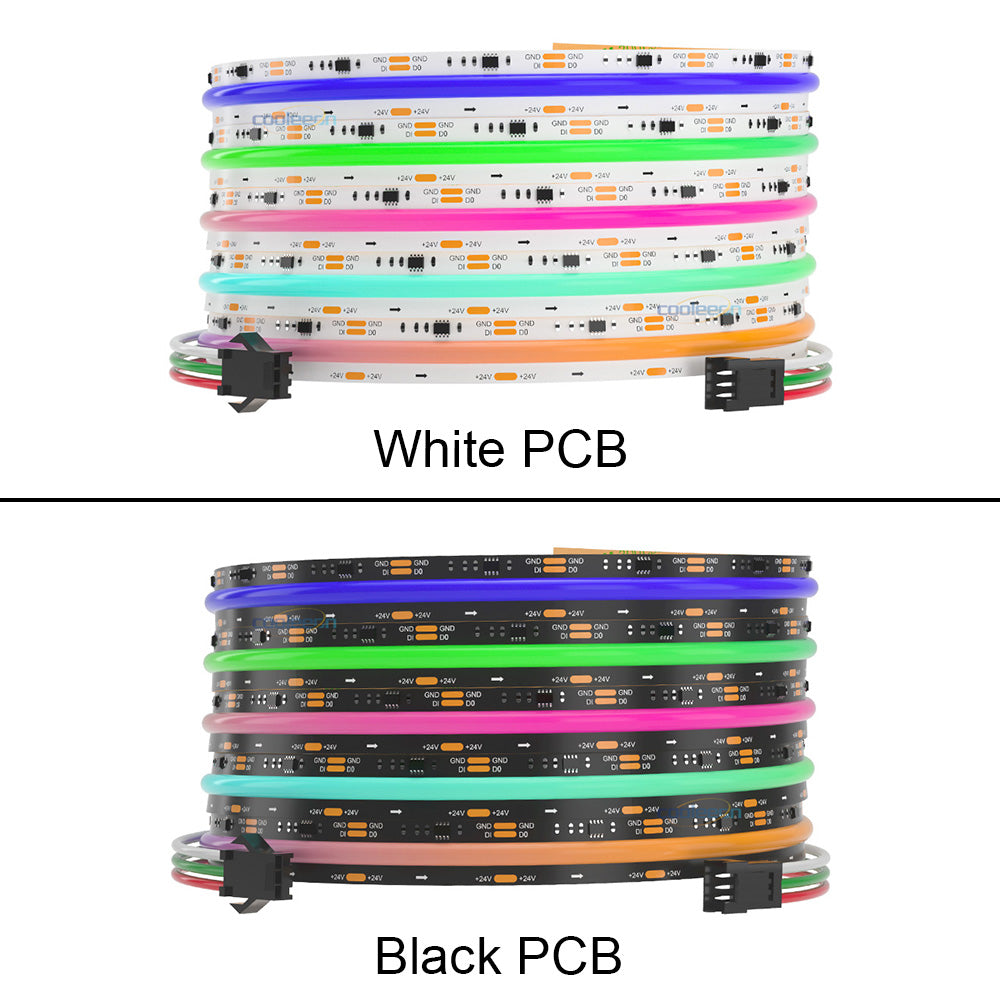

PCB Color Black PCB White PCB

Model 720LEDs/m 12mm 576LEDs/m 10mm 420LEDs/m 10mm 360LEDs/m 8mm

Smooth Addressable RGB Lighting Without Visible LED Dots

The MALIIGAZA SPI RGBIC COB LED Strip combines high-density COB lighting with WS2811 programmable control for smooth static colors, flowing effects, and decorative ambient lighting. Choose from 360, 420, 576, or 720 LEDs/m, with 12V and 24V options depending on the model.

Important: LED Strip Only

This product does NOT include a power supply or LED controller. A compatible SPI RGB controller is required. Use a 12V DC power supply with a 12V strip and a 24V DC power supply with a 24V strip.

Programmable Color. Continuous COB Light. More Creative Freedom.

Traditional SMD RGB strips can leave visible bright spots, especially when installed without a deep diffuser. This high-density RGB COB strip creates a smoother, softer lighting surface while adding programmable SPI control for more expressive decorative lighting.

Use it for bedroom lighting, cabinets, kitchens, feature walls, furniture, DIY projects, and other indoor ambient lighting installations where both appearance and lighting effects matter.

Why Choose This SPI RGB COB LED Strip?

High-Density COB Lighting

Choose 360, 420, 576, or 720 LEDs/m. Higher-density versions provide a smoother and brighter continuous lighting surface.

WS2811 Programmable Control

Built-in WS2811 IC control supports programmable RGB effects when paired with a compatible SPI RGB controller.

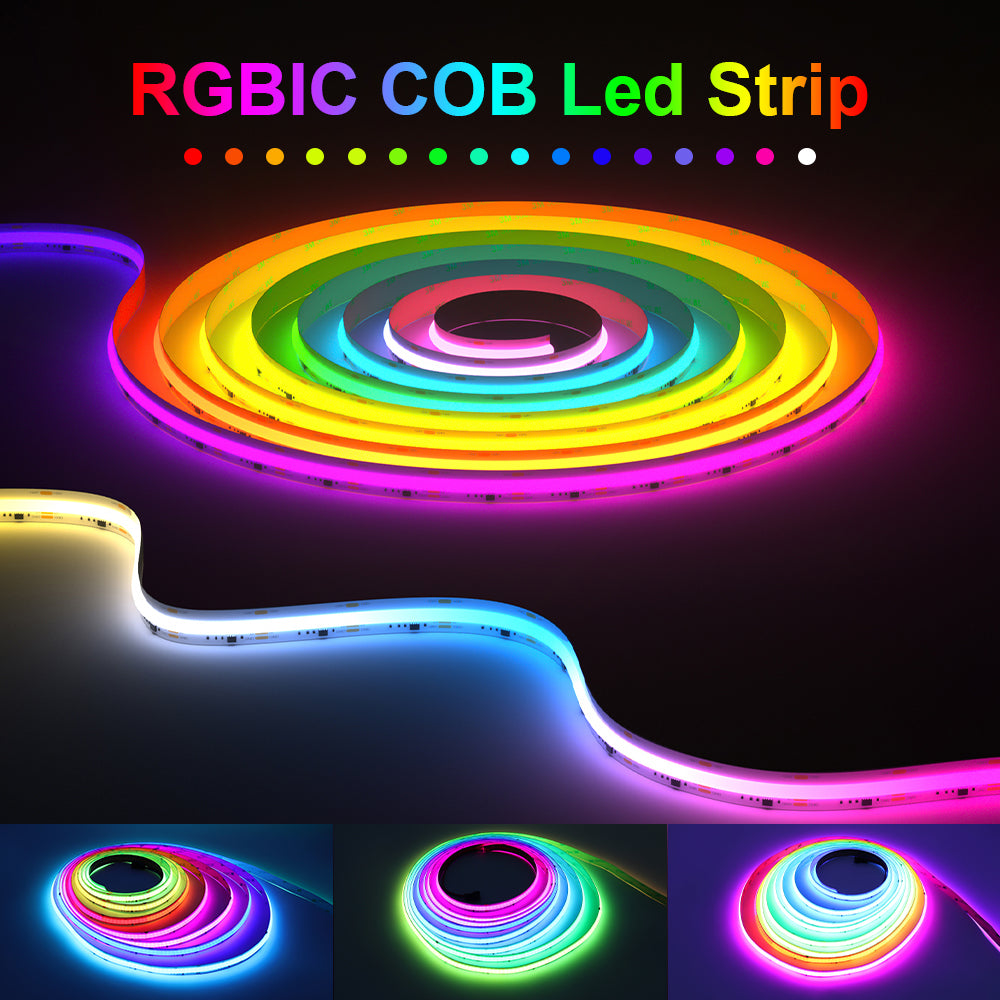

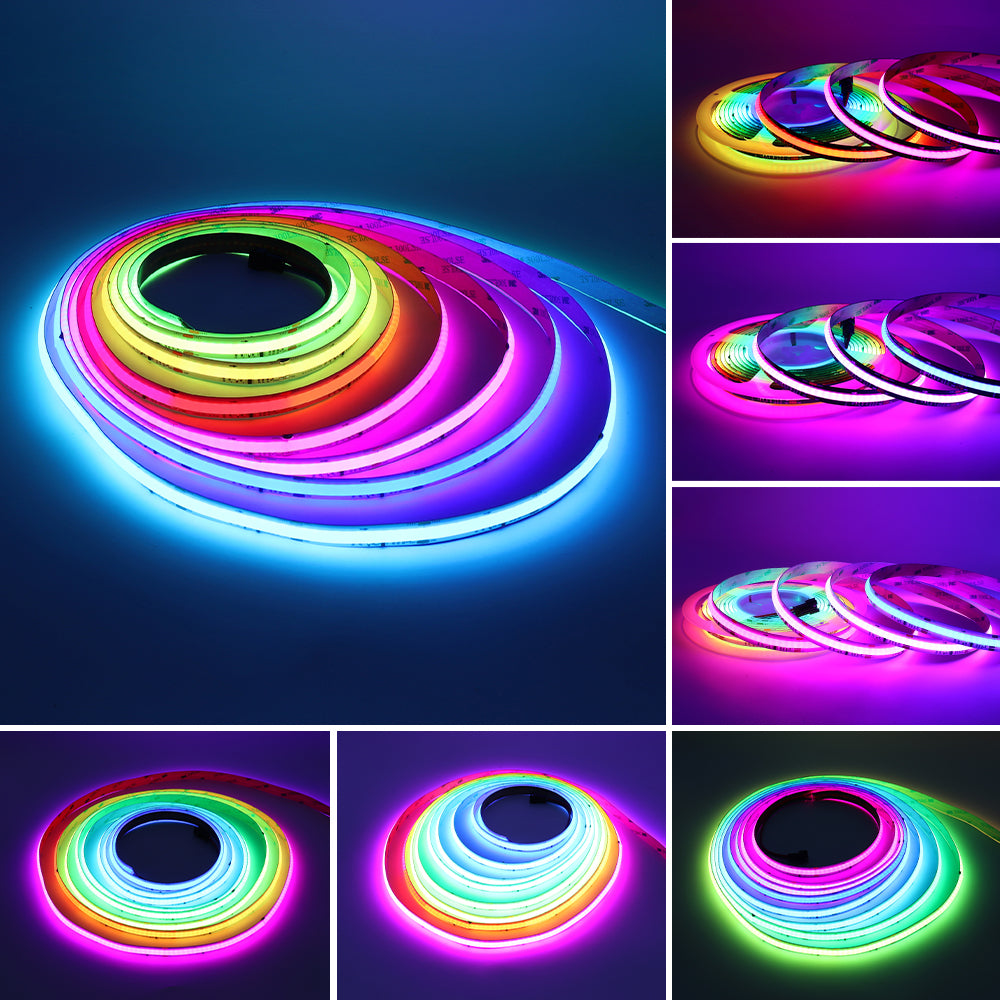

Static and Dynamic RGB Effects

Create static colors or flowing dynamic effects for decorative, ambient, and creative DIY lighting projects.

CRI Above 90

High color rendering helps illuminated surfaces and surrounding decor appear more natural.

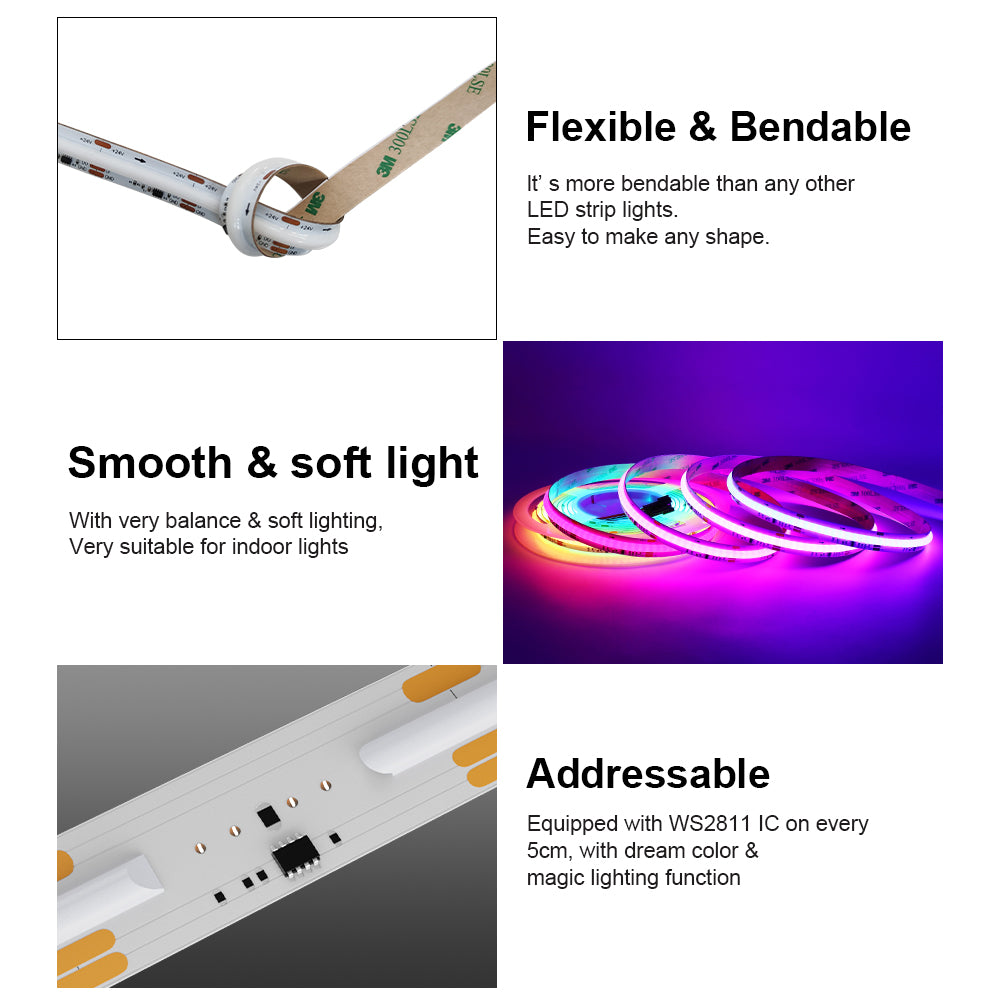

Flexible and Cuttable

The flexible strip can follow many installation shapes and can be cut at the specified cutting intervals for custom projects.

Strong Adhesive Backing

Integrated high-adhesion double-sided tape simplifies mounting on clean, smooth indoor surfaces.

Top Recommendation: 720 LEDs/m Version

For customers who prioritize lighting quality, brightness, and a more continuous COB appearance, the 720 LEDs/m version is the premium option in this product family.

It uses a 12mm PCB, 20 WS2811 ICs per meter, high-density LEDs, and higher-grade PCB construction designed to handle greater current with reduced voltage drop.

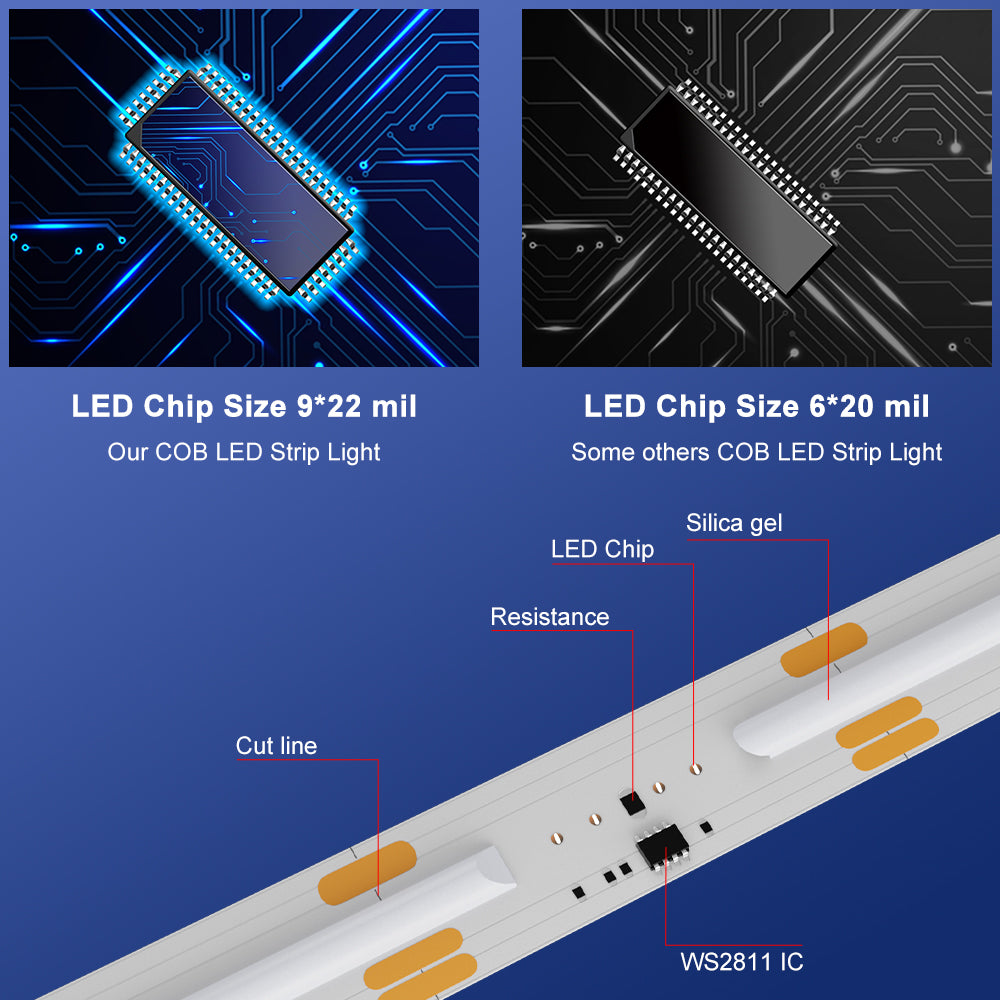

High-Density COB Technology

Instead of widely spaced individual SMD LEDs, COB construction places a very high number of LEDs across the strip to create a more continuous line of light.

Four density options allow you to balance strip width, brightness, cutting interval, power consumption, and project budget.

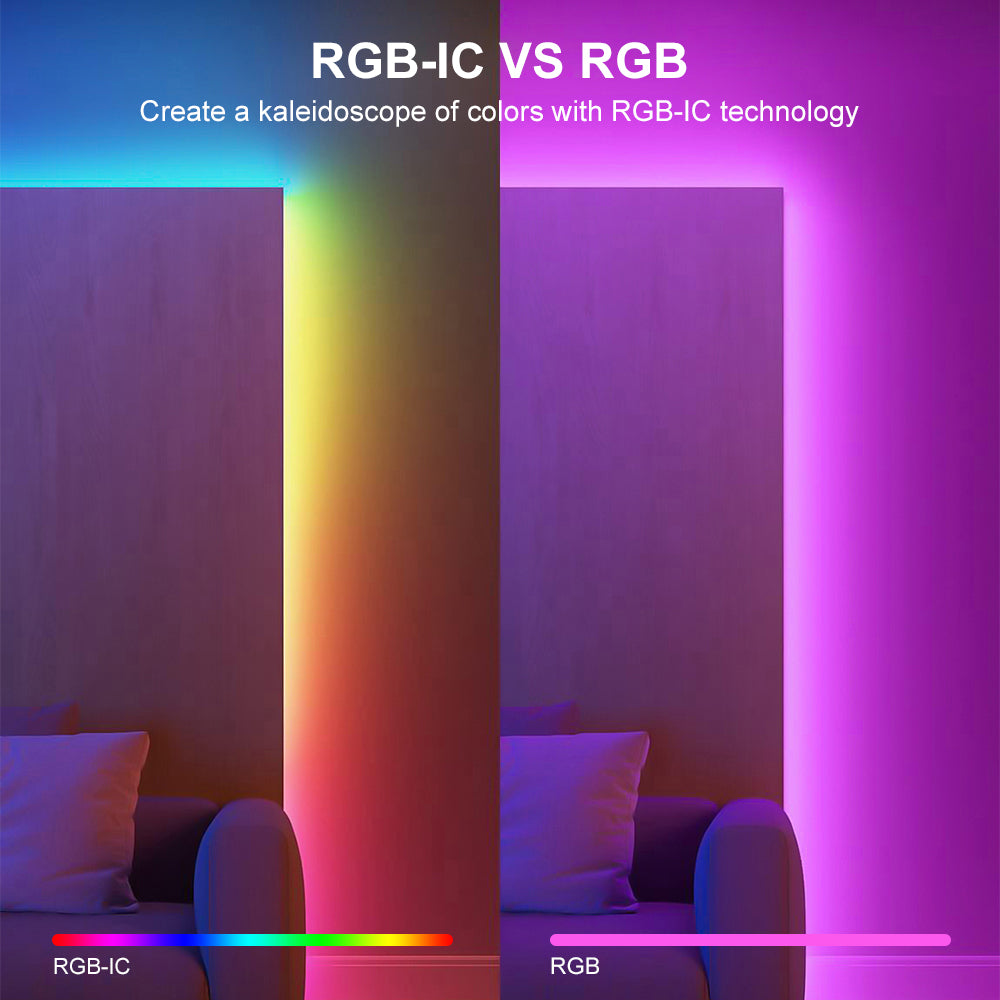

WS2811 SPI Addressable RGB Control

The integrated WS2811 IC makes this strip different from a standard PWM RGB strip. When connected to a compatible SPI RGB controller, the strip can display programmable lighting effects instead of changing the entire strip only as one basic RGB channel.

The final colors, animation modes, app functions, music effects, remote-control features, and smart-home functions depend on the SPI controller you choose.

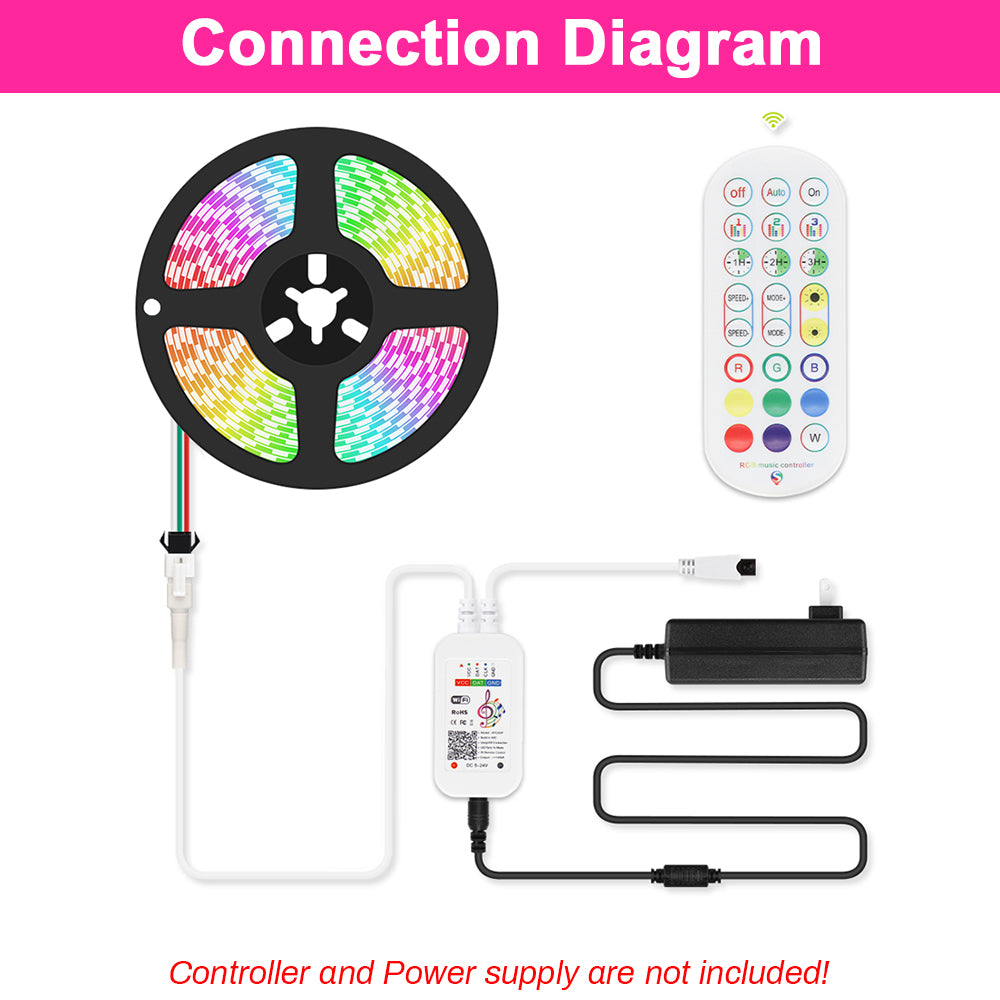

Controller and Power Supply Compatibility

Controller: Use a compatible SPI RGB LED controller that supports WS2811-type addressable lighting.

12V strip: Use a DC 12V power supply.

24V strip: Use a DC 24V power supply.

Recommended power reserve: Choose a power supply with approximately 1.5 times the calculated theoretical strip wattage.

Smart Home Functions Depend on Your Controller

The LED strip itself does not provide Wi-Fi, Bluetooth, voice control, or an app connection.

If you need app control or other smart functions, select a compatible SPI RGB controller that provides the functions required for your project.

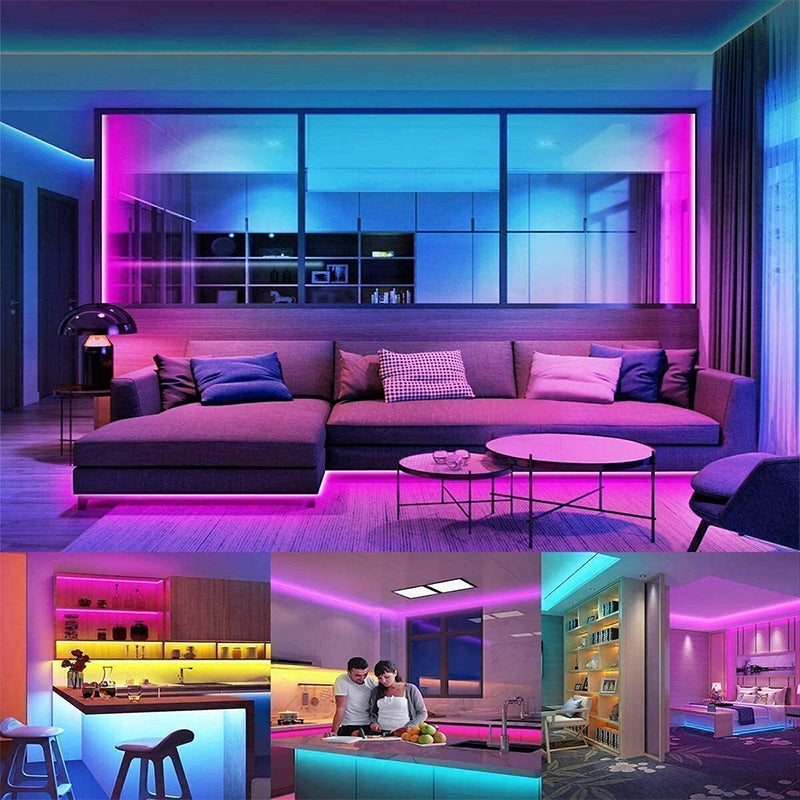

Ideal for Indoor Decorative Lighting

Bedroom Ambient Lighting

Cabinet Lighting

Kitchen Decoration

Feature Walls

Furniture Lighting

DIY Lighting Projects

Technical Specifications

Specification	720 LEDs/m	576 LEDs/m	420 LEDs/m	360 LEDs/m Model*
Length	5m / 10m	5m	5m	5m
Width	12mm	10mm	10mm	8mm
Thickness	3mm	2.6mm	2.3mm	2.2mm
Voltage	DC 12V / 24V	DC 12V / 24V	DC 24V	DC 24V
Power	15-18W/m	10-15W/m	10W/m	10W/m
IC Type	WS2811	WS2811	WS2811	WS2811
IC Quantity	20 IC/m	16 IC/m	10 IC/m	10 IC/m
Minimum Cut Unit	50mm	62.5mm	100mm	100mm
CRI	>90	>90	>90	>90
Luminous Efficiency	>100 lm/W	>100 lm/W	>100 lm/W	>100 lm/W
PCB Color	White / Black	White / Black	White	White
IP Rating	IP30	IP30	IP30	IP30

* Technical data supplied for the 360 LEDs/m model contains one conflicting LED-density entry listing 3600 LEDs/m. The product family is identified as 360 LEDs/m elsewhere in the supplied information. Please verify this value before final publication.

Package Includes

1 x SPI RGB COB LED Strip

Power supply and SPI RGB LED controller are NOT included.

Basic Installation Guide

Confirm the strip voltage. Check whether your selected strip is DC 12V or DC 24V.
Select the correct power supply. Match 12V strips with 12V DC power supplies and 24V strips with 24V DC power supplies.
Choose an SPI RGB controller. The controller must be compatible with WS2811-type programmable RGB lighting.
Test before permanent mounting. Connect the strip, controller, and power supply correctly and confirm normal operation.
Prepare the mounting surface. Install on a clean, dry, smooth indoor surface for better adhesive performance.
Cut only at the permitted cutting unit. Minimum cutting intervals vary by model from 50mm to 100mm.
Install the strip fully unrolled. Do not power the strip while it remains tightly wound on the reel.

Troubleshooting Guide

The strip does not light up

Confirm the power supply voltage matches the strip voltage and verify that a compatible SPI RGB controller is connected.

The strip lights but effects do not work correctly

Check that the controller is designed for SPI RGB addressable LED strips and supports the WS2811 control type.

The strip becomes unusually hot

Switch off the power and confirm that the strip is fully unrolled. Never operate the strip while it is tightly wound on the reel.

The adhesive does not hold well

Make sure the mounting surface is clean, dry, smooth, and free from dust, grease, or moisture before installation.

Important Safety and Purchase Notes

Never connect this LED strip directly to AC 110V or AC 220V mains power. Doing so can immediately damage the strip.
Use only a suitable DC power supply matching the strip voltage.
The power supply is not included and must be purchased separately.
The LED controller is not included and must be purchased separately.
Use a compatible SPI RGB controller.
For power supply sizing, approximately 1.5 times the theoretical strip wattage is recommended.
Do not turn on the LED strip while it is still tightly wound on the reel because heat cannot dissipate properly.
IP30 versions are intended for dry indoor environments and are not waterproof.

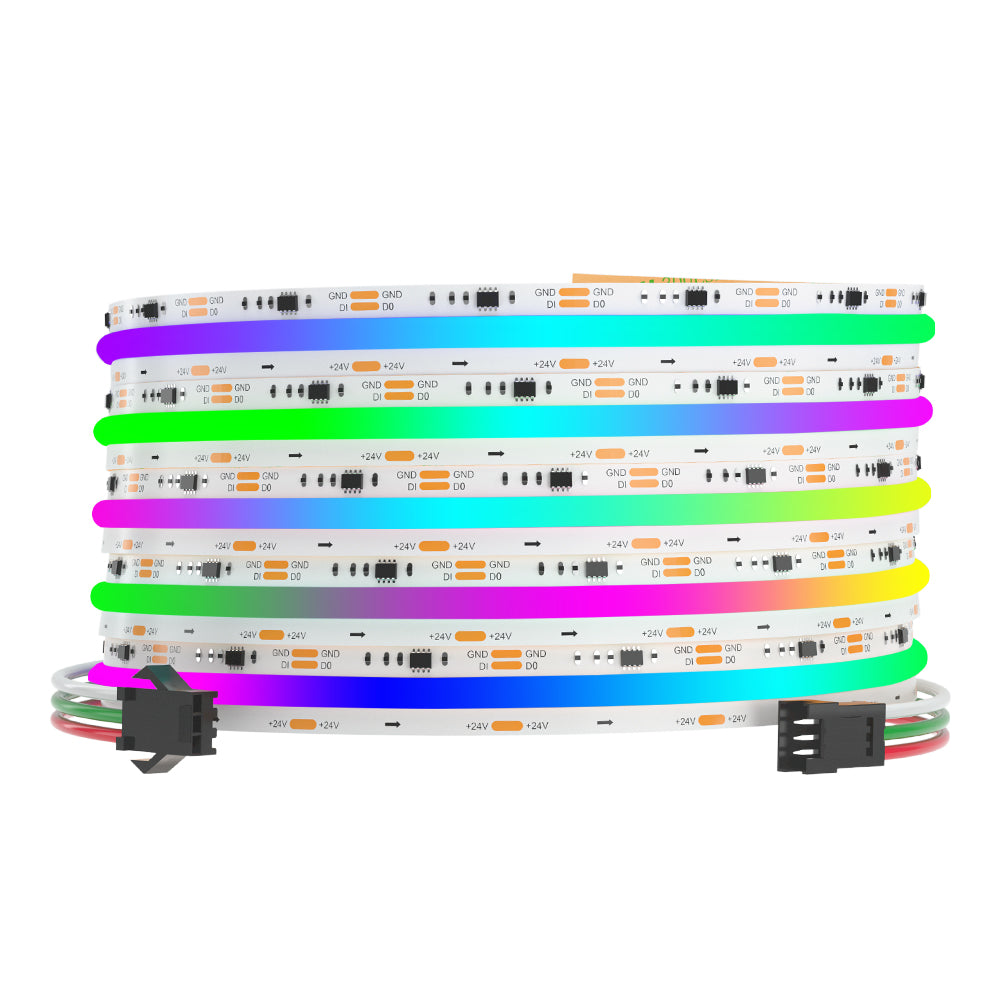

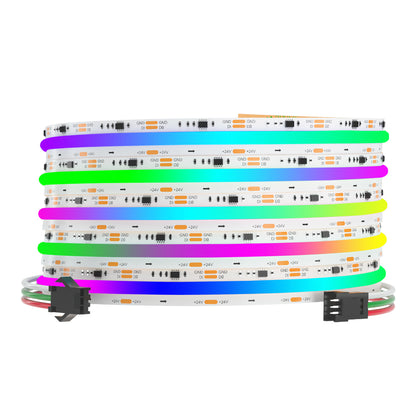

MALIIGAZA SPI RGB COB LED strip with WS2811 addressable control

High density addressable RGB COB LED strip with smooth continuous light

WS2811 SPI RGB COB LED strip for programmable dynamic lighting effects

720 LEDs per meter RGB COB LED strip with bright uniform illumination

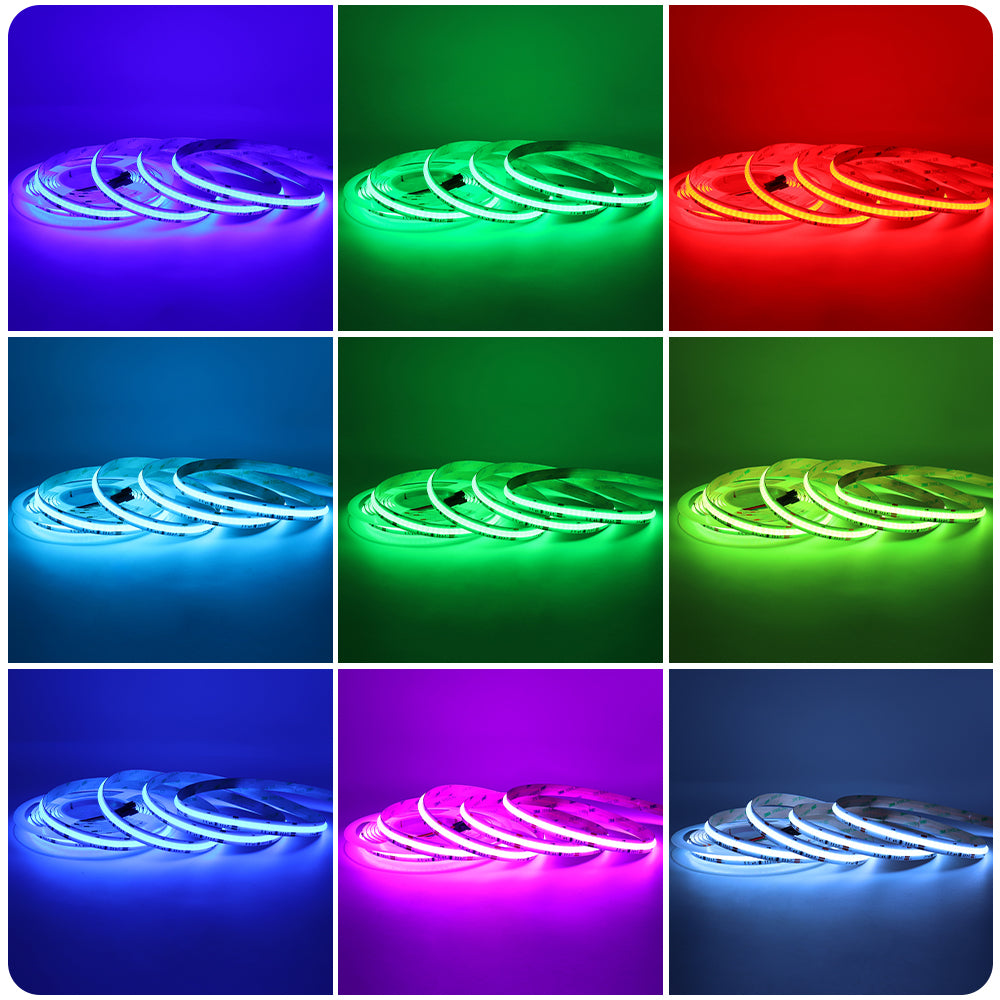

576 LEDs per meter addressable RGB COB LED strip for indoor lighting

420 LEDs per meter 24V WS2811 RGB COB LED light strip

360 LEDs per meter narrow RGB COB LED strip for decorative lighting

12V and 24V SPI RGB COB LED strip voltage options

Addressable RGB COB LED strip with WS2811 IC and flowing light effects

Programmable RGB COB LED strip displaying colorful dynamic effects

High CRI RGB COB LED strip with soft and uniform color lighting

Flexible SPI RGB COB light strip for custom DIY lighting projects

Cuttable WS2811 addressable COB LED strip for customized installation

RGB COB LED strip with strong adhesive backing for easy installation

SPI RGB COB LED strip with 3 pin connectors for convenient extension

5 meter addressable RGB COB LED strip for bedroom ambient lighting

10 meter WS2811 RGB COB LED strip for large indoor lighting projects

RGB COB LED strip for bedroom cabinet kitchen and feature wall lighting

Smooth RGB COB light tape for modern home interior decoration

High density COB technology for continuous RGB lighting without visible dots

IP30 addressable RGB COB LED strip designed for dry indoor use

MALIIGAZA programmable SPI RGB COB strip for creative ambient lighting

WS2811 RGB COB LED strip for DIY smart home decorative lighting

Frequently Asked Questions

1. Is a power supply included with the SPI RGB COB LED strip?

No. The package contains the LED strip only. The DC power supply must be purchased separately.

2. Does this RGB COB strip include an LED controller?

No. A compatible SPI RGB controller must be purchased separately.

3. What controller should I use?

Use an SPI RGB LED controller compatible with WS2811-type programmable LED strips.

4. Can I connect this strip directly to AC 110V or 220V?

No. Never connect the strip directly to mains voltage. It requires the correct low-voltage DC power supply.

5. Can I use a 24V power supply with the 12V strip?

No. A 12V strip requires a DC 12V power supply. A 24V strip requires a DC 24V power supply.

6. How much power supply capacity should I choose?

Calculate the theoretical strip wattage and choose a power supply with approximately 1.5 times that capacity.

7. Is this an addressable RGB COB LED strip?

Yes. It uses WS2811 IC control and supports programmable RGB effects with a compatible SPI controller.

8. Can the strip display static colors and flowing effects?

Yes. A suitable SPI controller can provide static RGB colors and programmable dynamic lighting effects.

9. What is the difference between 360, 420, 576, and 720 LEDs/m?

They differ in LED density, strip width, IC quantity, power requirements, and cutting interval. The 720 LEDs/m model is the premium high-density option.

10. Which version provides the smoothest light?

The 720 LEDs/m version has the highest LED density in this product family and is recommended when maximum light continuity is a priority.

11. Can I cut the RGB COB LED strip?

Yes. The minimum cutting interval is 50mm for 720 LEDs/m, 62.5mm for 576 LEDs/m, and 100mm for the 420 and 360 LEDs/m models.

12. Is this LED strip waterproof?

No. The supplied specification is IP30, so the strip is intended for dry indoor applications.

13. Can I install it in a bedroom or kitchen?

Yes, it is suitable for dry indoor decorative applications including bedrooms, cabinets, kitchens, furniture, and feature walls.

14. Does the LED strip have adhesive backing?

Yes. The strip includes high-adhesion double-sided backing for installation on clean and smooth surfaces.

15. Can I power the strip while it is still on the reel?

No. Fully unroll the strip before powering it. Operating it tightly wound can prevent proper heat dissipation and may damage the strip.

16. Does this strip support Wi-Fi, Bluetooth, or voice control?

Those functions depend on the separate SPI RGB controller. The LED strip itself does not include wireless control hardware.

Build Your Own Dynamic COB Lighting Project

Choose the LED density, width, voltage, and length that match your project, then pair the strip with the correct SPI RGB controller and DC power supply.
