RGB Smart Motion Sensor Stair Light �Colorful, Smart & Effortless to Install

Transform your staircase into a vibrant, intelligent lighting feature with the MALIIGAZA RGB Smart Stair Light Kit. Featuring full-color RGB COB LED strips on every step, intelligent PIR motion sensing, and a revolutionary plug-in main line design �this is stair lighting reimagined. Vivid colors, smart automation, and an installation so clean it feels like magic.

Why Choose MALIIGAZA RGB?

• 🌈 Full RGB color on every step â€?each stair tread can display a different color for stunning ambiance
• 🔌 Main line plug-in design â€?one cable runs the whole staircase, each strip plugs in directly, no complex wiring
• 💡 576 LEDs/m premium RGB COB strip â€?ultra-dense, uniform light with no hotspots (competitors use cheap SMD or 320 LEDs/m)
• ☀ï¸?Daylight sensor included â€?lights stay off during the day automatically, saving energy
• 👣 True step-by-step dynamic lighting â€?each step activates sequentially for a premium flowing effect
• 📦 Everything included â€?strips, controller, power supply, sensors, clips and all accessories in one kit

Key Features

🔌 Main Line Design â€?The Easiest Stair Light Installation Ever

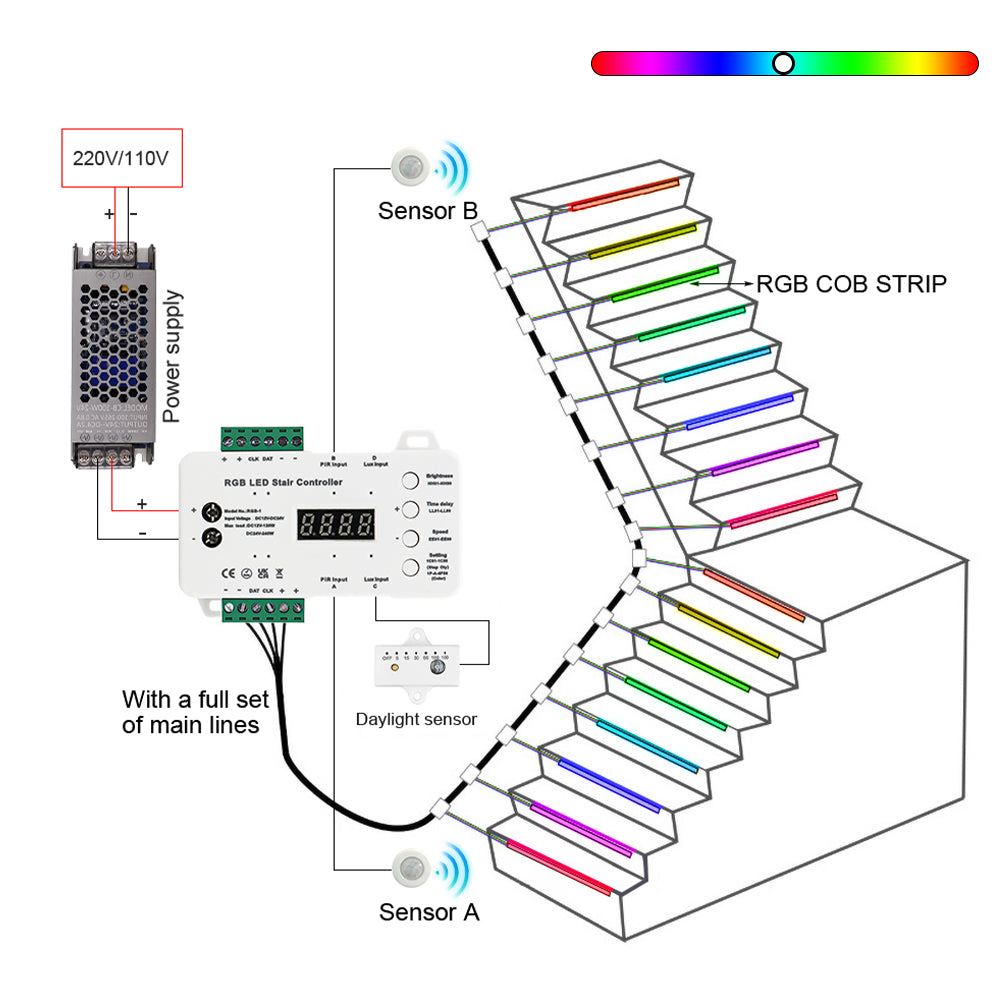

Forget running individual wires to every single step. The MALIIGAZA main line system works differently: one main line cable mounts along the side of your staircase, and each RGB LED strip simply plugs directly into it. That's it.

• No complex wiring per step
• Cleaner, more professional finish
• Faster setup â€?most installations done in under an hour
• Easy to maintain or replace individual strips
• Extendable at corners using a 4-pin extension cable

⚠️ Before ordering: Main line module spacing is 35cm. Please measure your stair tread spacing. If spacing exceeds 35cm, extend the main line using a 4-pin cable at the corner.

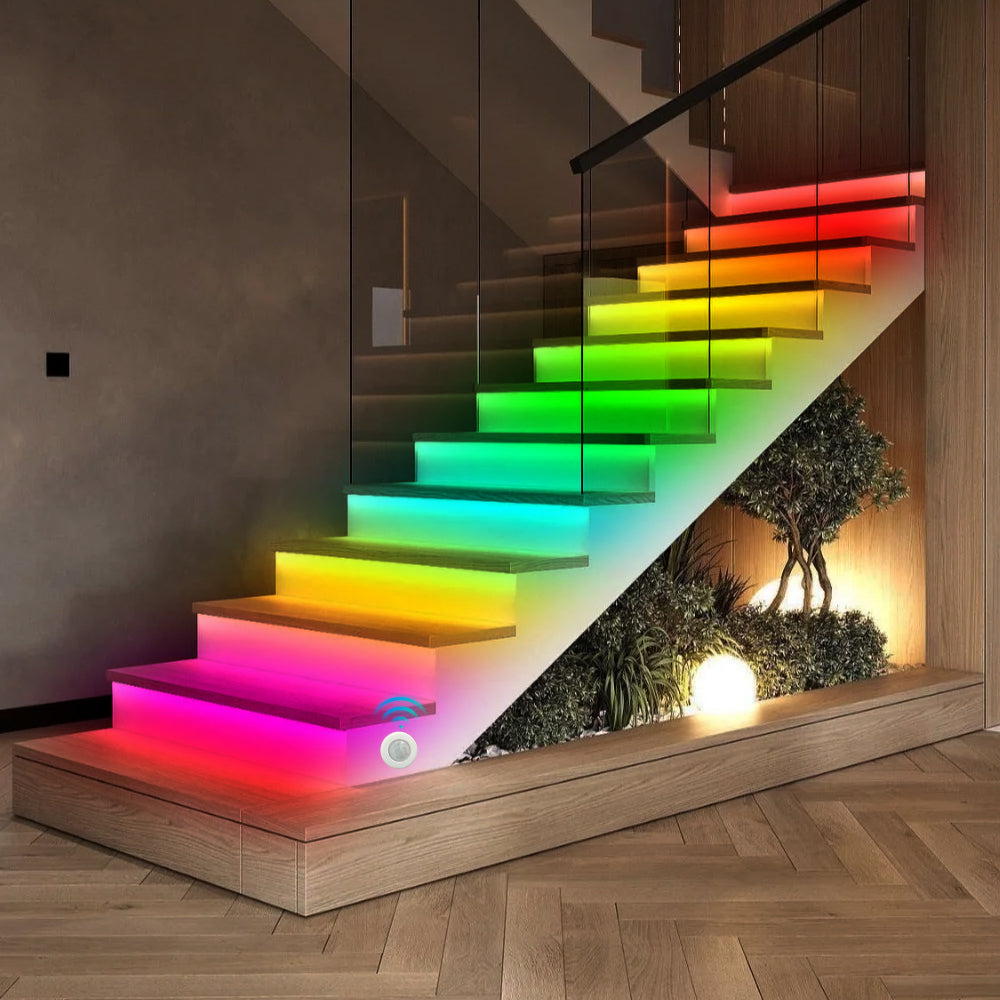

🌈 RGB Full-Color Lighting â€?Every Step, Every Color

This is where MALIIGAZA RGB truly shines. Unlike standard white stair lights, each step in this system uses a full RGB COB LED strip capable of displaying any color. The controller lets you assign different colors to each step and choose from multiple dynamic color modes:

• Rainbow flow â€?each step a different color, cycling through the spectrum
• Solid color â€?set all steps to your preferred color
• Breathing effect â€?colors fade in and out smoothly
• Step-by-step color wave â€?colors ripple up or down the staircase
• And more built-in modes selectable via remote

Whether you want a dramatic party atmosphere, a calm warm glow, or a cool modern aesthetic �the RGB system adapts to your mood and space.

🧠 PIR Motion Sensor â€?Auto On/Off

Two included PIR sensors detect movement and automatically activate the stair lights the moment you approach. When you leave, the lights switch off on their own. No switches, no fumbling in the dark �just seamless, hands-free lighting.

• Sensor sensitivity is adjustable
• 5m extension cable included for flexible sensor placement
• Works in both directions (top and bottom of staircase)

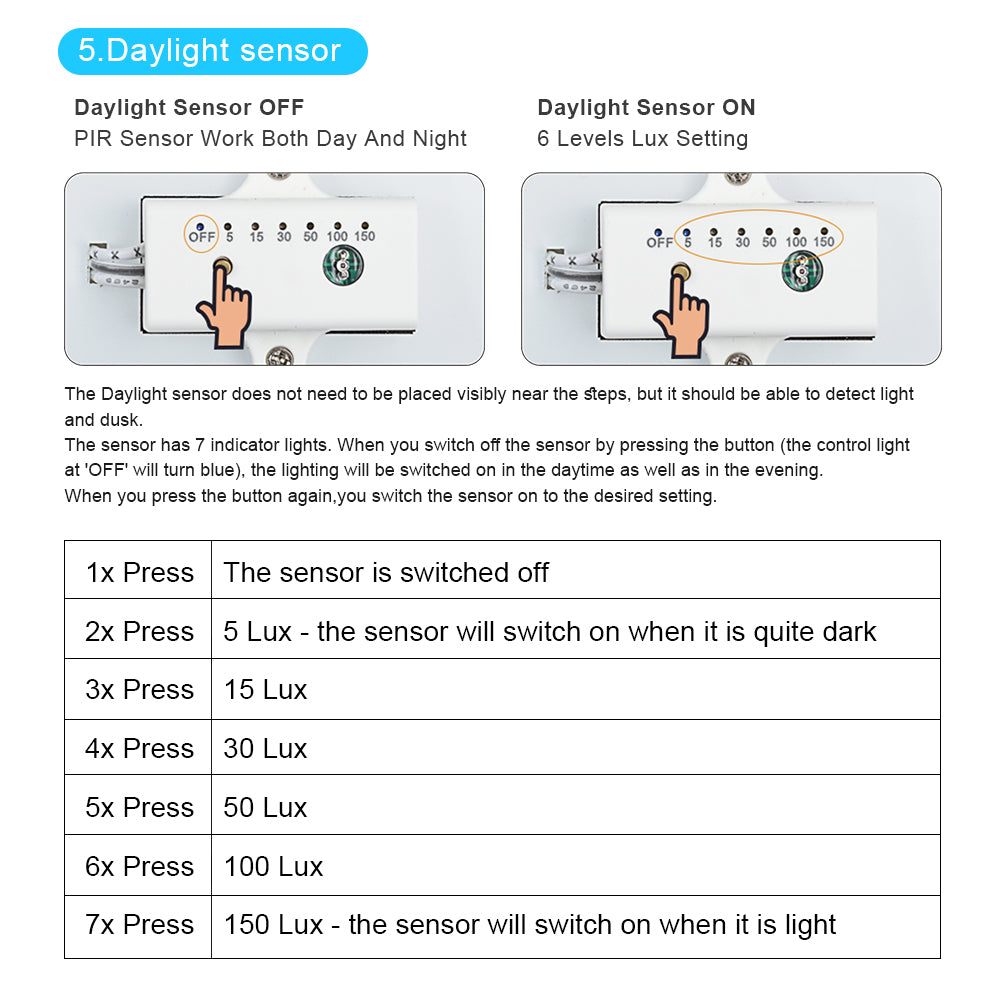

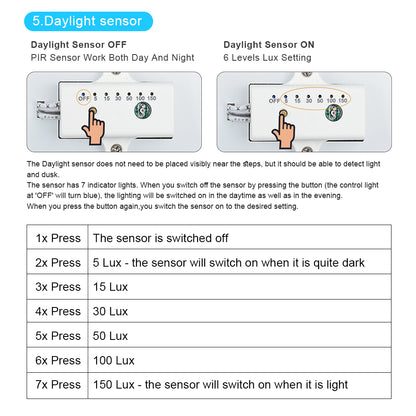

☀ï¸?Daylight Sensor â€?Smart & Energy Efficient

The integrated daylight sensor ensures the system only activates when it's actually dark. During the day or in well-lit rooms, the lights stay off automatically �no wasted energy, no unnecessary activation. Sensitivity is adjustable, or the sensor can be disabled entirely if you prefer 24/7 operation.

👣 Step-by-Step Dynamic Lighting â€?Multiple Modes

The controller offers multiple dynamic lighting modes with full customization:

• Step-by-step sequential activation â€?each step lights up one by one as you climb
• Multi-step activation â€?several steps light up together
• Adjustable lighting speed
• Adjustable hold time â€?up to 200 seconds
• Supports up to 30 steps

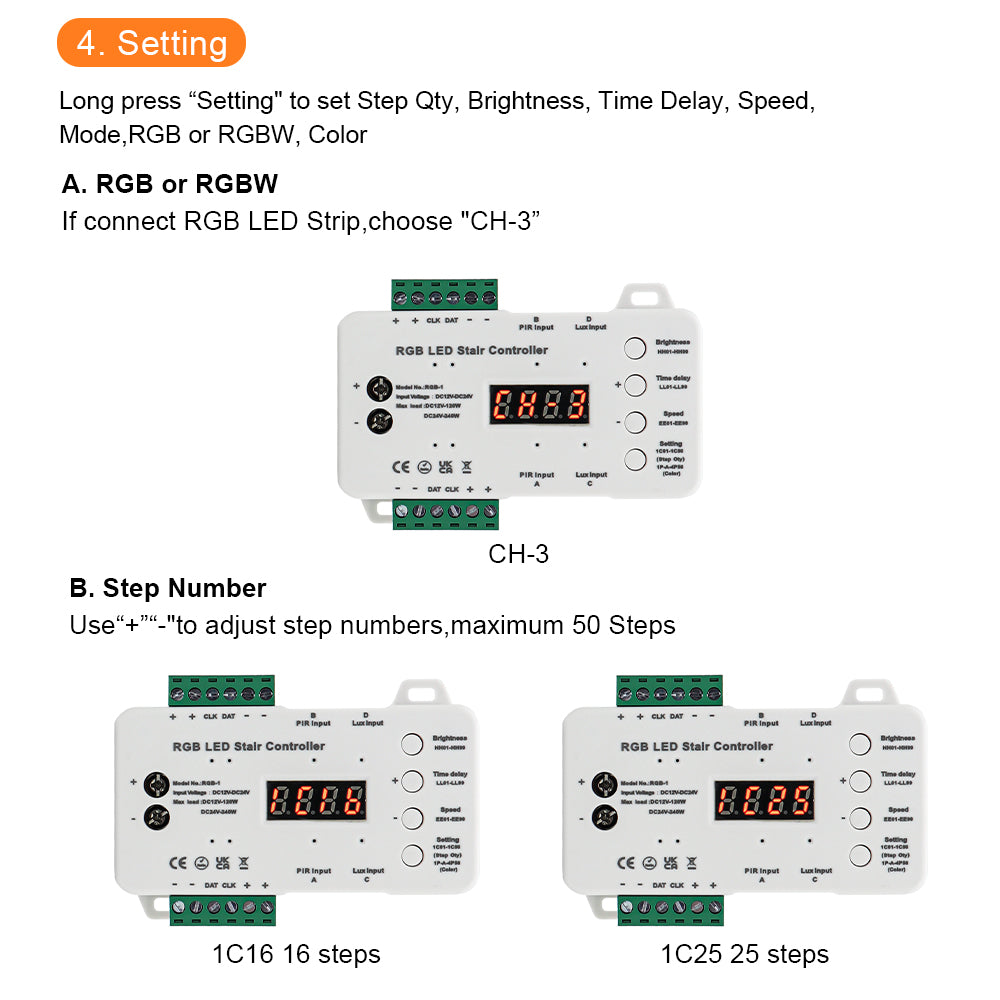

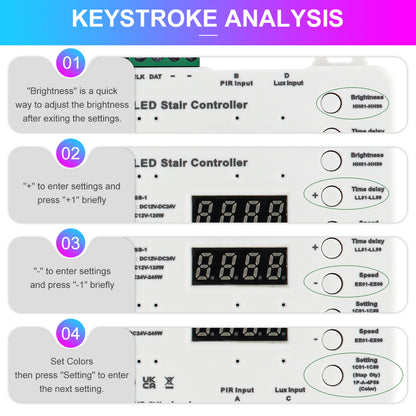

• All settings configurable via remote control or directly on the controller

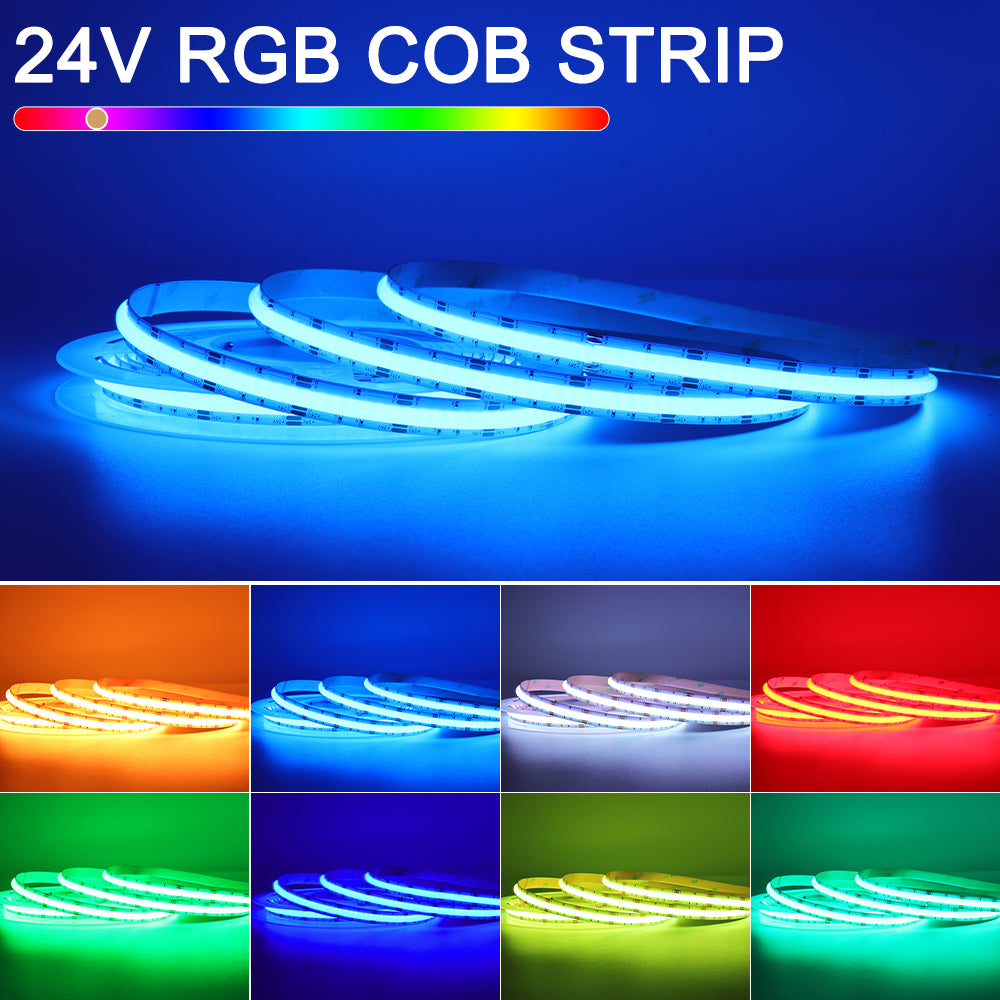

💡 Premium RGB COB LED Strip â€?576 LEDs/m, 90+ CRI

Every step gets a high-density RGB COB LED strip engineered for vivid, uniform color output.

• 576 LEDs/m â€?ultra-dense for smooth, hotspot-free illumination
• Brightness: 1000â€?300 LM/m (adjustable)
• CRI 90+ â€?colors look vivid and true-to-life
• Width: 8mm | Thickness: 2.2â€?.5mm
• Cuttable every 31.5mm for a perfect custom fit
• Strong self-adhesive backing â€?sticks firmly to clean, flat surfaces
• IP30 rated â€?suitable for indoor use
• 1m per strip | 4-pin 15cm LED cable

Technical Specifications

RGB COB LED Strip

• LED Type: RGB COB | Density: 576 LEDs/m
• Voltage: DC 24V | Power: 14W/m
• Brightness: 1000â€?300 LM/m | CRI: 90+
• Width: 8mm | Thickness: 2.2â€?.5mm
• Strip Length: 1m per piece | Cable: 4-pin, 15cm
• Cuttable: Yes (every 31.5mm) | Waterproof: IP30
• Adhesive: Strong self-adhesive tape

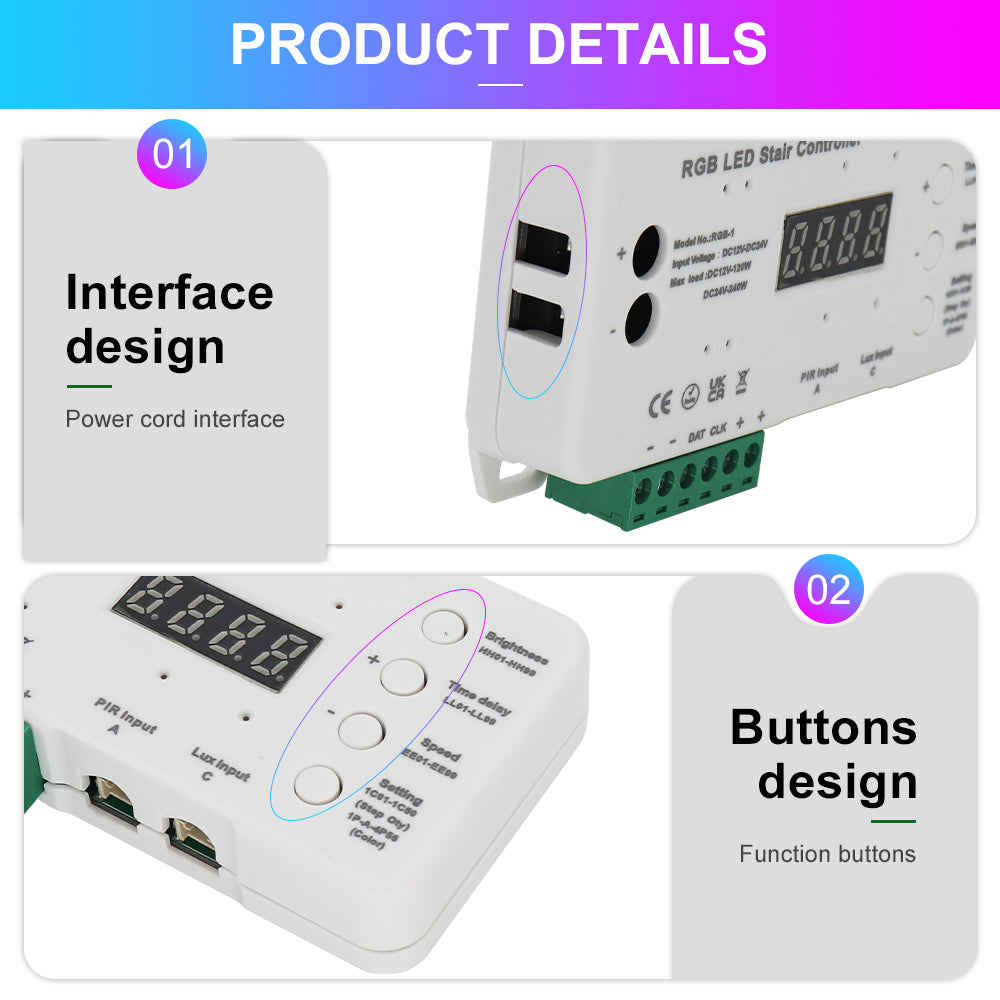

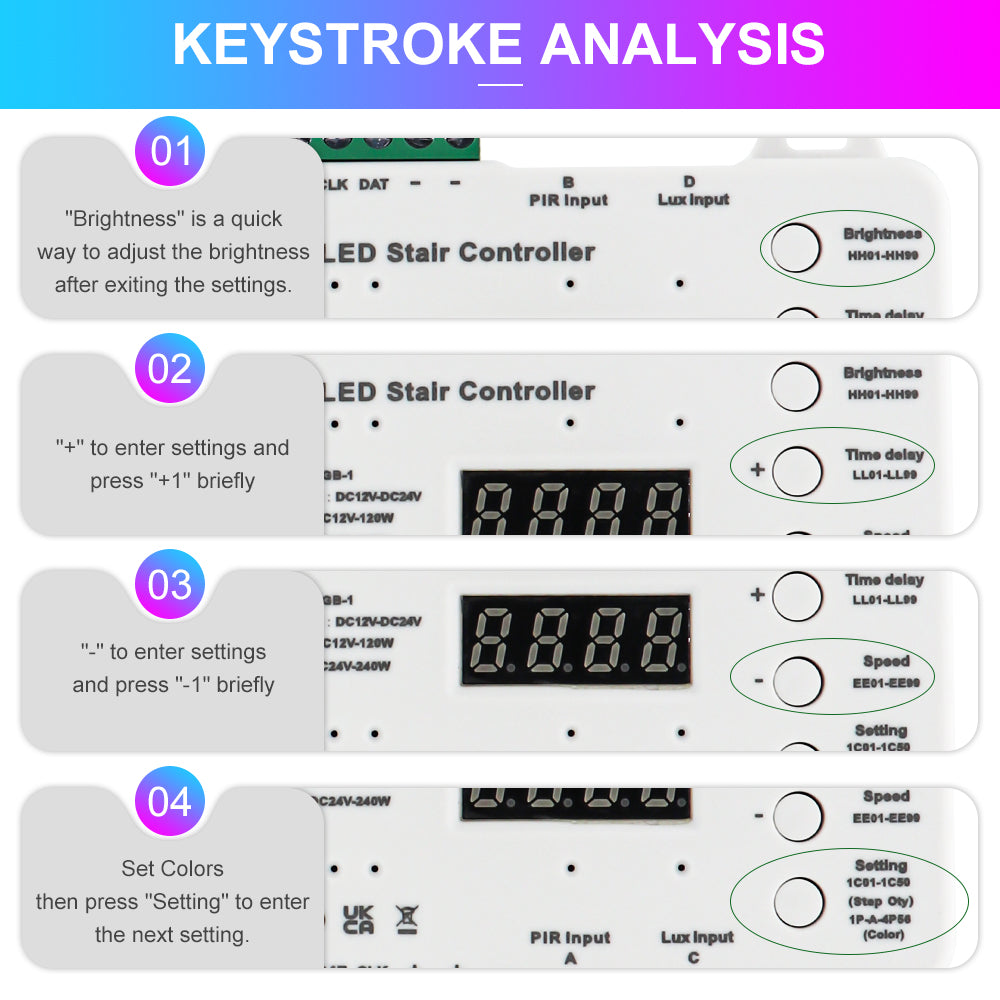

Controller (KLA-STEP-RGB)

• Multiple RGB dynamic lighting modes
• Per-step individual color control
• Supports up to 30 steps

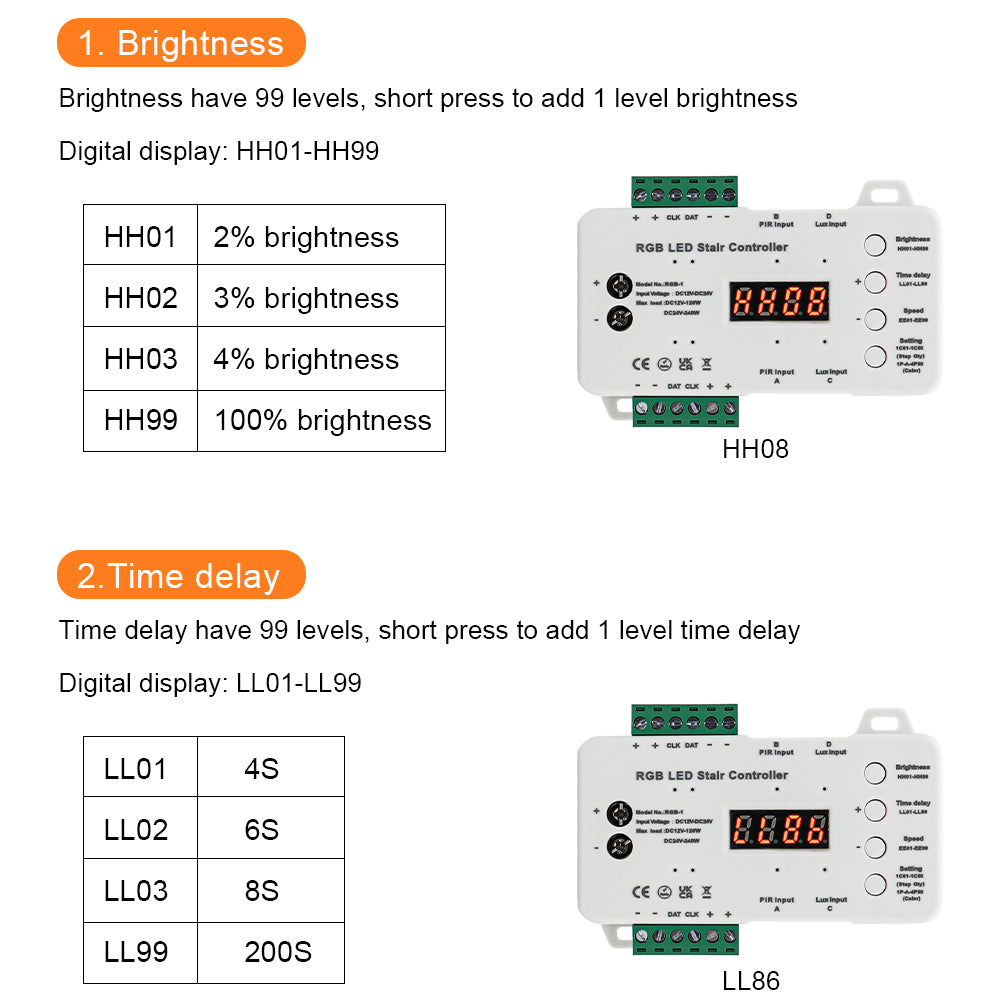

• Adjustable brightness, speed, and hold time (max 200s)
• Remote control + on-controller configuration

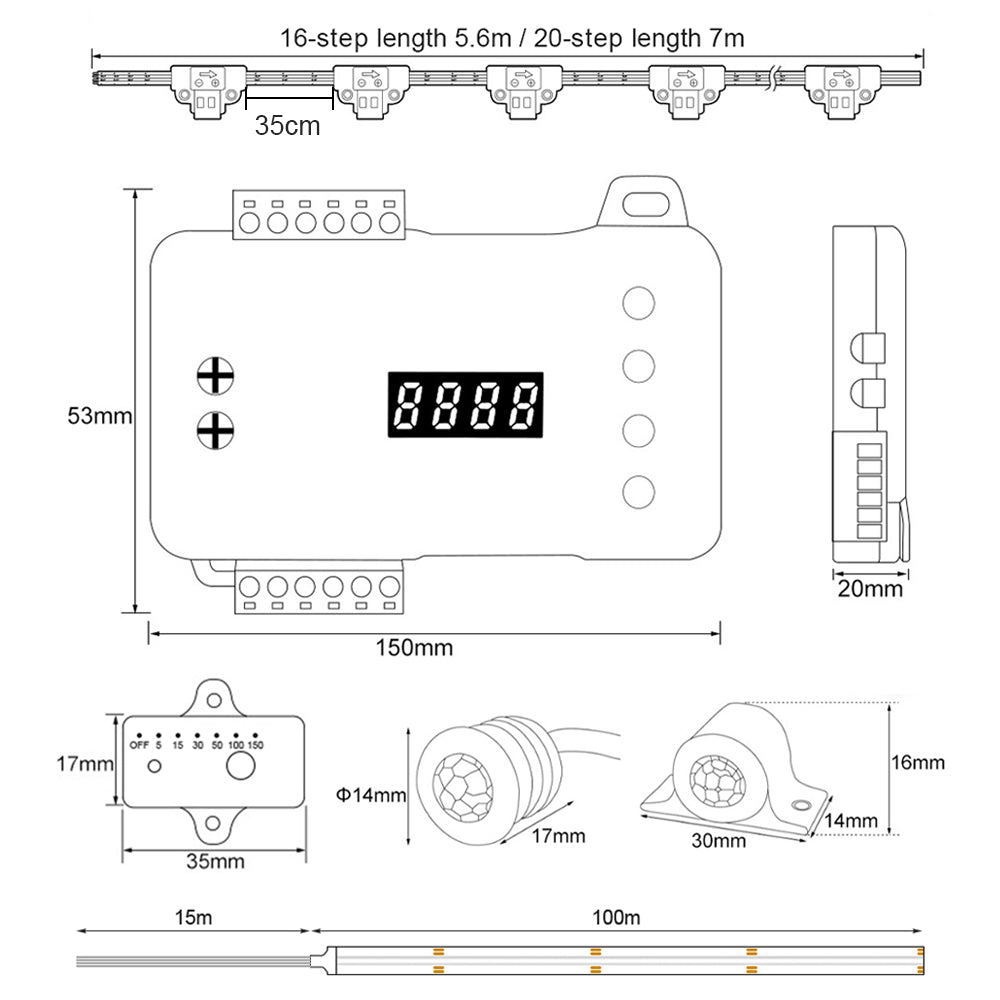

• Main line spacing: 35cm per module

Available Variants

• Steps: 5 to 28 steps â€?select the exact count matching your staircase
• Color: RGB Full Color
• Strip Length: 1m (3.28ft) per step

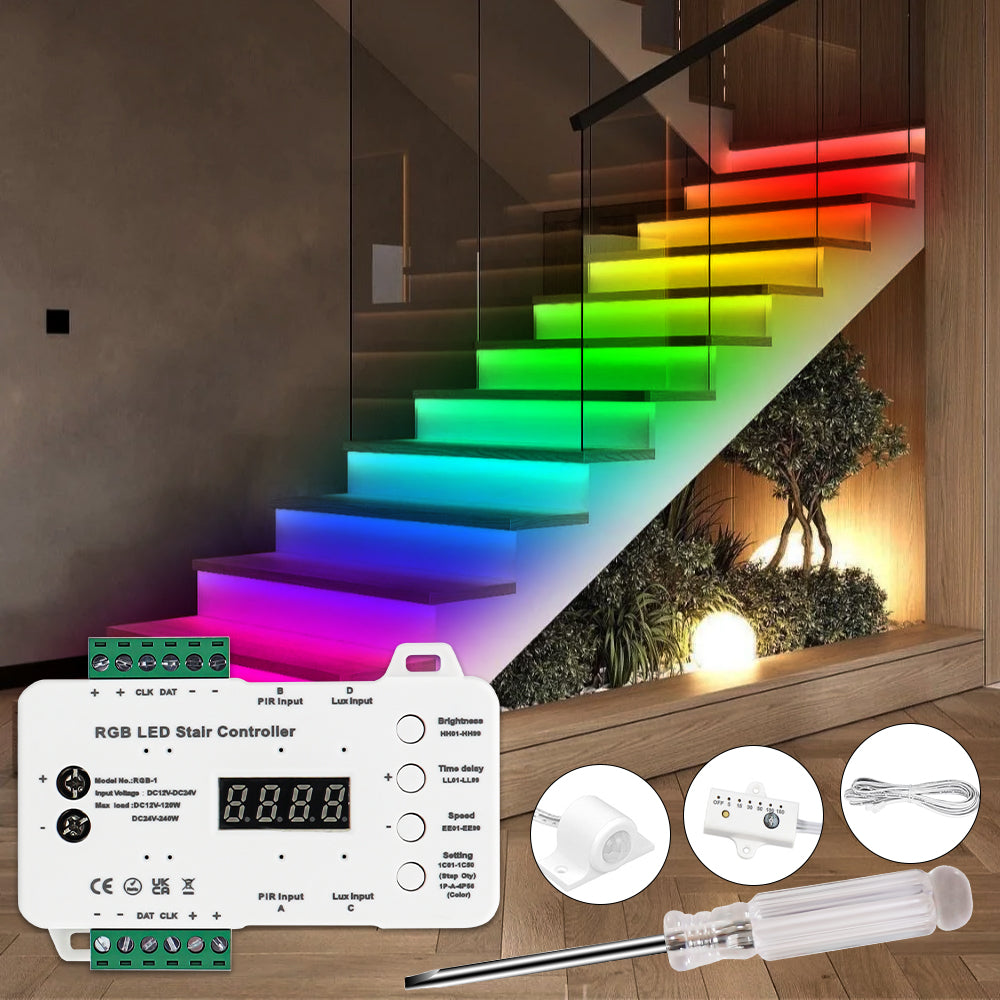

Package Includes

• 1× KLA-STEP-RGB Stair Light Controller
• 2× PIR Motion Sensors
• 1× Daylight Sensor
• 1× 5m PIR Sensor Extension Cable
• RGB COB LED Strips × (matching selected step count)
• Main Line Cable × (matching selected step count)
• 1× 24V Transformer Power Supply (US/EU/AU/UK plug assigned by destination)
• Mounting clips, screws, and all connection accessories

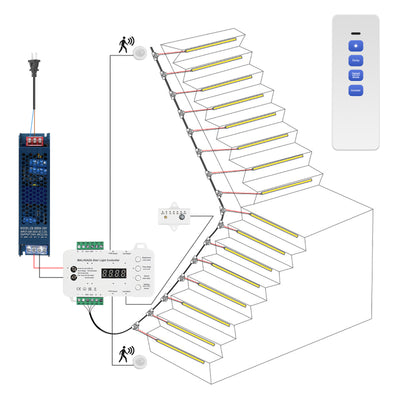

Installation Guide

1. Measure your stair tread spacing �must be �5cm for the standard main line.
2. Mount the main line cable along the staircase side �follow the arrow direction marked on the cable.
3. Clean stair surfaces thoroughly �flat, dry, and dust-free for best adhesion.
4. Attach RGB COB LED strips to each step using the self-adhesive backing.

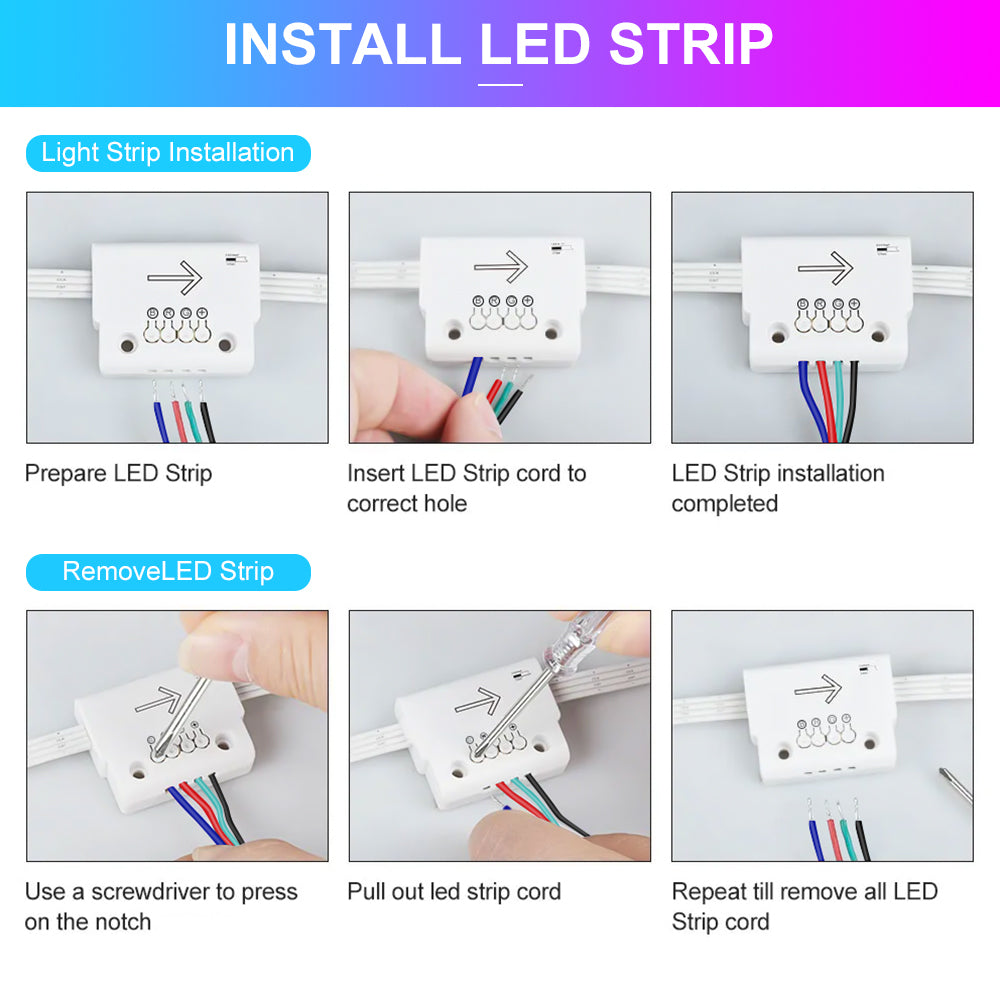

5. Plug each strip into the main line connector.
6. Install PIR sensors and daylight sensor at appropriate positions.
7. Connect the controller and 24V power supply.
8. Power on and configure RGB color modes, speed, and duration via remote or controller.

⚠️ Important Notes

• 🚫 Never connect directly to AC 110V/220V. Use only the supplied 24V transformer â€?direct connection will instantly damage the system.
• ⬆️ Install the main line following the arrow direction â€?reversed installation will prevent the system from working.
• 🔌 Install all LED strips before powering on. Never install or remove strips while powered.
• 📏 Stair spacing >35cm? Cut the main line and use a 4-pin extension cable to bridge the gap at corners.
• 🧹 Ensure mounting surfaces are clean and smooth before applying strips â€?dirty or uneven surfaces reduce adhesion.
• âš?PIR sensor cable is 1m; only one 5m extension cable is included per kit.
• âœ?Select the correct step count before ordering.

Frequently Asked Questions

Can each step show a different color? Yes �the controller supports individual color assignment per step with multiple built-in RGB modes.

Does it turn on automatically? Yes �PIR sensors activate the lights when motion is detected.

Will it stay off during the day? Yes �the daylight sensor prevents unnecessary activation in bright conditions.

Can I adjust brightness? Yes �brightness is adjustable via the controller or remote.

Can the strips be cut? Yes �cuttable every 31.5mm for a precise fit on any stair width.

How many steps are supported? Up to 30 steps (kit options: 5�8 steps).

Is a remote included? Yes �full remote control included for easy configuration.

Is it suitable for outdoor use? No �designed for indoor staircase use only (IP30).

My stair spacing is more than 35cm �can I still use this? Yes, but you'll need to cut the main line and add a 4-pin extension cable at the wider sections. Contact us if you need guidance.
