Smart Stair Lighting with Step-by-Step and RGB Side Flow Effects

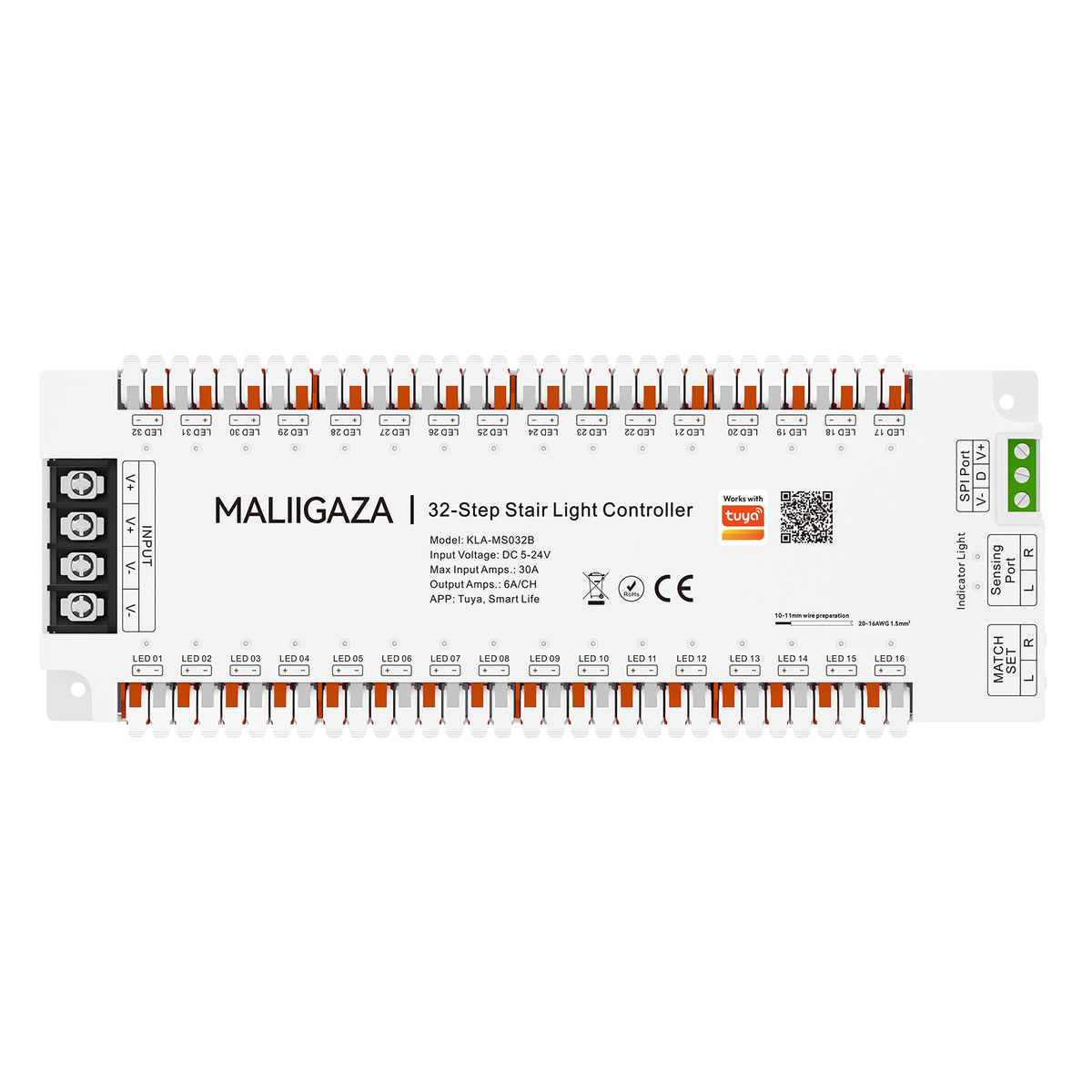

The MALIIGAZA MS032B is an intelligent indoor stair light controller designed for up to 32 steps. It combines motion-activated step lighting with optional RGB addressable side lighting, Tuya app control, voice control, adjustable dynamic effects, and optional MESH wireless accessories.
Turn an Ordinary Staircase into a Smarter Lighting Experience
Light each stair progressively as you move, while an optional RGB SPI strip along the handrail or wall creates a synchronized flowing light effect.
With two PIR motion sensors, the system can automatically detect whether you approach from the bottom or top of the staircase and start the lighting sequence from the corresponding direction.
Key Benefits
Step Lighting + RGB Side Flow in One Controller
MS032B can control two different lighting areas at the same time.
Step lighting: Supports compatible 12V or 24V single-color LED strips.

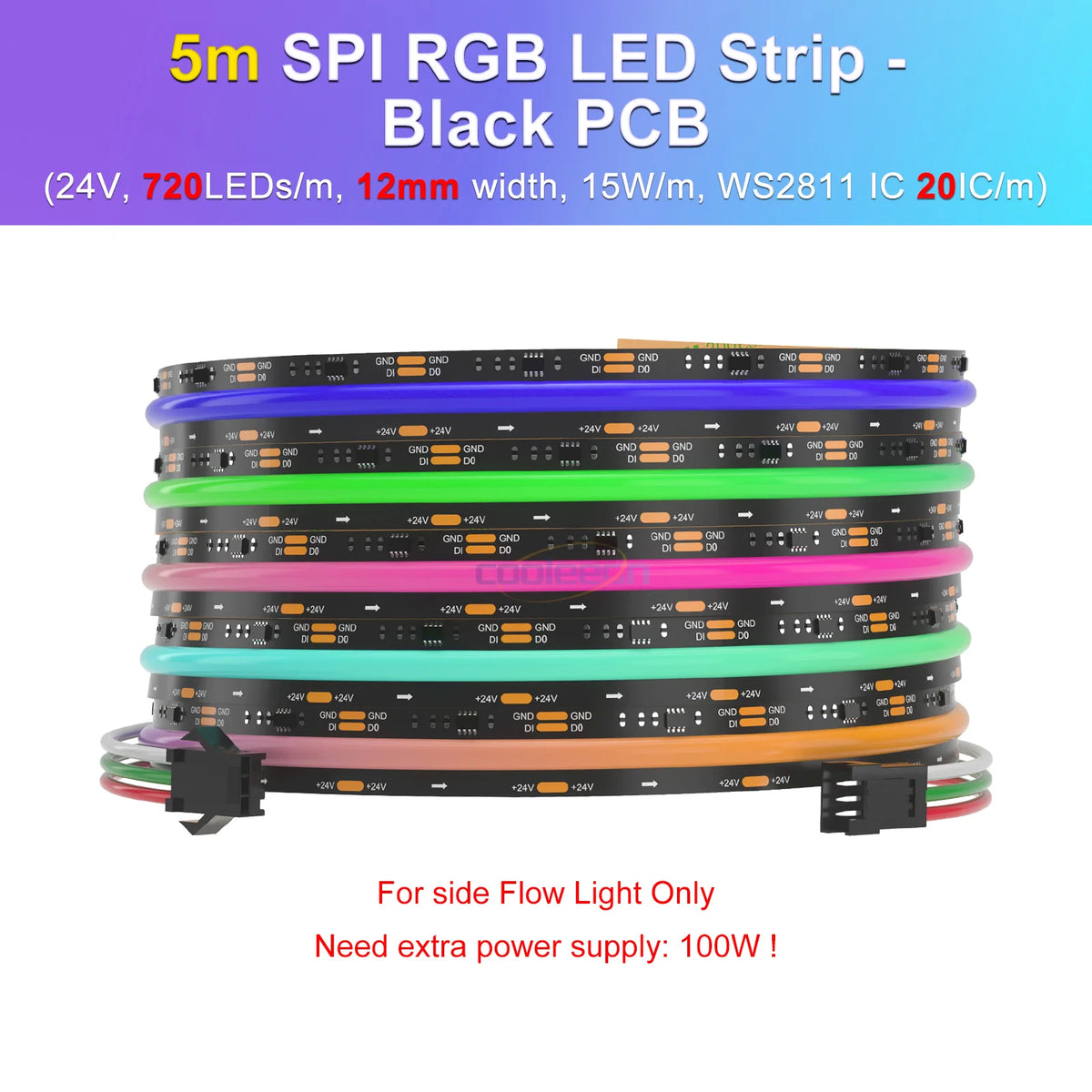

Side flow lighting: Supports compatible 12V or 24V RGB addressable SPI LED strips for dynamic flowing color effects.
When activated, the stair lights can illuminate progressively while the RGB strip installed along a handrail, staircase edge, or adjacent wall creates a synchronized flowing effect.
Motion Activated from Both Directions
Two PIR motion sensors are used for intelligent staircase detection.
When movement is detected at the bottom, the lighting sequence starts from the lower stairs and moves upward.
When movement is detected at the top, the lighting sequence starts from the upper stairs and moves downward.
9 Dynamic Lighting Modes
Customize how your staircase responds instead of being limited to a simple on/off effect.
- Choose from 9 different dynamic modes.
- Set step-by-step illumination.
- Configure multi-step lighting effects.
- Adjust animation speed.
- Adjust how long the lights remain illuminated.
- Use timer settings to manage operating periods.
Tuya Smart Home Control
Connect the controller to the Tuya app through Bluetooth for convenient control and lighting adjustments.
The controller also supports Alexa and Google Home voice control when configured within a compatible Tuya smart-home environment.
Optional MESH wireless panel switches and MESH wireless motion sensors can also be selected for expanded control options.
Important: No Built-In Daylight Sensor
MS032B does not detect ambient brightness. If you do not want the stair lighting to operate during daytime hours, use the timer function to define the desired operating period.
Convenient Push-In Wiring Terminals
The controller uses press-type terminal connections designed to make inserting and removing compatible wiring easier during installation, adjustment, or maintenance.
Ideal for Indoor Stair Lighting Projects
Create automatic lighting for everyday indoor stairs.
Build a customized step-lighting layout around your staircase.
Add smart lighting functionality during staircase remodeling.
Combine practical step lighting with decorative RGB side effects.
Technical Specifications
| Brand | MALIIGAZA |
| Model | MS032B |
| Application | Indoor stair lighting |
| Maximum Stair Steps | 32 steps |
| Step Outputs | 32 outputs |
| Maximum Current Per Step Output | 1A |
| Controller Input | DC 12V / 24V |
| Step Light Compatibility | 12V / 24V single-color LED strip |
| Side Flow Compatibility | 12V / 24V RGB addressable SPI LED strip |
| Maximum Addressable Pixels | 1021 pixels |
| Motion Sensors | 2 PIR sensors |
| Dynamic Modes | 9 modes |
| App | Tuya |
| App Connection | Bluetooth |
| Voice Control | Alexa / Google Home compatible |
| Optional Accessories | MESH wireless panel switch / MESH wireless sensor |
| Daylight Sensor | No |
| Waterproof | No |
Package and Variant Information
Different product variants may offer the controller, step-light strips in different light colors, RGB side-flow strips, or compatible wireless accessories.
Please check the exact variant selected before ordering. The base controller option does not include LED strips, power supply, wireless sensor, or wireless panel switch unless those items are specifically listed in the selected package.
Installation Guide
- Choose the correct DC system voltage. Use a 12V system with 12V LED strips, or a 24V system with 24V LED strips.
- Connect a suitable DC power supply. The controller must receive DC 12V or DC 24V power. Never connect it directly to AC mains voltage.
- Connect the step lights. Install compatible single-color 12V or 24V strips on the required stair outputs.
- Install the PIR sensors. Position one sensor at the bottom and one at the top of the staircase for directional triggering.
- Connect the optional RGB side-flow strip. Use only a compatible 12V or 24V RGB addressable SPI strip for the flowing side-light effect.
- Set the RGB pixel quantity correctly. If an addressable side strip is installed, configure the pixel number to match the actual number of pixels on the strip.
- Configure the lighting behavior. Select the desired dynamic mode, animation speed, lighting duration, and timer settings.
Troubleshooting Guide
Controller does not power on
Confirm that the controller is connected to a suitable DC 12V or DC 24V power supply and that the power supply voltage matches the lighting system.
RGB side-flow strip does not work
Confirm that the side strip is an RGB addressable SPI LED strip. A standard single-color strip cannot provide the addressable flowing effect.
RGB lighting stops at the wrong position
Check the pixel-number setting and make sure it matches the actual number of addressable pixels in the installed RGB SPI strip.
System operates during daytime
This model has no built-in daylight sensor. Use the timer function if you want to prevent operation during selected daytime hours.
Lighting starts from the wrong direction
Check the installation and position of the top and bottom PIR sensors so that each sensor corresponds to the intended staircase direction.
Important Safety and Compatibility Notes
- DC 12V / 24V only: Never connect the controller directly to AC 220V mains power. Direct AC connection can immediately damage the controller.
- Match system voltage: A 12V LED strip must be used with a 12V power supply. A 24V LED strip must be used with a 24V power supply.
- RGB side-flow requirement: Dynamic side lighting supports compatible RGB addressable SPI strips only. It does not support single-color strips for addressable flowing effects.
- Indoor use: The controller is not waterproof and is designed for indoor stair-lighting installations.
- Check your package: LED strips, power supply, wireless sensors, and wireless switches are not included with the base controller unless specifically included in the selected product variant.
- Pixel configuration: When using an RGB addressable strip, set the controller pixel number to match the actual strip pixel quantity for accurate lighting control.
Frequently Asked Questions
How many stairs can the MS032B controller support?
The controller supports up to 32 stair steps and provides 32 step-light output ports.
Does this smart stair light controller work with Tuya?
Yes. MS032B supports Bluetooth connection to the Tuya app for smart lighting control and configuration.
Does the controller support Alexa and Google Home?
Yes. Alexa and Google Home voice control are supported when the controller is configured within a compatible Tuya smart-home environment.
Can the stair lights turn on automatically when someone approaches?
Yes. Two PIR sensors can detect movement from the top or bottom of the staircase and trigger the lighting sequence from the corresponding direction.
Does MS032B have a daylight or LUX sensor?
No. This controller has no built-in ambient-light sensor. You can use its timer function to prevent operation during selected daytime periods.
What LED strips can I use for the stair steps?
The stair outputs support compatible 12V or 24V single-color LED strips. The LED-strip voltage must match the selected power-supply voltage.
What LED strip is required for the RGB side-flow effect?
Use a compatible 12V or 24V RGB addressable SPI LED strip. Standard single-color strips cannot create the addressable RGB flowing effect.
How many addressable RGB pixels can the controller support?
MS032B supports up to 1021 addressable pixels for the compatible RGB SPI side-lighting system.
Can I adjust the stair-light animation speed?
Yes. The controller provides 9 dynamic modes and allows adjustment of lighting speed, illumination behavior, and lighting duration.
Can several stairs illuminate at the same time?
Yes. The controller can be configured for step-by-step lighting or multi-step lighting behavior.
Can I connect the controller directly to 220V AC?
No. Never connect the controller directly to AC 220V. It requires a suitable DC 12V or DC 24V power supply.
Can I use a 12V LED strip with a 24V power supply?
No. The LED-strip voltage and power-supply voltage must match. Use 12V strips with 12V power and 24V strips with 24V power.
Is the MS032B controller waterproof?
No. MS032B is not waterproof and is intended for indoor smart staircase lighting applications.
Are the LED strips and power supply included?
Package contents depend on the selected variant. The base controller option does not include LED strips, the power supply, or optional wireless accessories unless specifically listed.
Why do I need to set the RGB pixel number?
The configured pixel number should match the actual pixel count of the RGB SPI strip so the controller can accurately manage the lighting sequence.
What certifications or rated LED lifespan does this product have?
Certification and LED lifespan information is not specified for this controller in the available product specifications. Check the applicable product documentation and local requirements before installation.
Build a Smarter Staircase Around Your Home
Combine automatic PIR activation, progressive step lighting, RGB side-flow effects, Tuya app control, and voice-control compatibility in one flexible indoor stair-lighting system.
