Transform Your Staircase Into a Smart Luxury Lighting Experience

The MALIIGAZA Intelligent Motion Sensor Stair Lighting Kit combines premium COB LED technology, smart PIR motion sensing, and elegant step-by-step illumination to create a modern staircase experience that feels both luxurious and practical.

Designed for modern homes, renovations, and DIY smart lighting projects, this easy-install stair lighting system eliminates complicated wiring by using a clean main line connection system.

Walk toward your stairs - the lights automatically activate step by step.
Leave the area - the lights smoothly turn off to save energy.

Why Homeowners Love This Smart Stair Lighting Kit

• Easy installation with organized main line connection system
• Premium COB LED strips with high brightness and smooth light output
• Step-by-step dynamic staircase lighting effects
• PIR motion activated automatic on/off control
• Built-in daylight sensor for energy-saving automation
• Supports up to 40 staircase steps
• Adjustable brightness, speed, and lighting duration
• Minimalist modern lighting aesthetic
• Strong adhesive backing for fast installation
• Ideal for smart homes, renovations, and luxury interiors

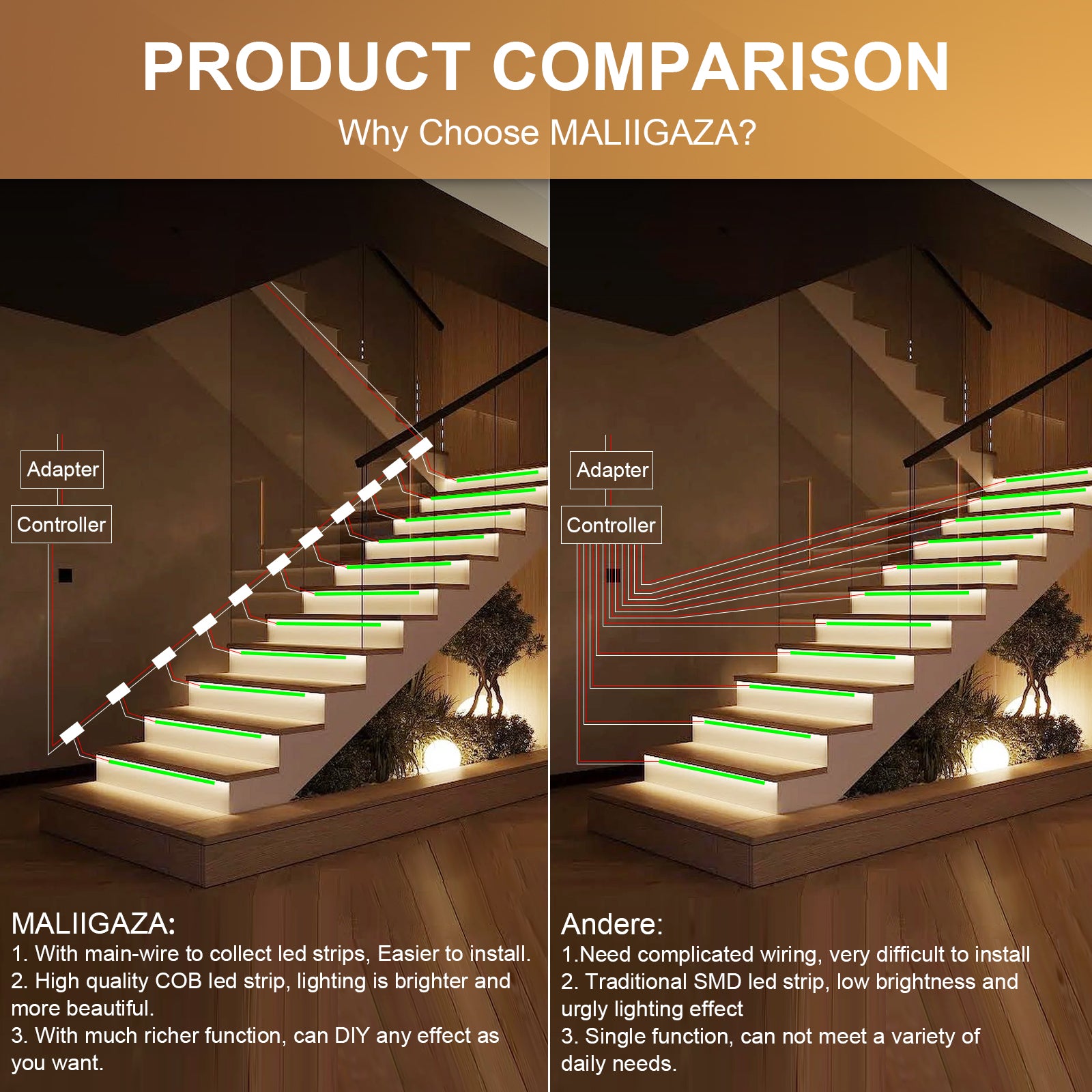

Modern Stair Lighting Without Complicated Wiring

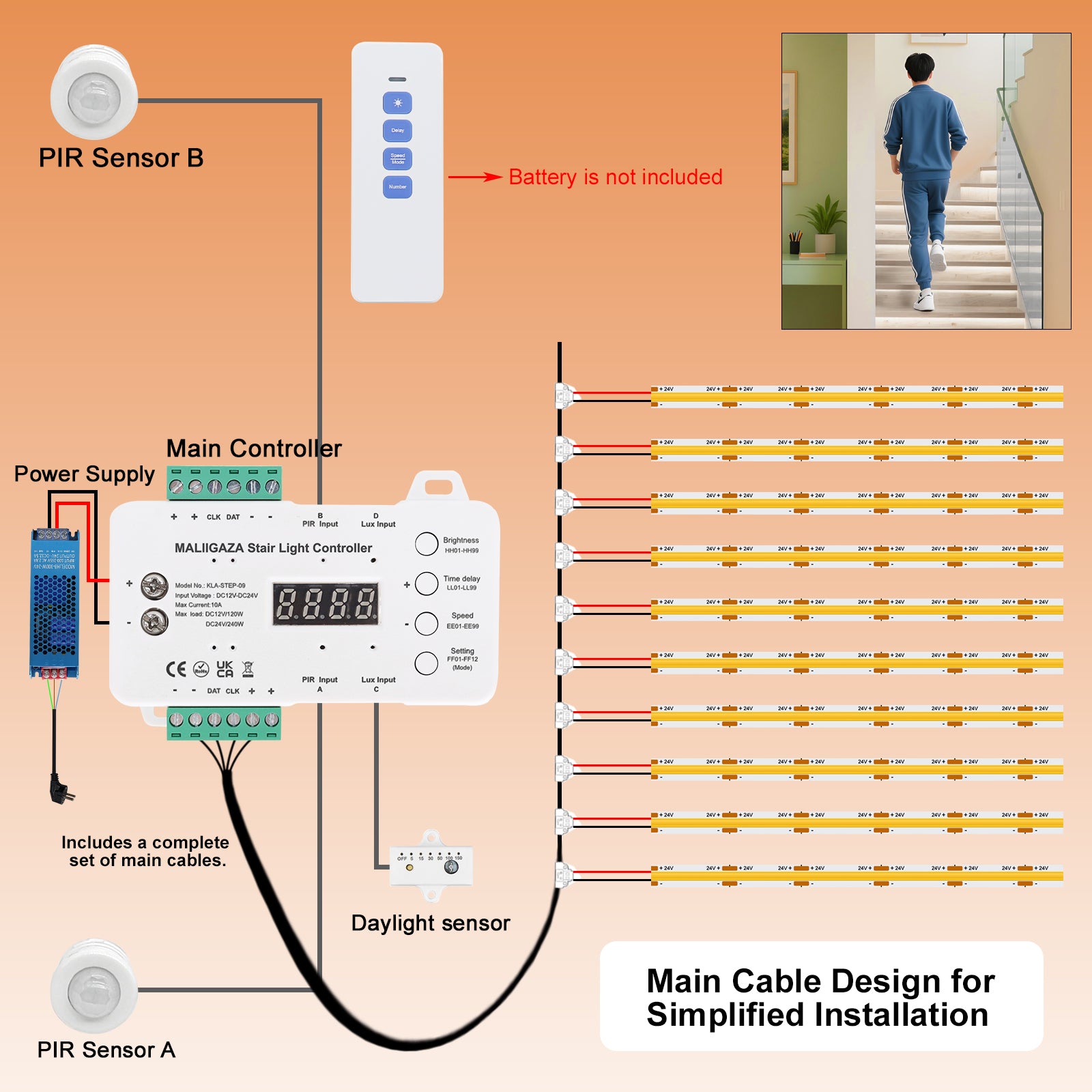

Unlike traditional stair lighting systems that require complex point-to-point wiring, this intelligent staircase lighting kit uses a dedicated main line cable installed along the side of the stairs.

Each COB LED strip plugs directly into the main line, creating a cleaner installation process that saves time, reduces cable clutter, and improves overall appearance.

Perfect for:

• DIY home upgrades
• Modern staircase renovations
• Smart home projects
• Luxury ambient lighting
• Night safety lighting
• Minimalist interior design

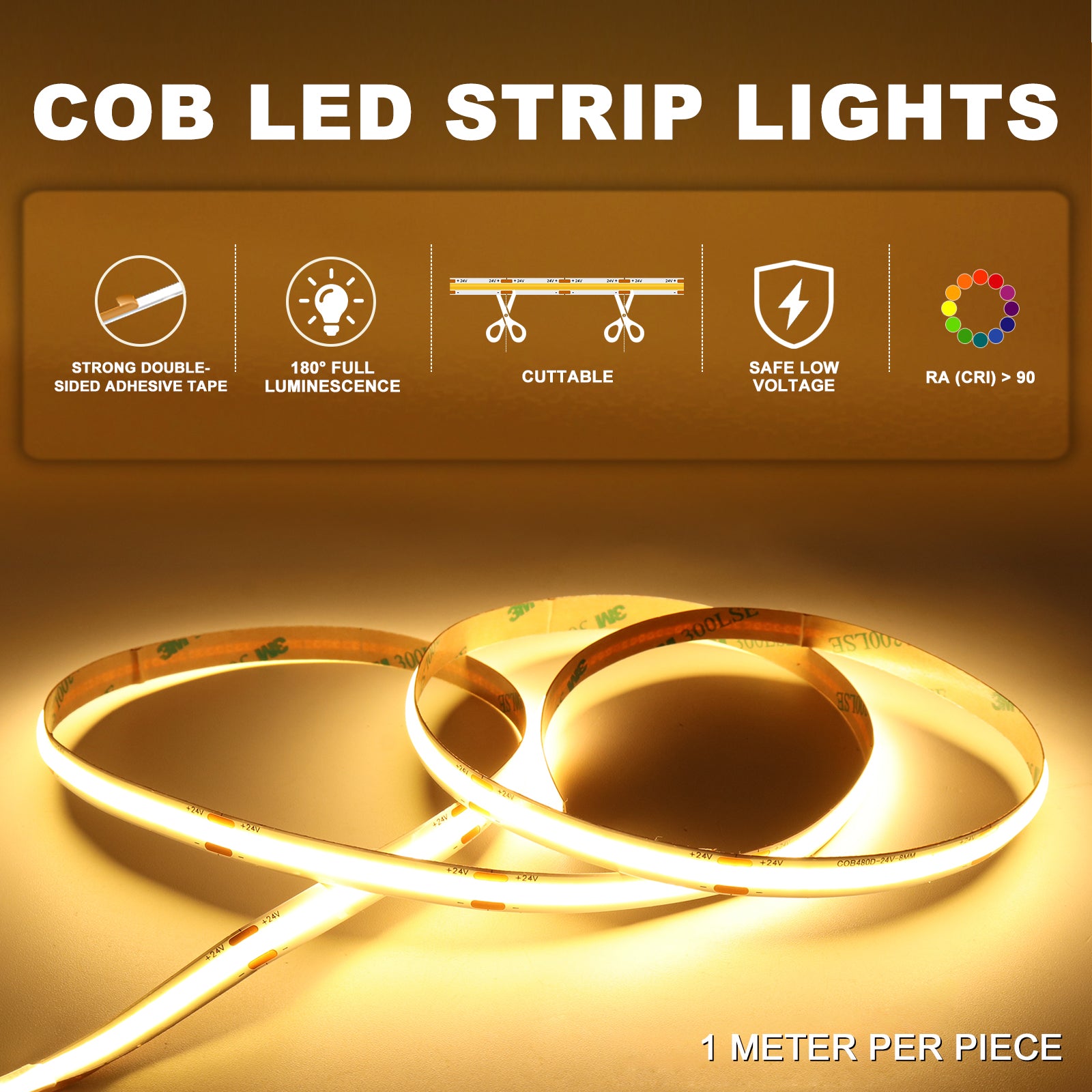

Premium COB LED Stair Lights

The included COB LED strips deliver continuous smooth illumination with no visible LED dots, creating a high-end lighting effect ideal for premium interiors.

• 480 LEDs per meter
• High CRI 90+ for natural color rendering
• 1000-1100 lumens per meter
• Soft uniform lighting output
• Strong adhesive backing
• Ultra-slim 8mm design
• Cuttable every 50mm

Available in 9 lighting colors:

• Warm White (3000K)
• Natural White (4000K)
• Cold White (6000K)
• Red
• Green
• Blue
• Ice Blue
• Pink
• Golden Yellow

Smart PIR Motion Sensor Automation

The intelligent motion sensor system automatically activates your stair lights when movement is detected.

The included daylight sensor prevents the lights from operating during daytime or in bright environments, helping reduce unnecessary power consumption.

Sensor settings can be customized based on your environment and preferences.

• Automatic motion detection
• Auto ON/OFF operation
• Adjustable light sensitivity
• Energy-saving daylight control
• Smooth step-by-step illumination effects

12 Dynamic Stair Lighting Modes

Customize your staircase lighting experience with multiple intelligent animation modes.

• Step-by-step lighting
• Multi-step illumination
• Dynamic flowing effects
• Adjustable animation speed
• Adjustable stay-on time
• Maximum lighting duration up to 200 seconds
• Adjustable stair quantity settings

The controller supports up to 40 steps depending on your selected configuration and main line setup.

Easy Control with Remote & Controller Panel

Easily customize your lighting settings using the included remote control or directly through the controller interface.

• Brightness adjustment
• Lighting speed adjustment
• Mode switching
• Sensor settings
• Timing adjustment
• Step quantity configuration

Application Scenarios

• Indoor staircase lighting
• Modern smart homes
• Villa staircases
• Luxury apartments
• Night safety illumination
• Minimalist interior projects
• Home renovation lighting
• DIY smart lighting systems

Technical Specifications

COB LED Strip Specifications

• LED Type: COB LED Strip
• LED Density: 480 LEDs/m
• Voltage: DC 24V
• Power: 10W/m
• Brightness: 1000¨C1100LM/m
• CRI: 90+
• Strip Width: 8mm
• Thickness: 2.2-2.5mm
• Waterproof Rating: IP30
• Cuttable: Every 50mm
• Adhesive: Strong backing tape
• Strip Length Options: 1m
• LED Cable Length: 20cm

Controller Features

• 12 dynamic lighting modes
• Supports up to 40 steps
• Adjustable brightness
• Adjustable lighting speed
• Adjustable lighting duration
• PIR motion sensor compatible
• Remote control included

Available Variants

• Step Options: 5-30 Steps
• LED Colors: 9 Colors Available
• Strip Lengths: 1m
• Power Plug Types: US / EU / UK / AU

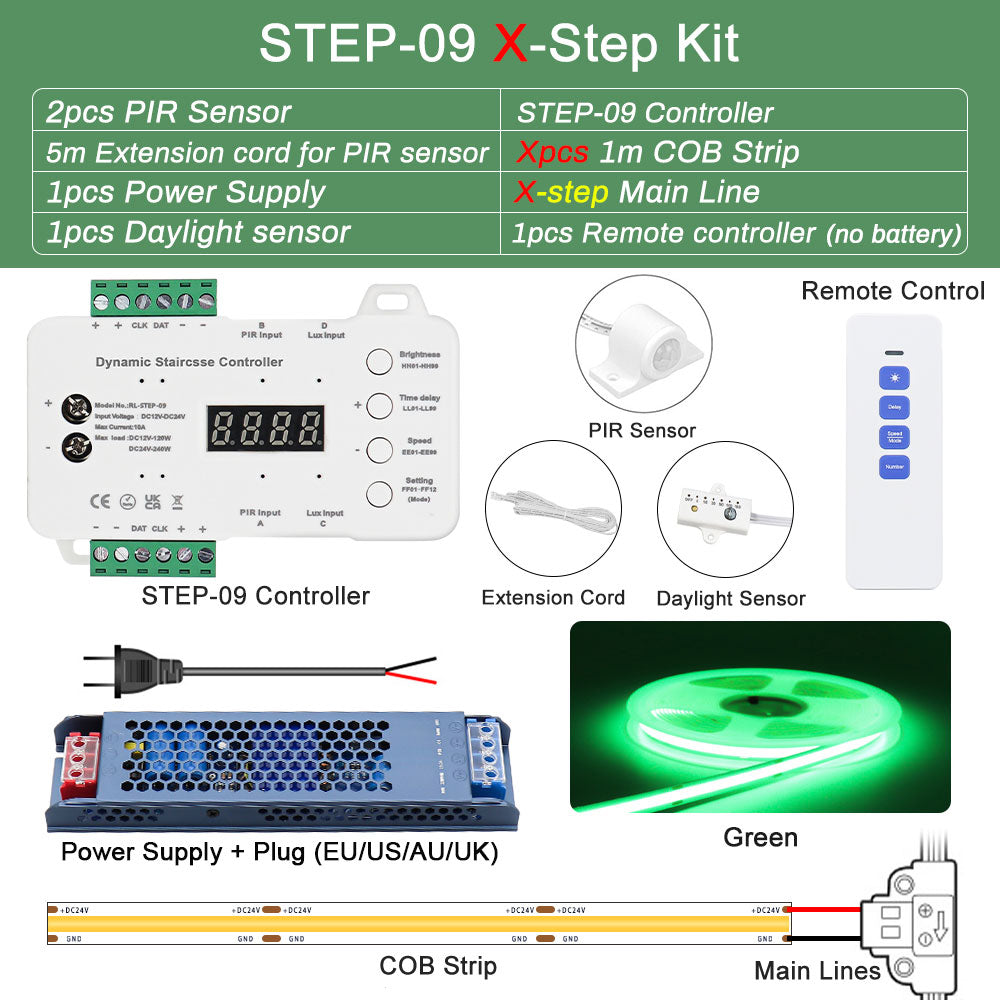

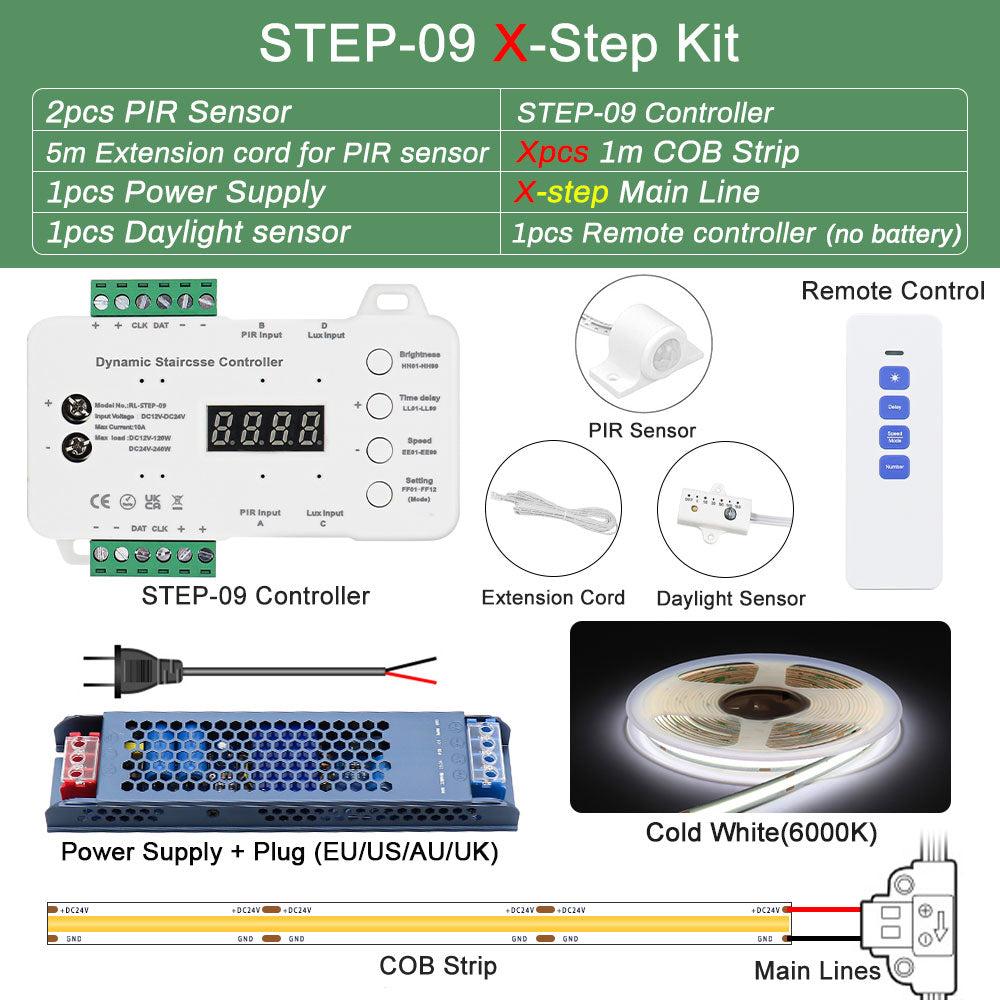

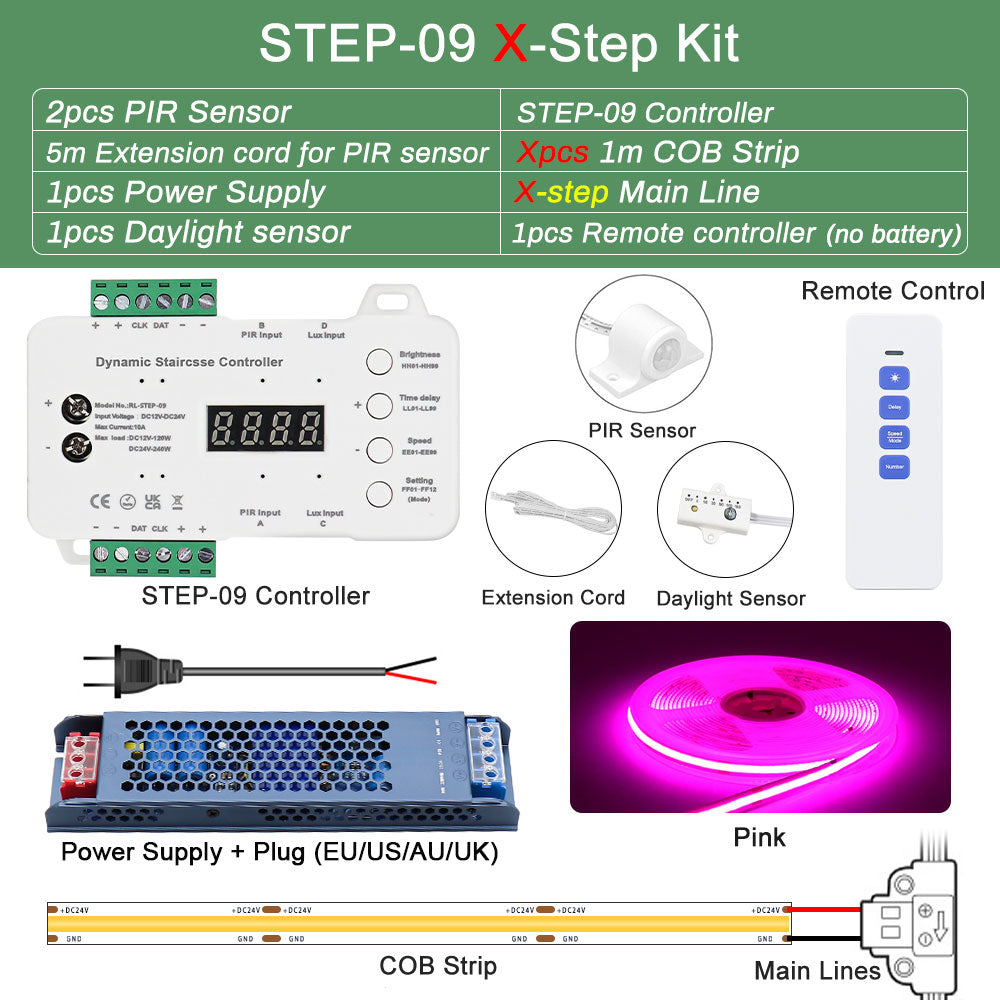

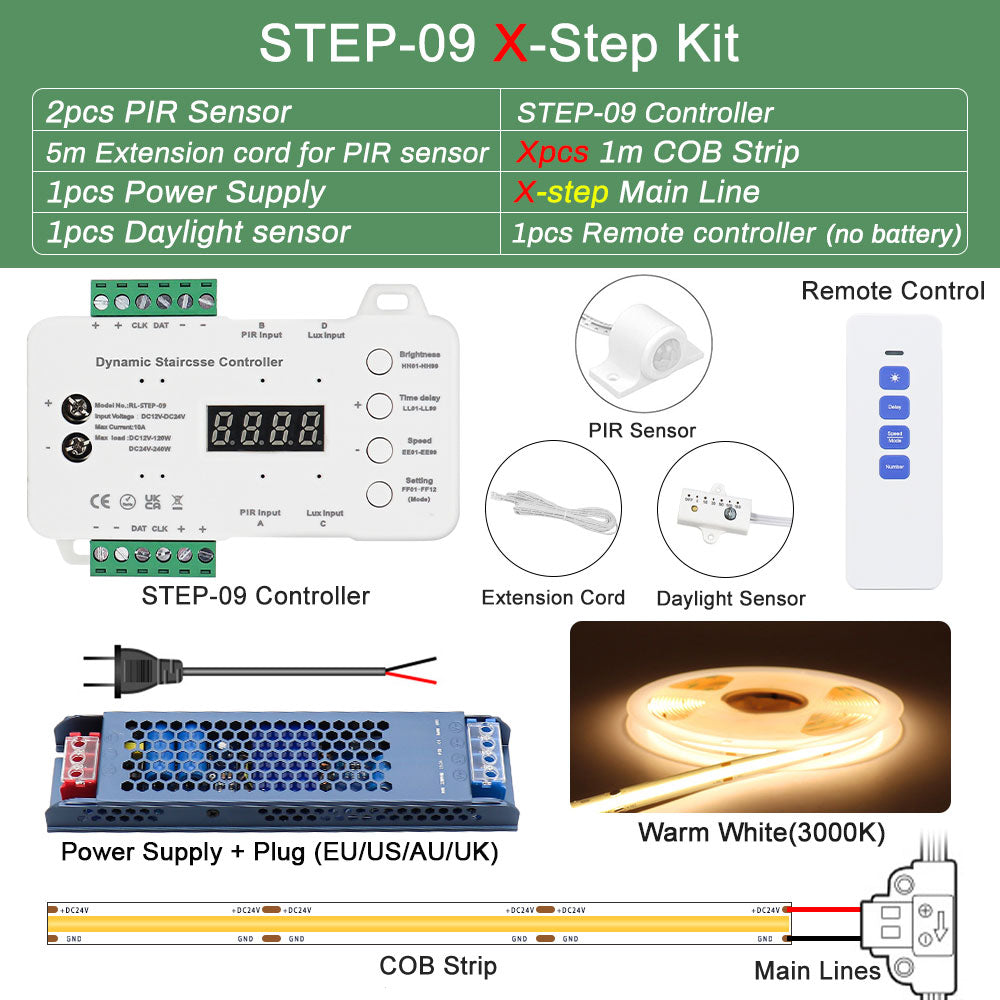

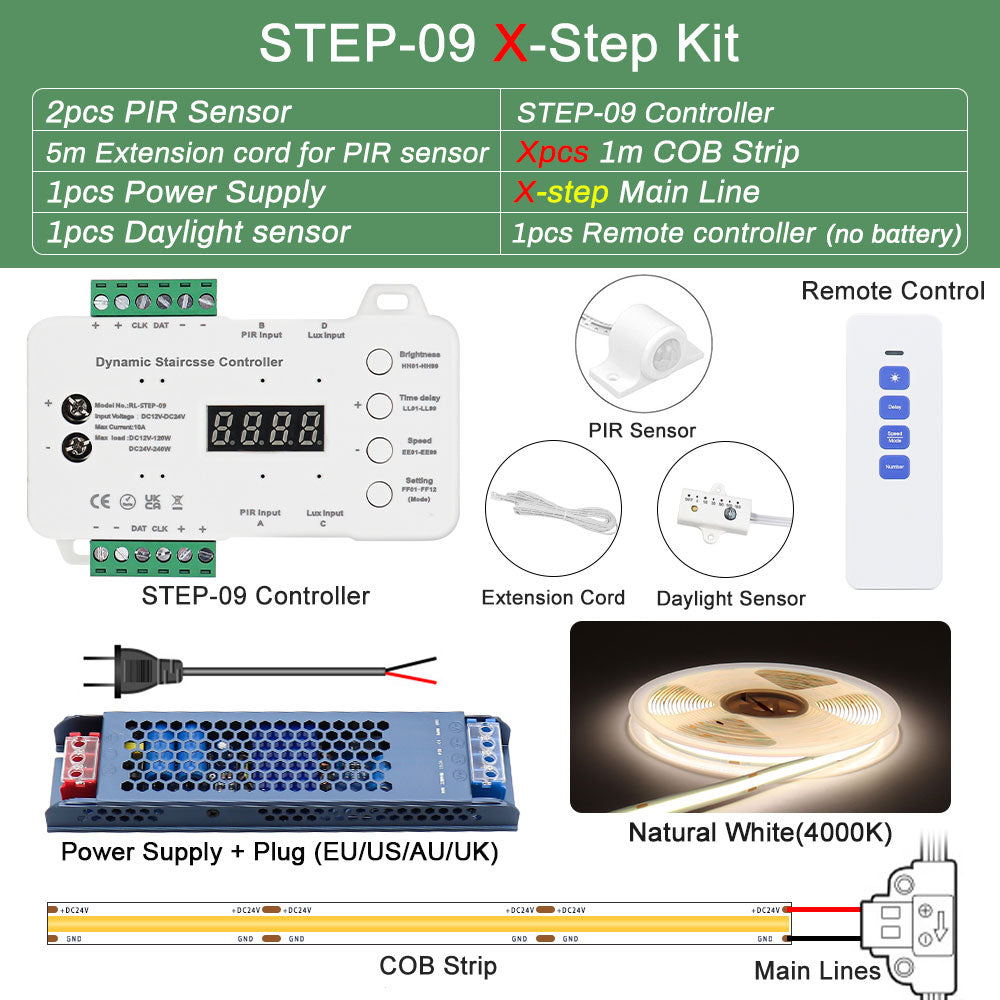

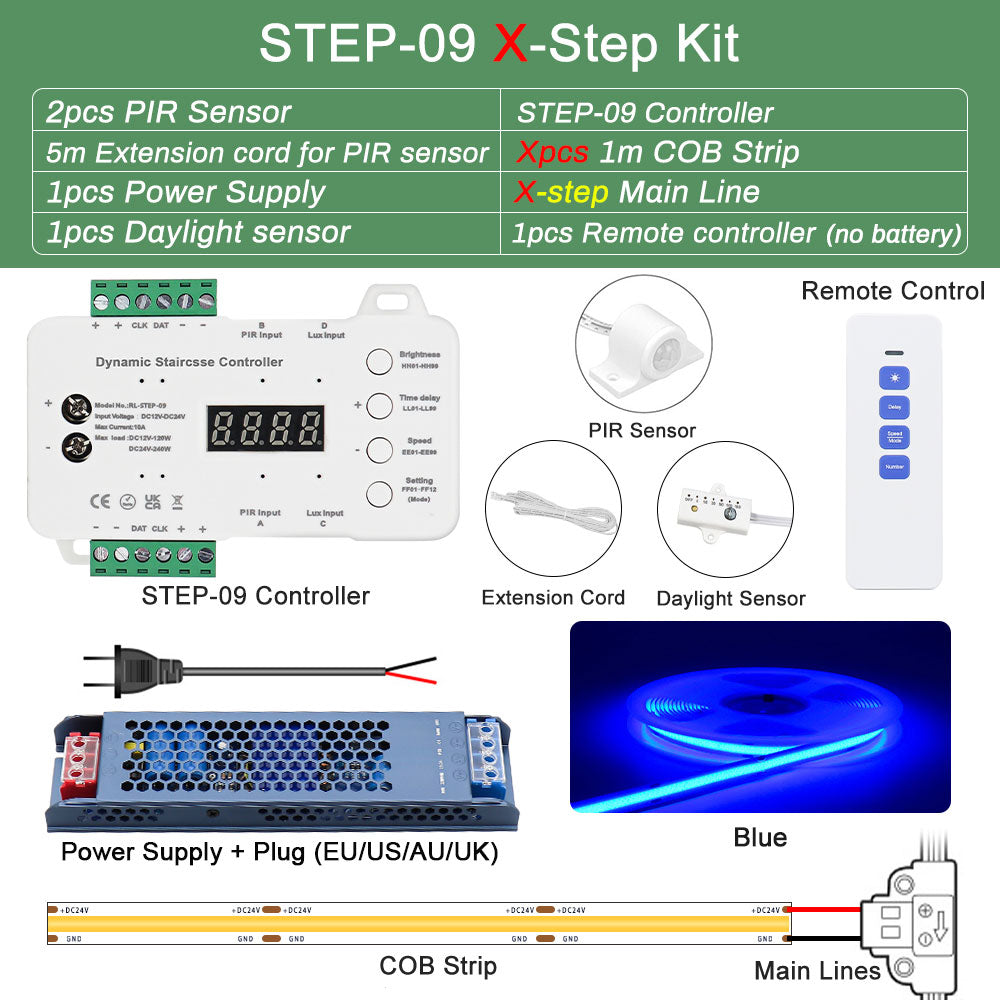

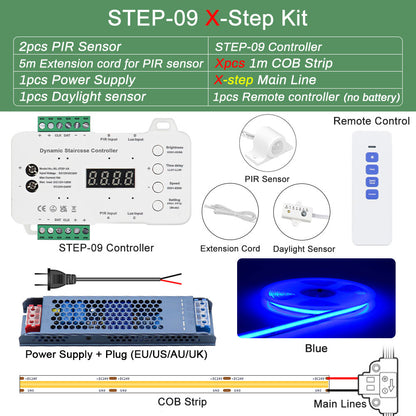

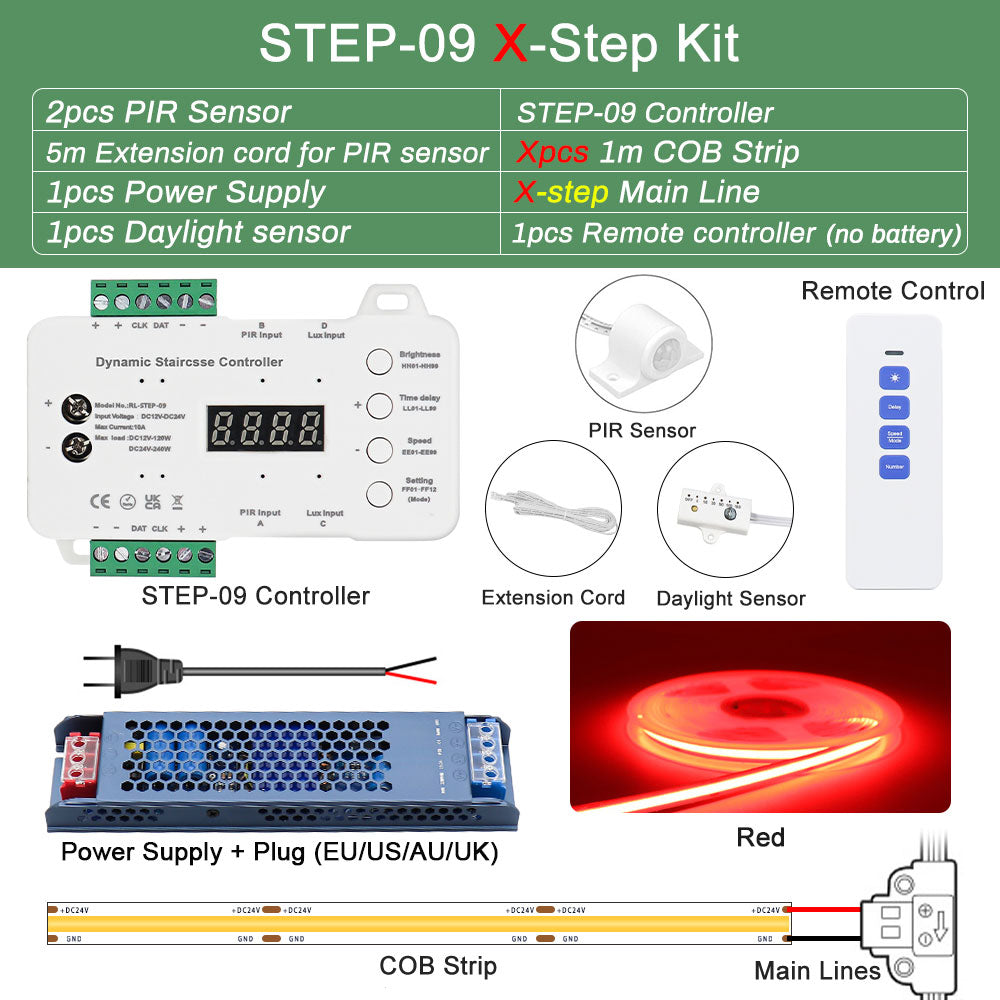

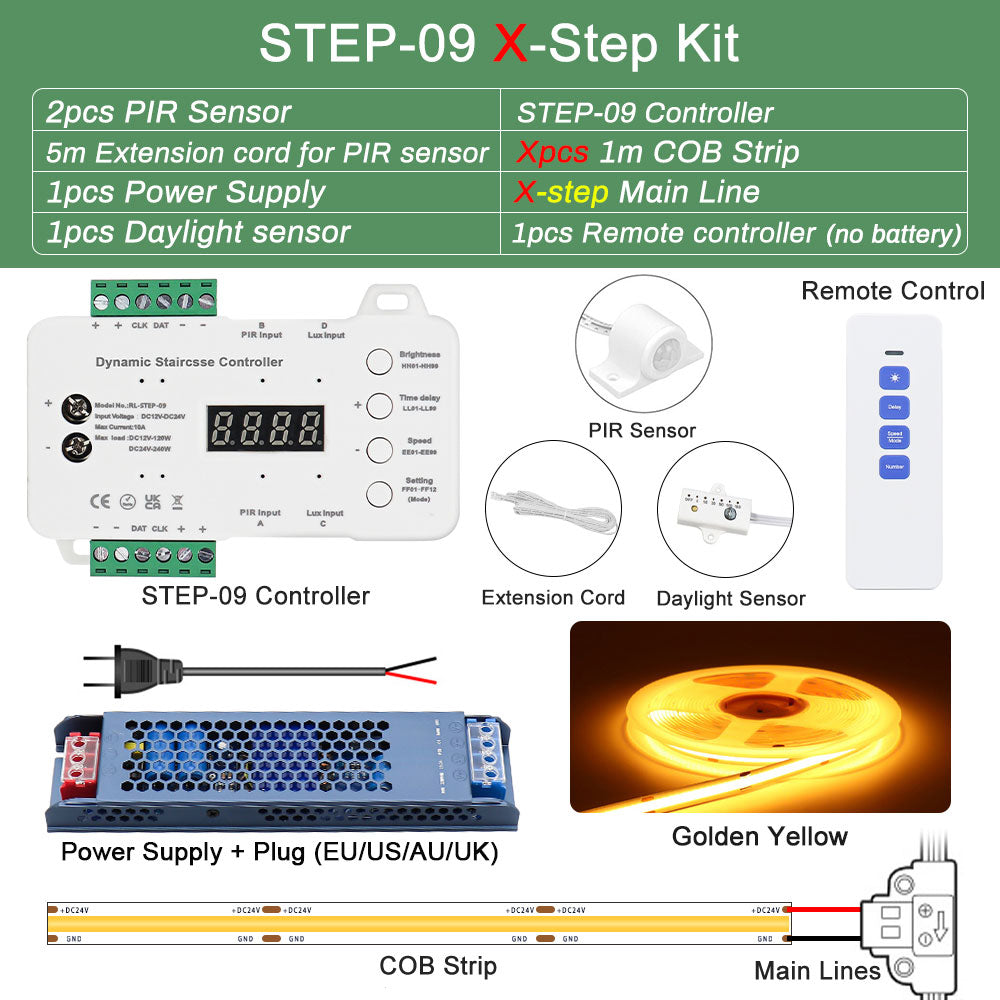

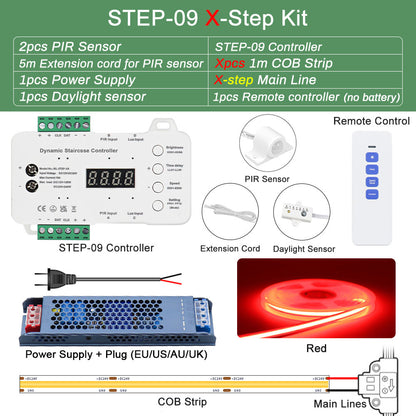

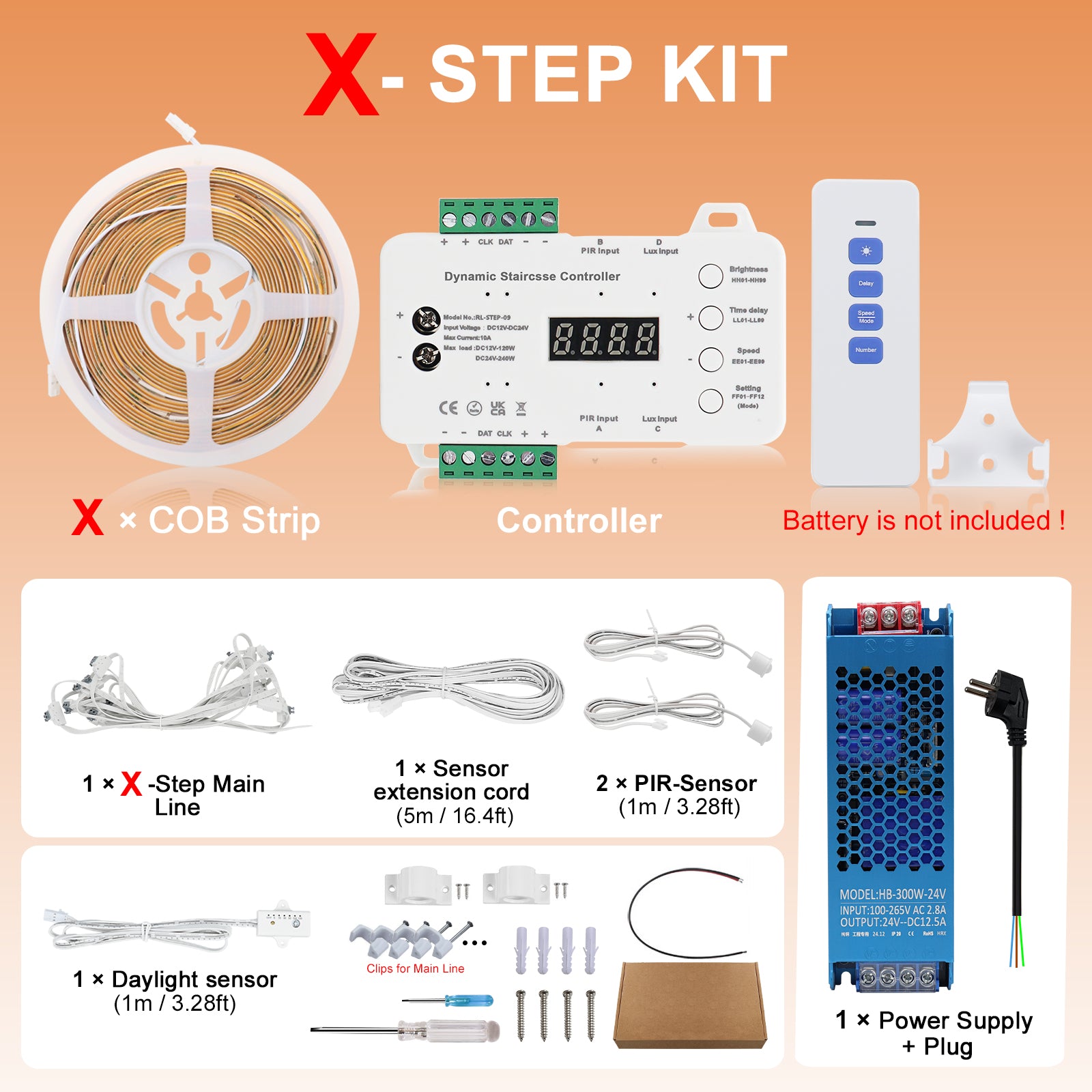

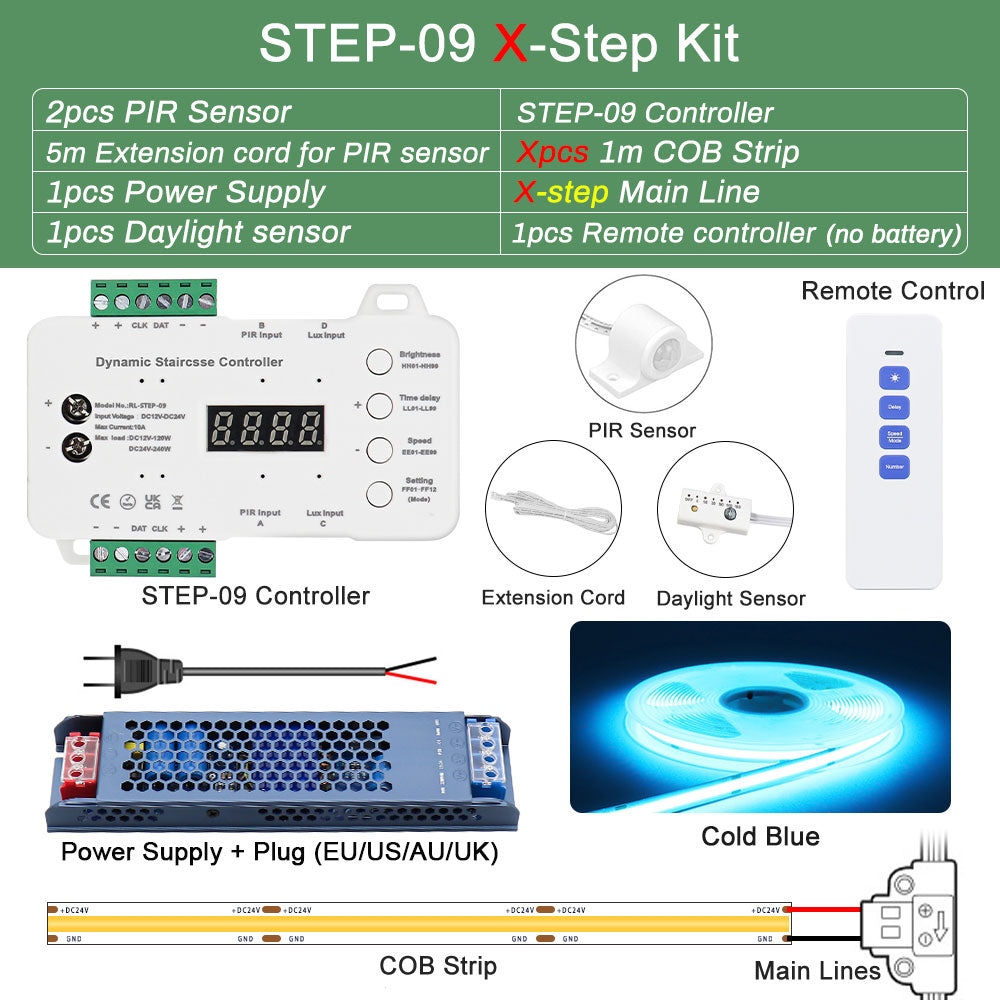

Package Includes

• 1 x KLA-STEP-P5 Stair Light Controller
• 2 x PIR Motion Sensors
• 1 x Daylight Sensor
• 1 x 5m PIR Sensor Extension Cable
• COB LED Strips (based on selected step quantity)
• Main Line Cable (based on selected step quantity)
• 1 x 24V Transformer Power Supply
• Mounting Clips
• Screws & Installation Accessories
• Remote Control

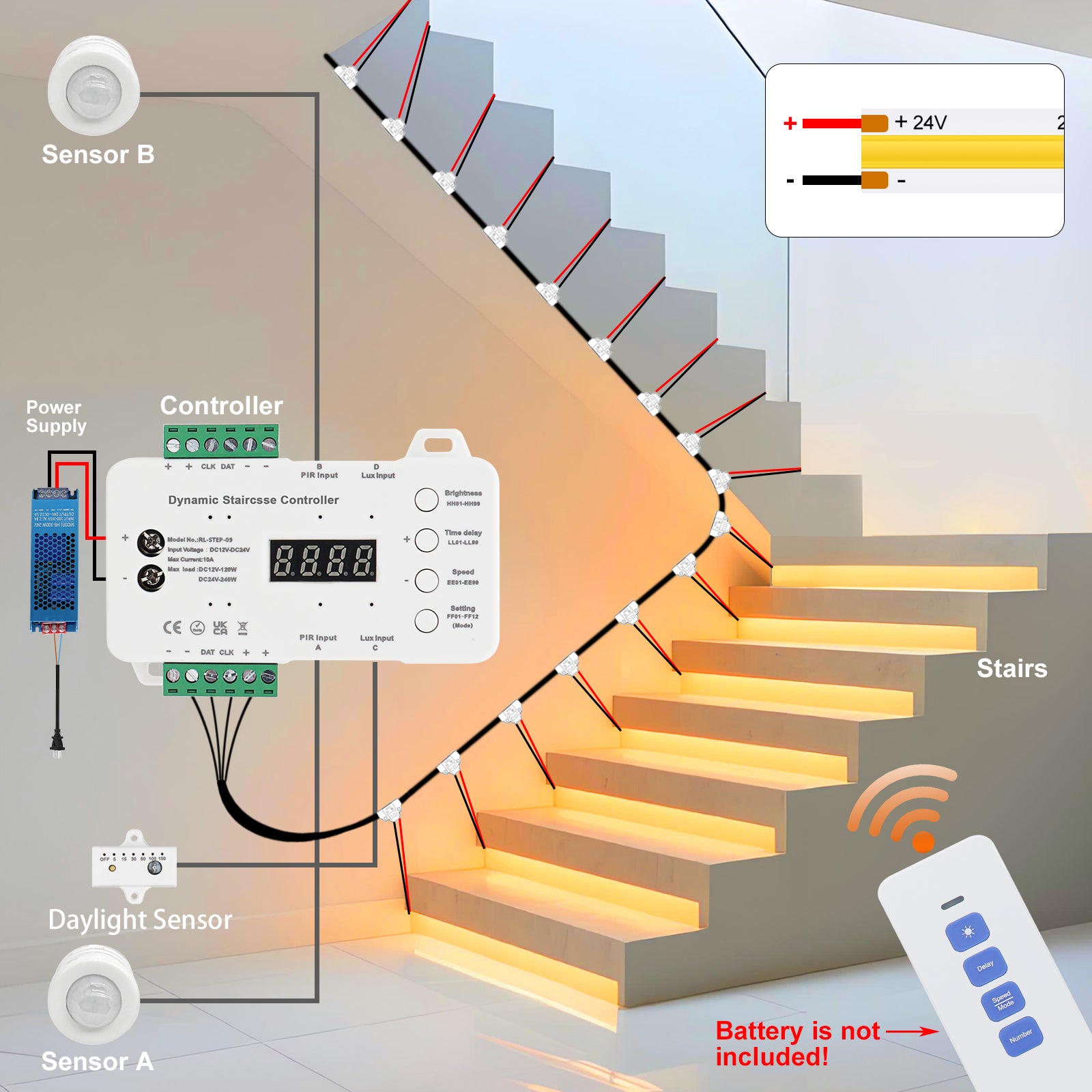

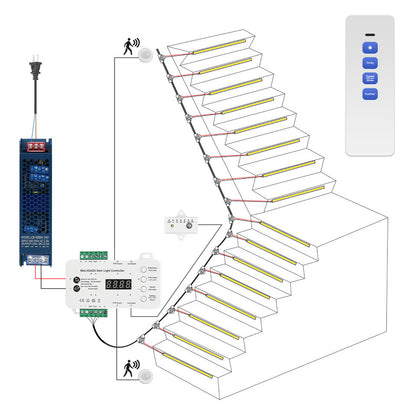

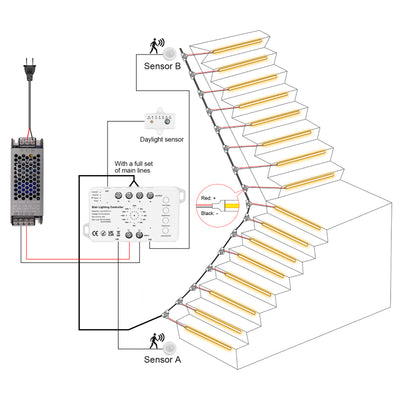

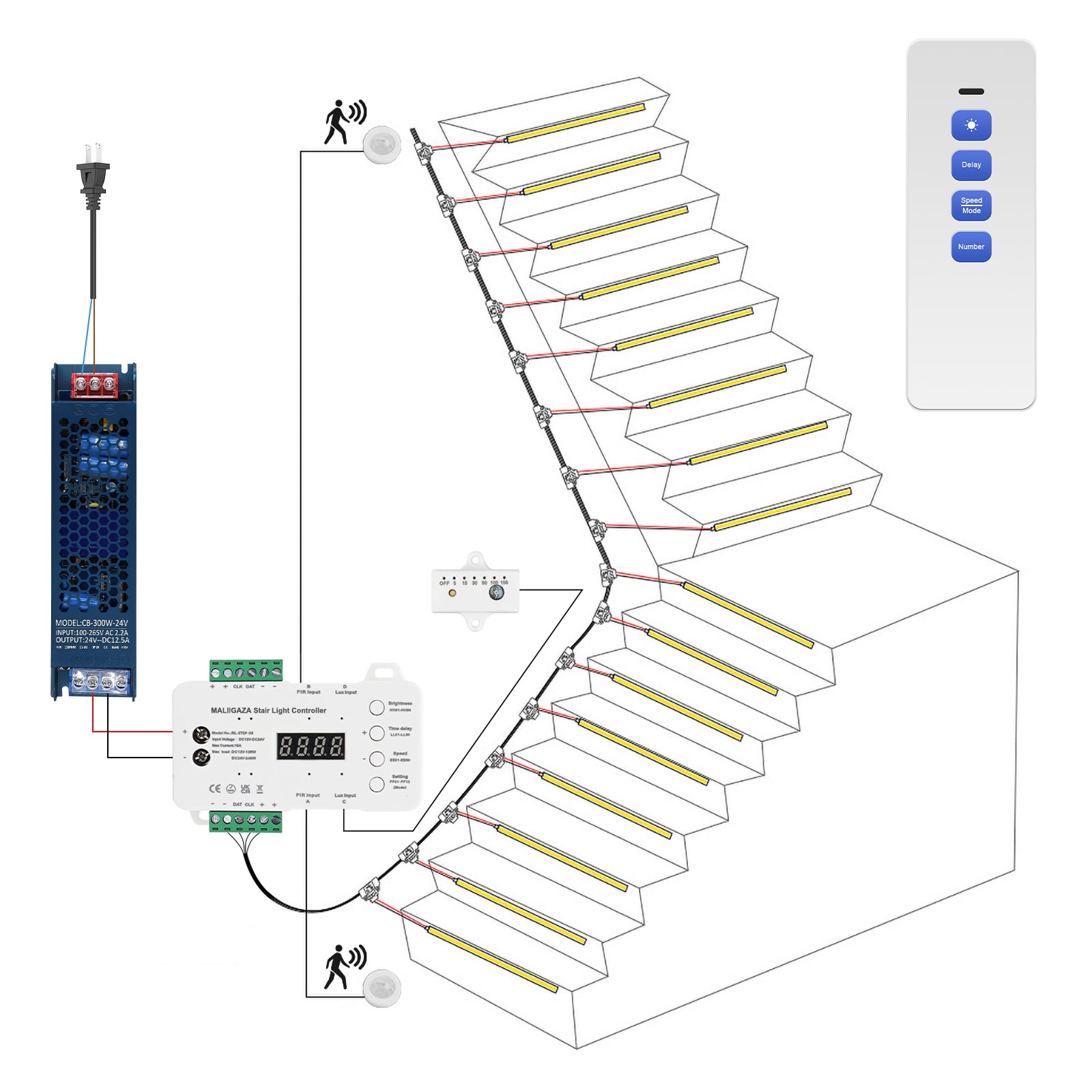

Installation Guide

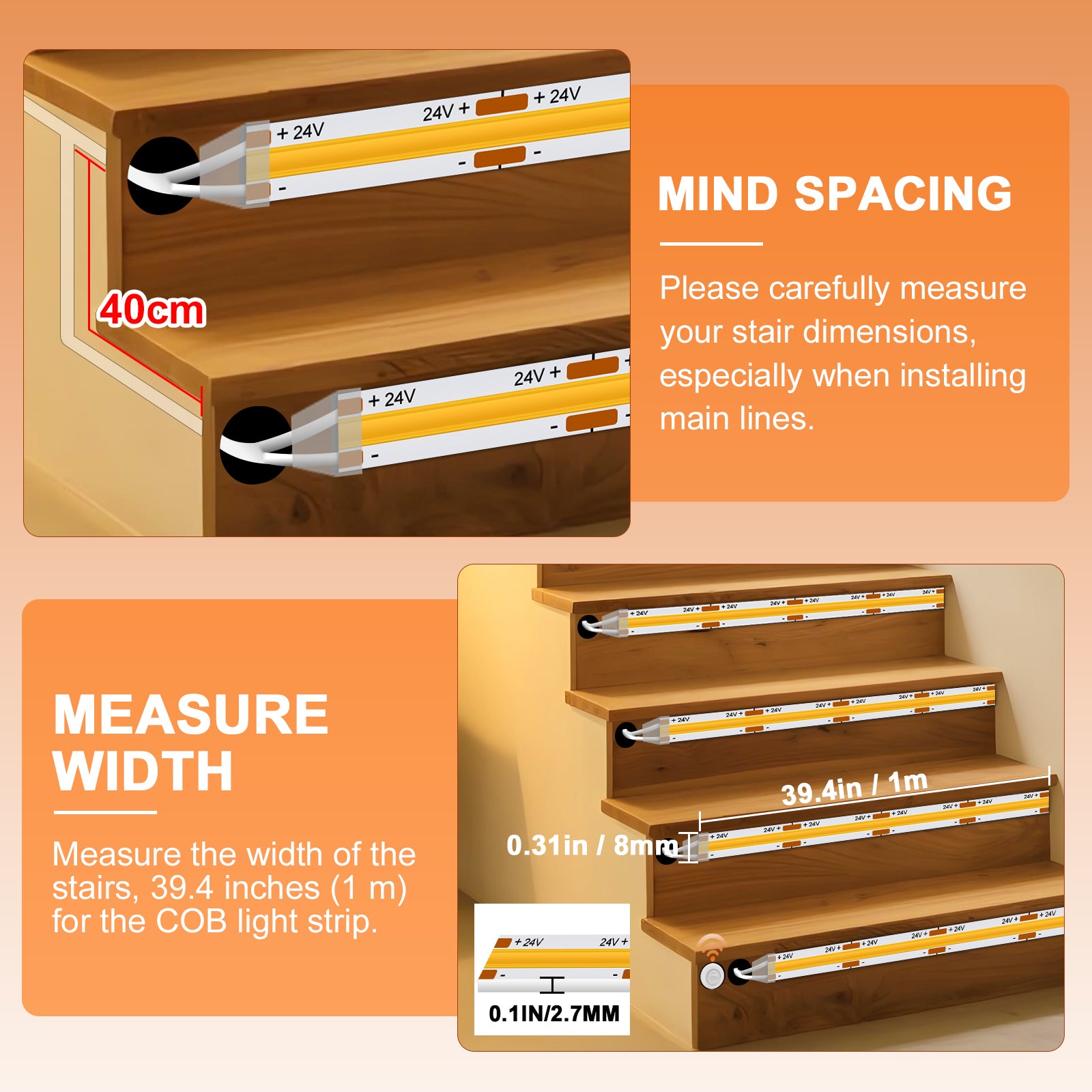

1. Measure your staircase step spacing before purchase.
2. Install the main line cable along the side of the staircase.
3. Follow the arrow direction marked on the main line.

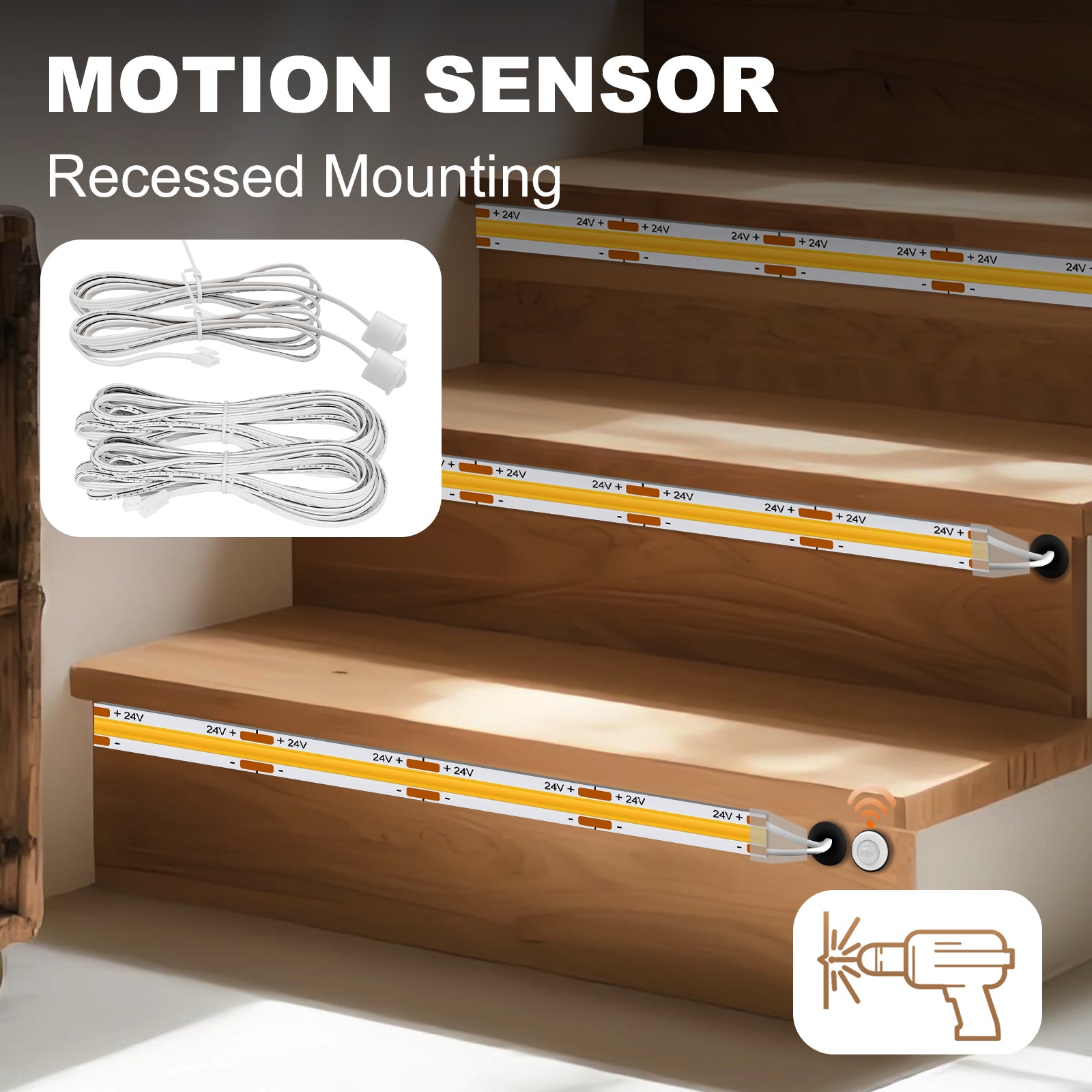

4. Attach COB LED strips to clean, smooth stair surfaces.
5. Connect each LED strip to the main line.
6. Install PIR motion sensors and daylight sensor.
7. Connect the controller to the included 24V power supply.
8. Power on the system after installation is completed.
9. Adjust lighting modes and brightness settings.

Troubleshooting Guide

The lights do not turn on

• Check that the controller is connected to the 24V power supply
• Verify the main line installation direction
• Check all strip connections
• Ensure daylight sensor is not detecting strong ambient light

Some stair lights are not working

• Check strip connectors
• Verify the strip is properly inserted into the main line
• Inspect for damaged cables

Motion sensor not responding

• Check sensor connection
• Adjust daylight sensitivity settings
• Ensure sensor placement has clear detection range

Important Notes

• Never connect the controller or LED strips directly to AC 110V/220V power.
• The system must only be powered by the included DC 24V power supply.
• Main line cable must follow the arrow direction.

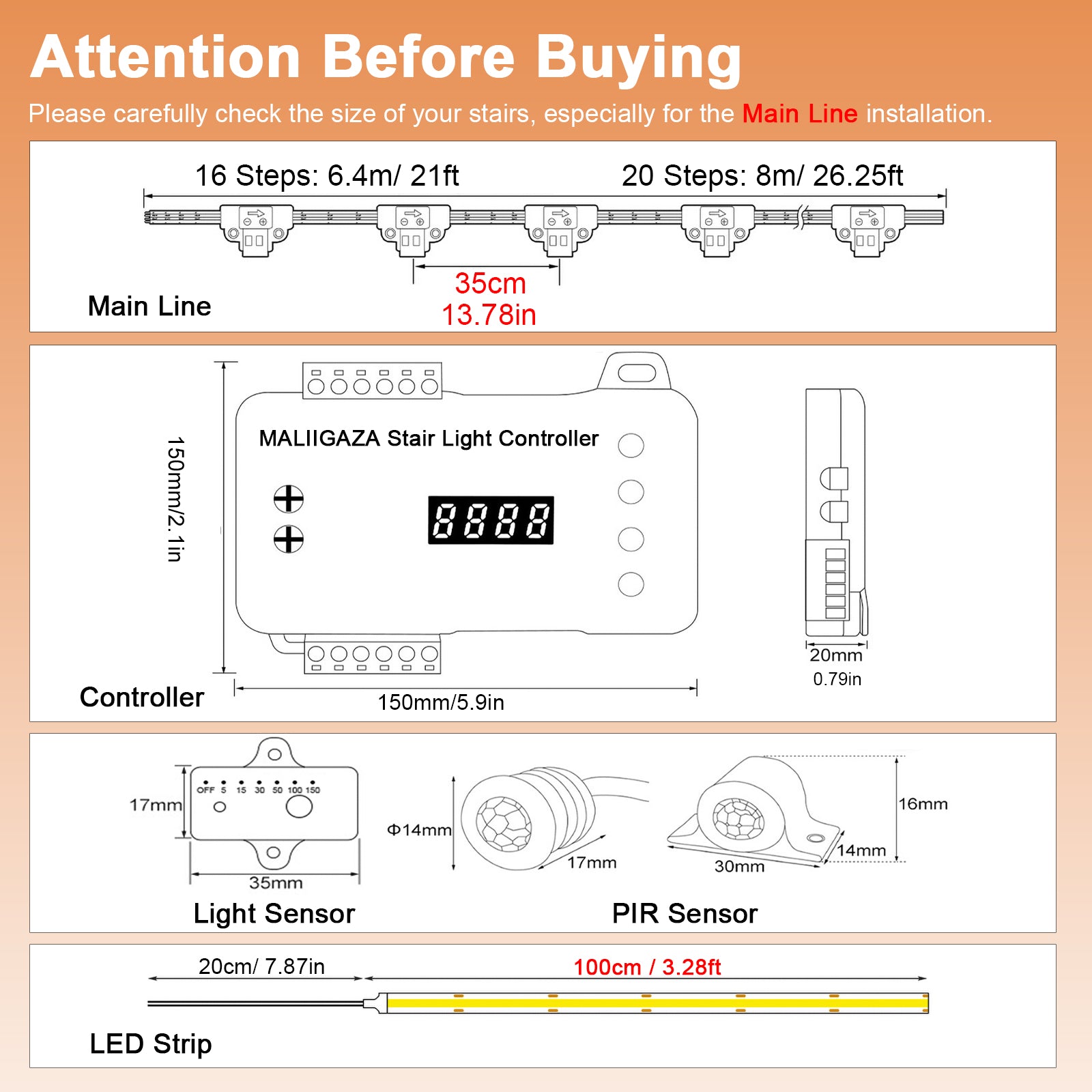

• Standard main line spacing is 35cm.
• 40cm spacing version is available upon request.
• For stair corners or larger spacing, the main line may require extension wiring.
• Install LED strips only on clean and smooth surfaces.
• Do not install or remove LED strips while powered on.
• Please select the correct stair step quantity before ordering.

Frequently Asked Questions

How do motion sensor stair lights work?

The PIR sensors detect movement near the staircase and automatically activate the LED stair lights with dynamic step-by-step effects.

Can these stair lights turn off automatically?

Yes. The system automatically turns off after the selected lighting duration.

Do the stair lights work during daytime?

The included daylight sensor prevents activation during bright conditions to save energy.

Are the COB LED strips dimmable?

Yes. Brightness can be adjusted using the controller or remote control.

Can I cut the LED strips?

Yes. The COB strips are cuttable every 50mm.

Is this stair lighting kit easy to install?

Yes. The main line system significantly simplifies installation compared to traditional stair lighting systems.

Does this require complicated wiring?

No. Each strip plugs directly into the main line cable for cleaner installation.

Can the system support large staircases?

Yes. The controller supports up to 40 steps depending on configuration.

Can I adjust the lighting speed?

Yes. Animation speed and lighting duration are fully adjustable.

Are these LED stair lights suitable for smart homes?

Absolutely. The automatic sensor-based operation is ideal for modern smart home environments.

What is the CRI rating?

The COB LED strips feature CRI 90+ for accurate and natural color rendering.

What colors are available?

Nine color options are available including warm white, natural white, cold white, blue, red, green, ice blue, pink, and golden yellow.

Can I extend the main line cable?

Yes. The main line can be cut and extended using compatible 4-pin wiring.

Is the LED strip waterproof?

The included strips are IP30 rated and recommended for indoor use only.

How long do the LED strips last?

Under normal usage conditions, COB LED strips typically provide long operational lifespan with stable brightness performance.

Create a Safer, Smarter, More Luxurious Staircase

Upgrade your home with intelligent motion sensor stair lighting designed for modern living.

The MALIIGAZA smart stair lighting system combines elegant ambiance, premium COB illumination, and practical automation in one professional-grade kit.

Designed for homeowners who value aesthetics, convenience, and smart functionality.
