MALIIGAZA IP68 RGBCCT COB LED Strip 24V - PWM or SPI WS2811, 840 LEDs/m, 3000K-6000K Tunable White
MALIIGAZA IP68 RGBCCT COB LED Strip 24V - PWM or SPI WS2811, 840 LEDs/m, 3000K-6000K Tunable White
Impossibile caricare la disponibilità di ritiro
Premium IP68 RGBCCT COB Lighting for Indoor and Outdoor Projects
MALIIGAZA P68 RGBCCT COB LED Strip combines high-density 840 LEDs/m COB lighting, RGB color control, 3000K-6000K tunable white, CRI >90 and a premium IP68 silicone enclosure.
Choose PWM RGBCCT for smooth static color and white-light control, or SPI RGBCCT for dynamic chasing, flowing and animated lighting effects.
Important: LED Strip Only
This listing includes the LED strip only. The controller and DC 24V power supply are NOT included and must be purchased separately.
PWM and SPI versions require different compatible controllers. Please confirm your selected strip type before ordering the controller.
One Strip. Full RGB Color. Adjustable White. Premium Waterproof Construction.
RGBCCT, also called RGBCW, gives you far more lighting flexibility than a standard RGB strip. Create colorful decorative lighting when you want atmosphere, then switch to dedicated white light with adjustable color temperature from warm 3000K to cool 6000K.
With a wide 14.5 mm light-emitting structure, high-density COB LEDs and a frosted silicone surface, the strip produces a smooth, soft and visually continuous lighting effect designed for premium residential, commercial and decorative installations.
Why Choose This RGBCCT COB LED Strip?

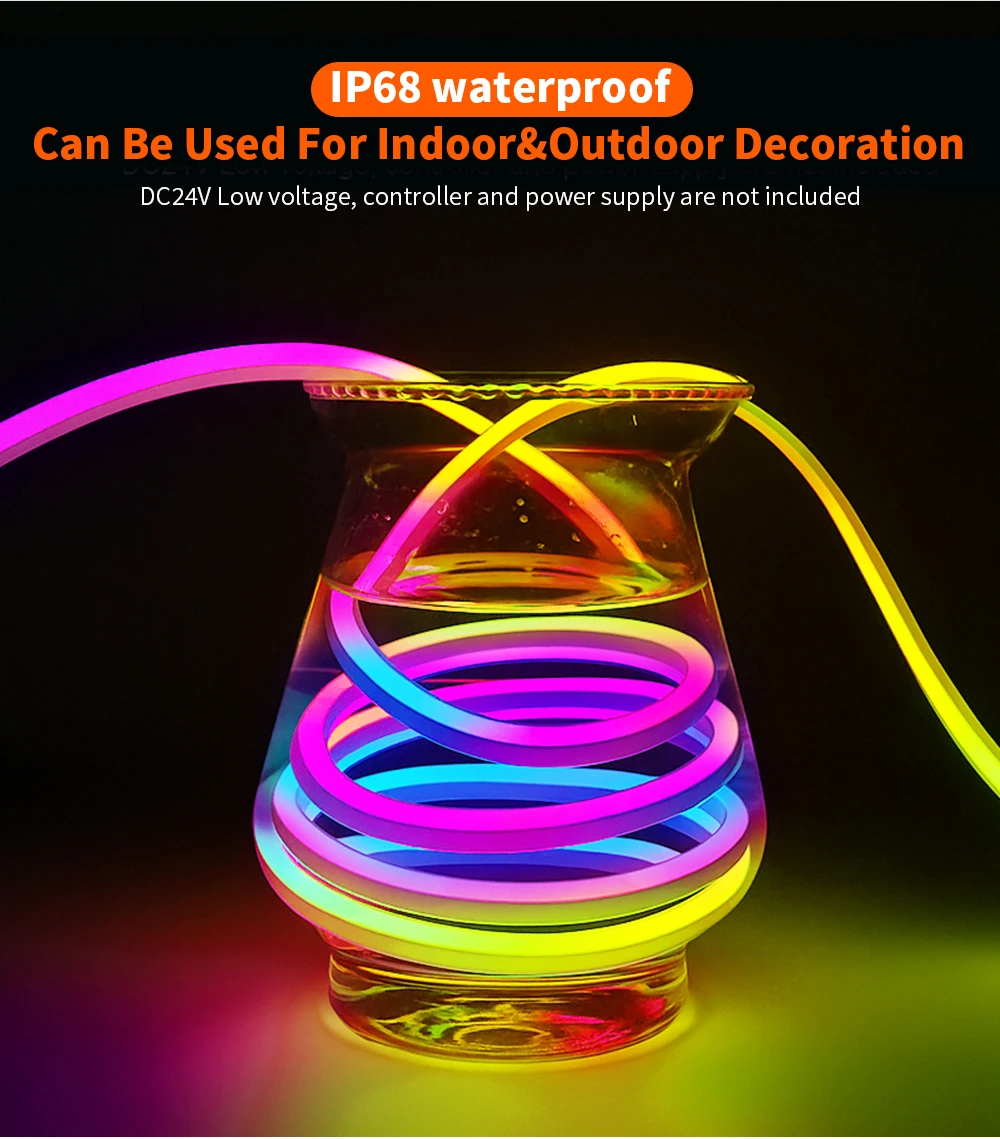

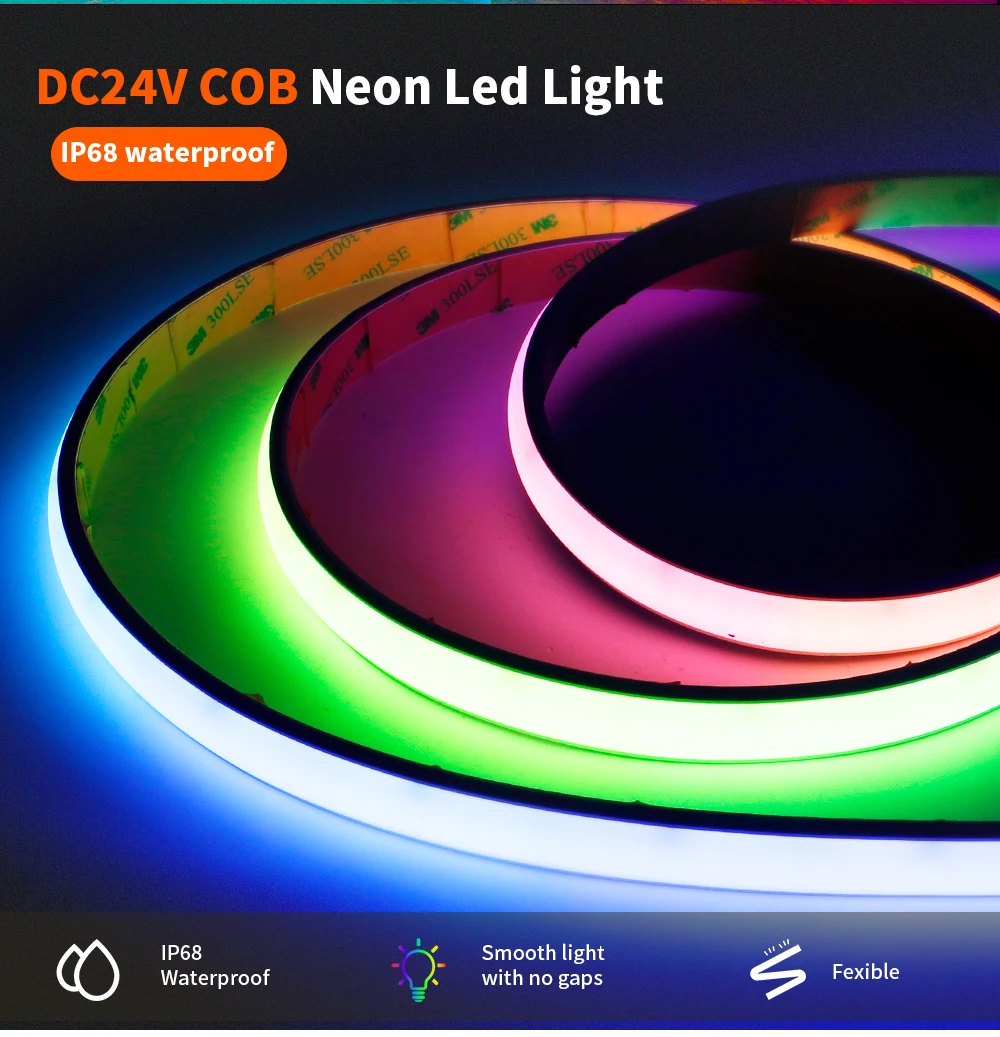

IP68 Waterproof Design
A private-mold silicone extrusion protects the strip from water, dust and dirt for demanding indoor and outdoor lighting applications.
840 LEDs per Meter
Ultra-high LED density helps create bright, continuous COB illumination with reduced visible light spots.
RGB + 3000K-6000K White
Enjoy full RGB decorative colors plus independently adjustable warm-to-cool white lighting.
CRI >90
High color rendering helps objects, furnishings and architectural finishes appear more natural under white light.

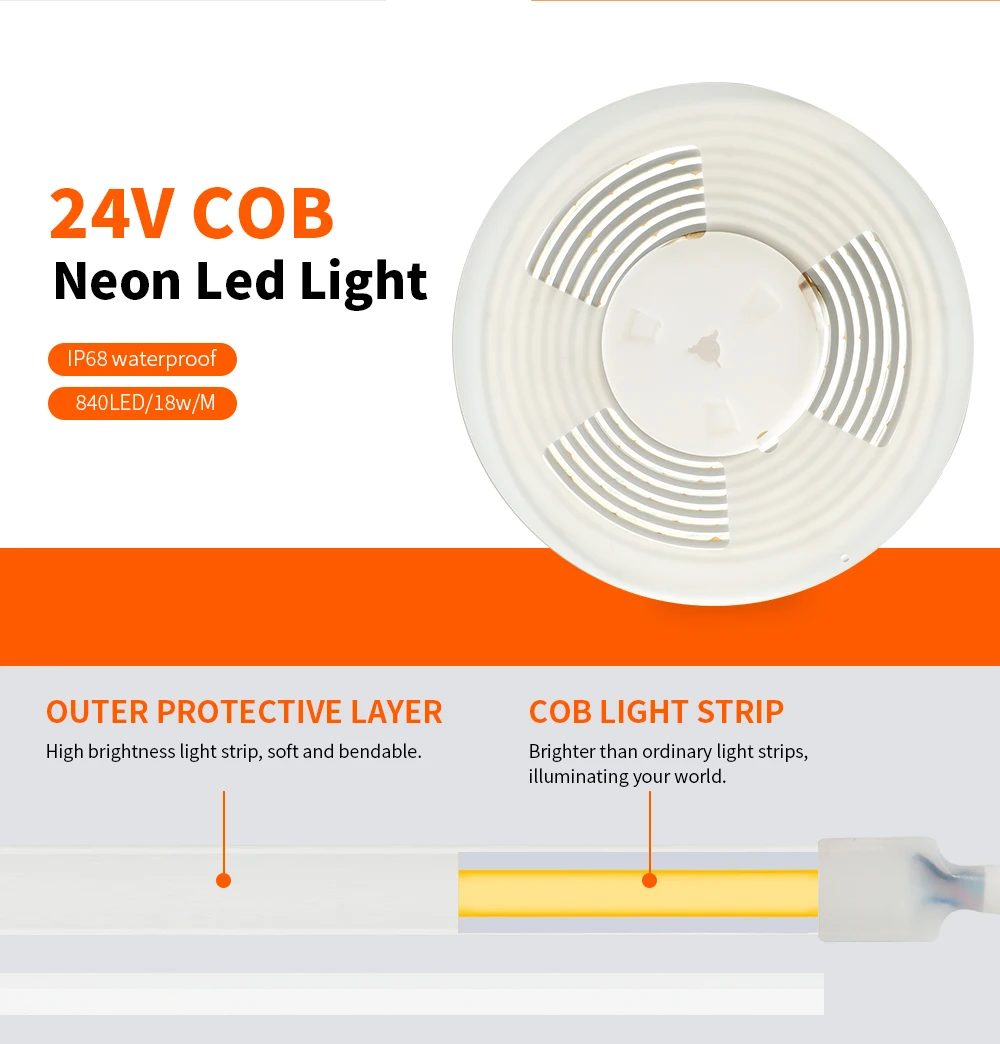

Premium Frosted Silicone Construction
This is not a basic LED strip placed inside a low-cost PVC sleeve. The P68 series uses a dedicated silicone extrusion mold with a frosted, oil-treated surface.
The smooth surface helps resist dust and dirt while giving the strip a refined texture. The frosted silicone also softens the light output and contributes to a more uniform visual effect.

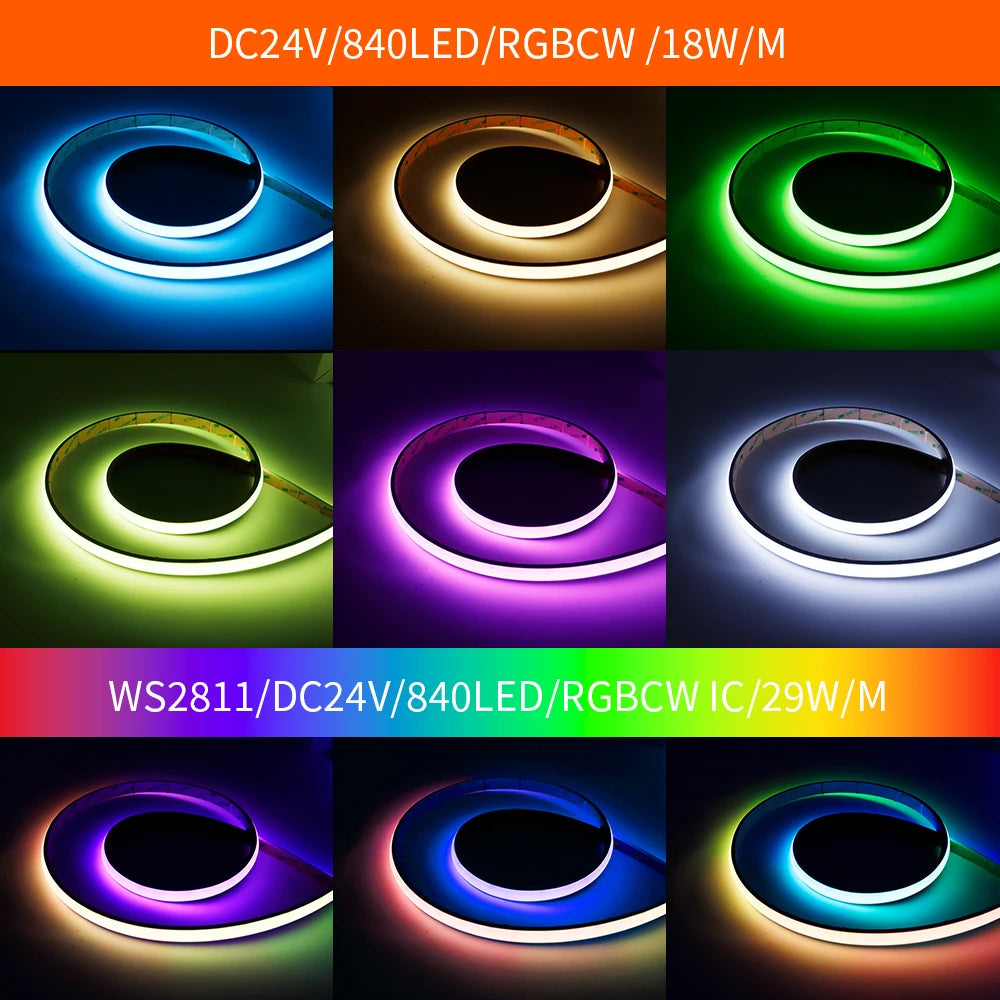

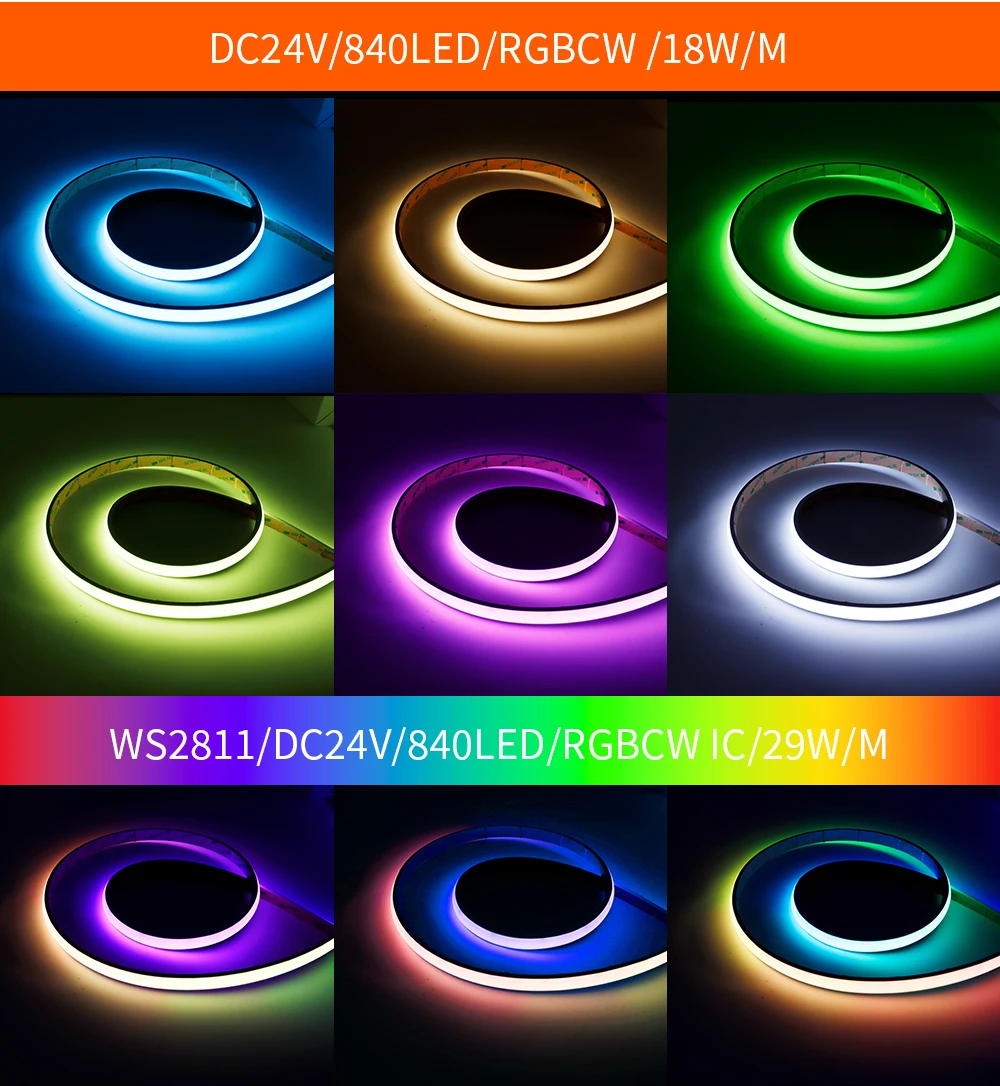

Choose PWM or SPI RGBCCT
PWM RGBCCT
Best for: Static decorative lighting and tunable white applications.
Lighting: RGB colors + 3000K-6000K adjustable white.
Voltage: DC 24V.
Power: 18W/m.
Minimum cut unit: 41 mm.
SPI RGBCCT
Best for: Dynamic decorative and animated lighting.
Lighting: Addressable RGB + 3000K-6000K white.
IC: WS2811.
Voltage: DC 24V.
Power: 29W/m.
Minimum cut unit: 71 mm.

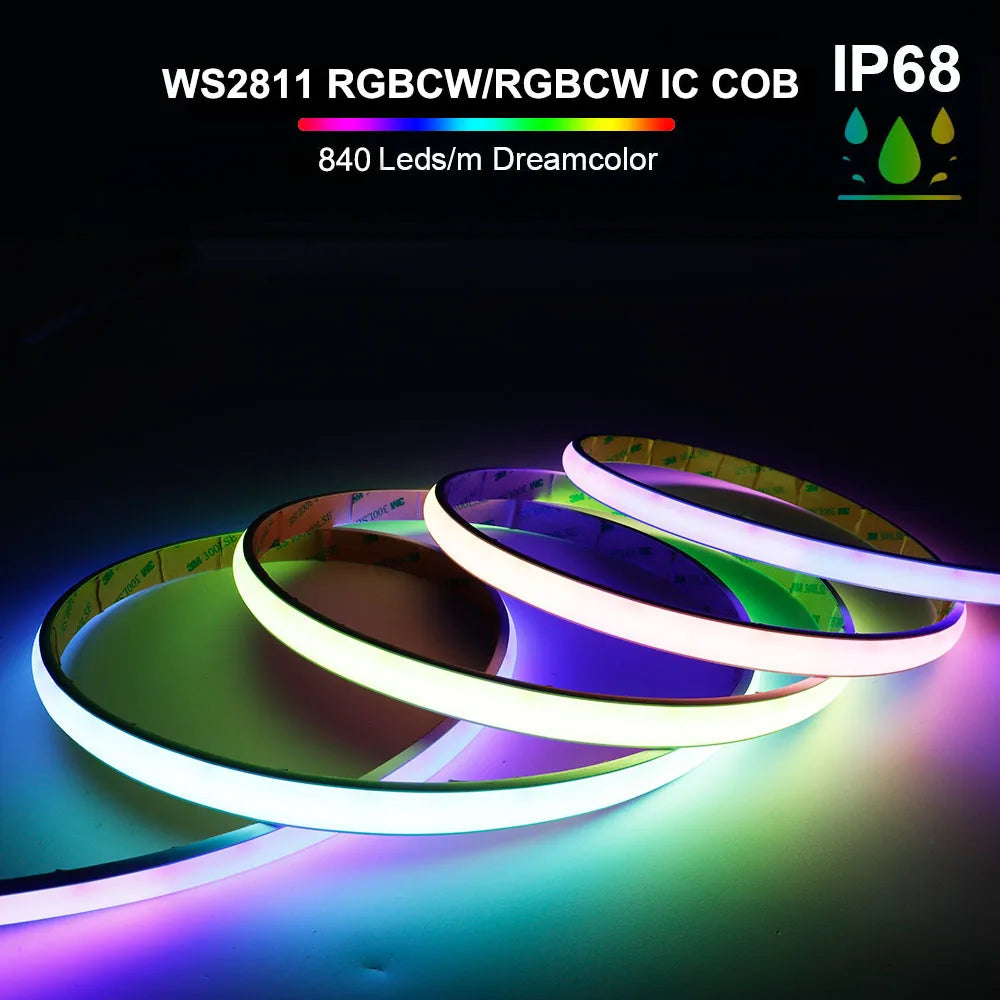

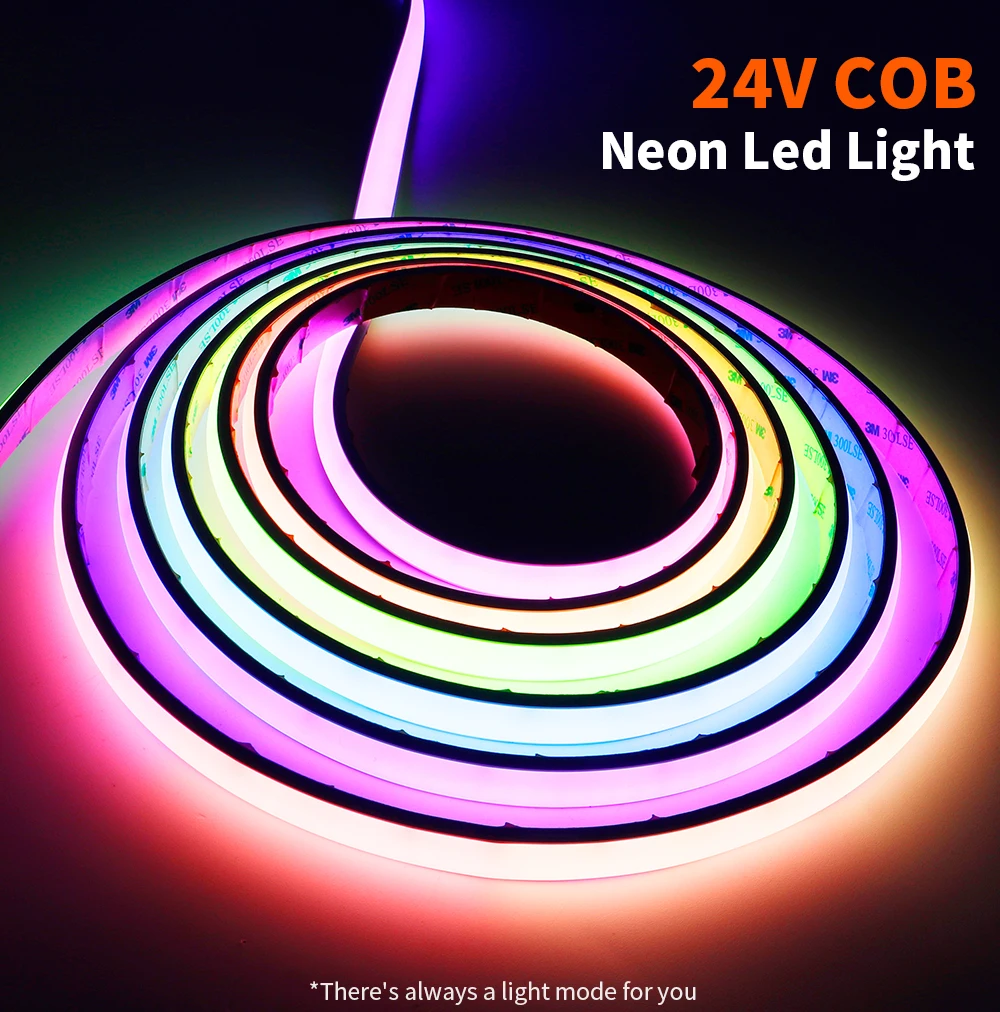

Dynamic Addressable Lighting with the SPI Version
The SPI RGBCCT version supports compatible addressable lighting control, allowing effects such as flowing color, chasing light, running-light animations and static colors.
Additional power-injection wires are provided on the SPI strip connections to support power supplementation in longer installations where required.
Available Up to 10 Meters at DC 24V
The 24V platform and high-quality strip construction are designed to support long lighting runs. Available length options include 5 m and 10 m.

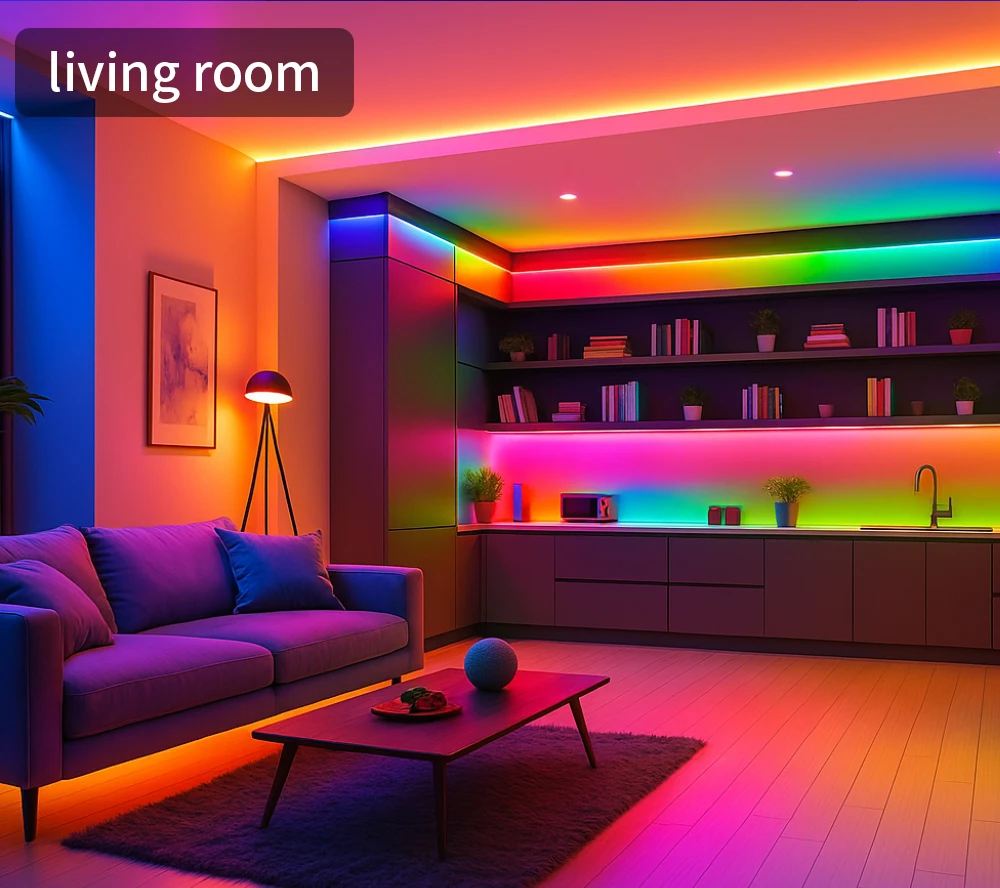

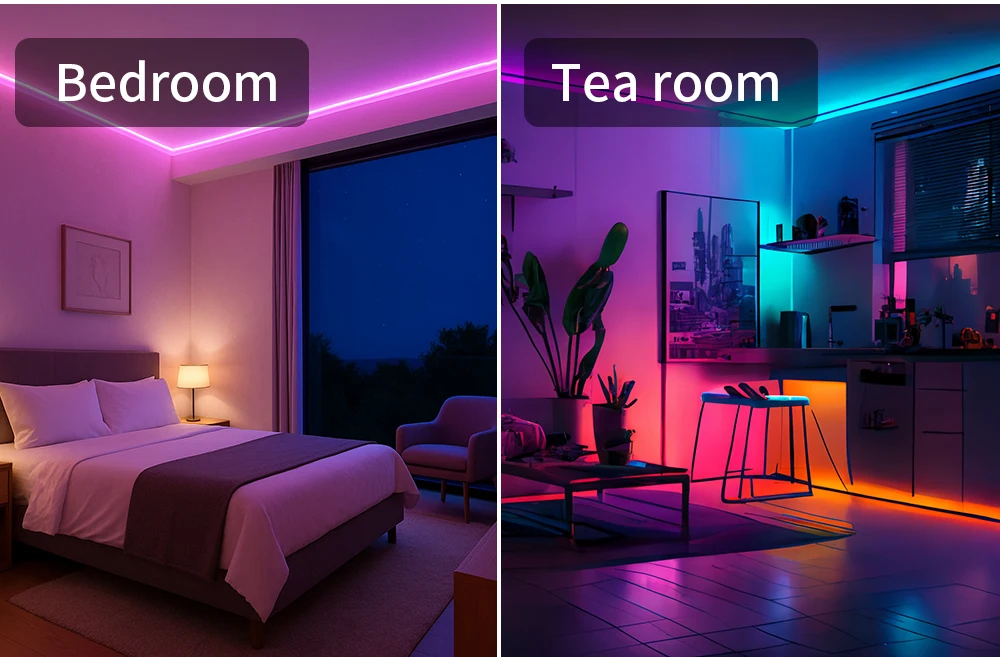

Ideal Applications
Water-resistant decorative lighting projects.
Roofs, architectural accents and exterior features.
Decorative public-space illumination.
Color-changing seasonal installations.
Feature walls, ceilings and decorative details.
Custom RGB and tunable-white lighting designs.

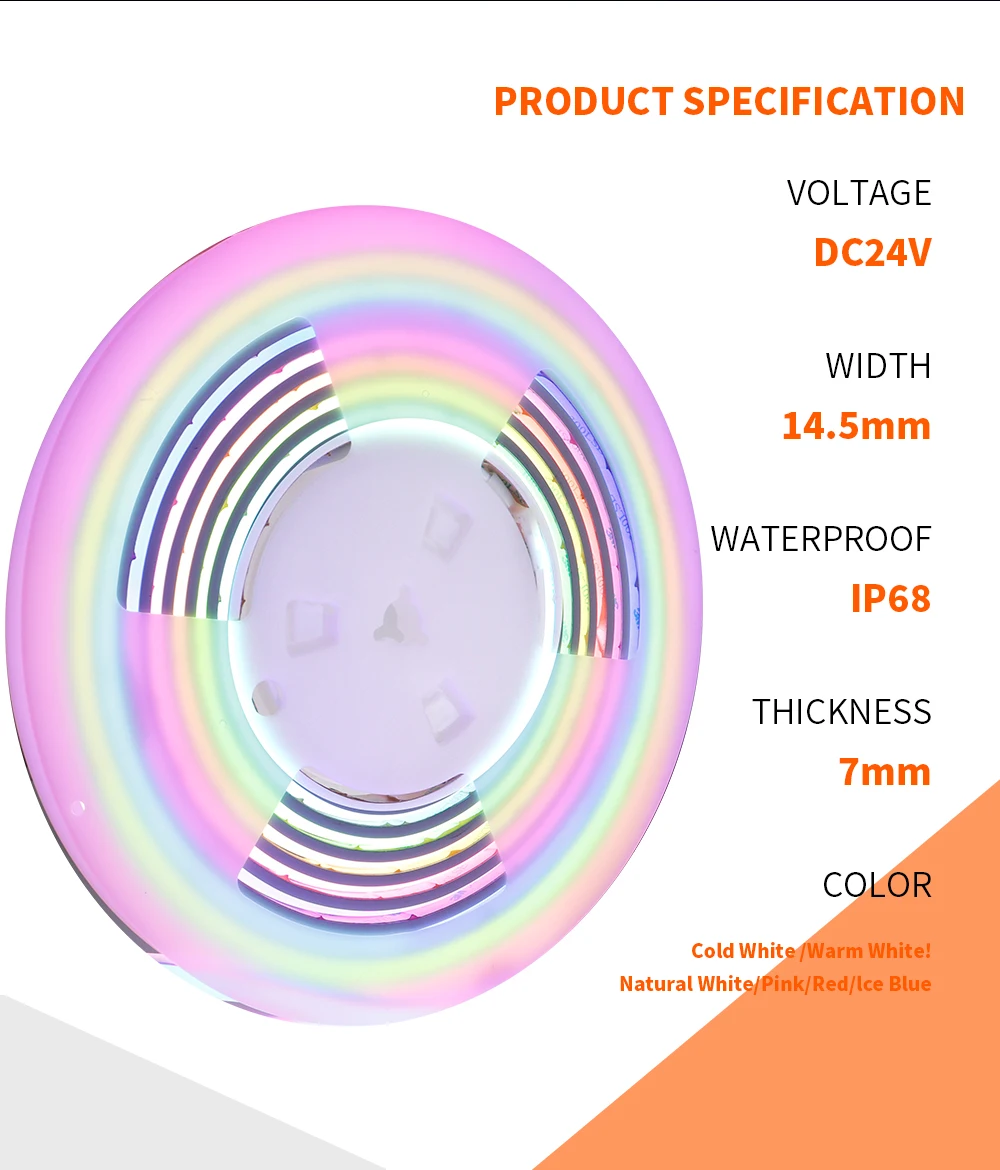

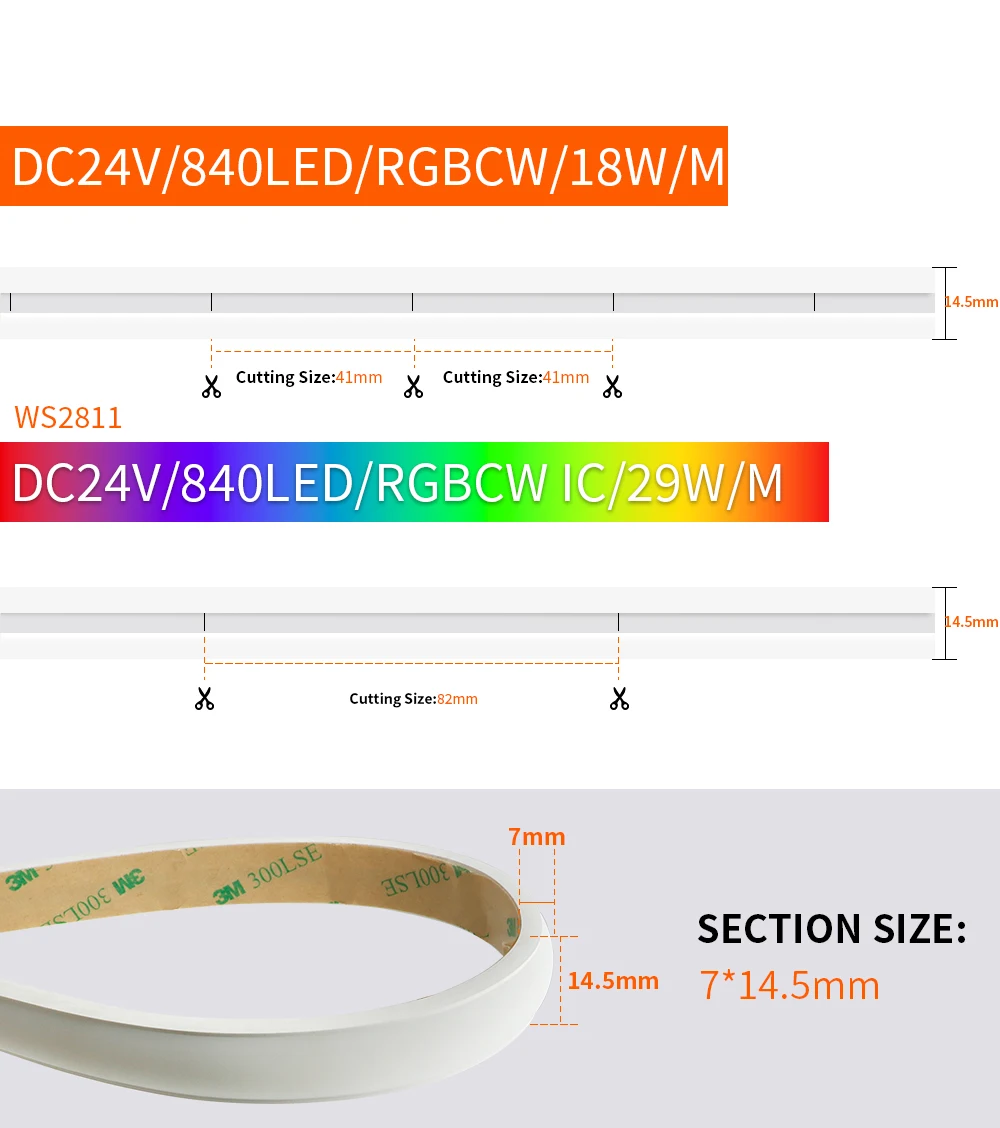

Technical Specifications
| Specification | PWM RGBCCT | SPI RGBCCT |
|---|---|---|
| Voltage | DC 24V | DC 24V |
| LED Density | 840 LEDs/m | 840 LEDs/m |

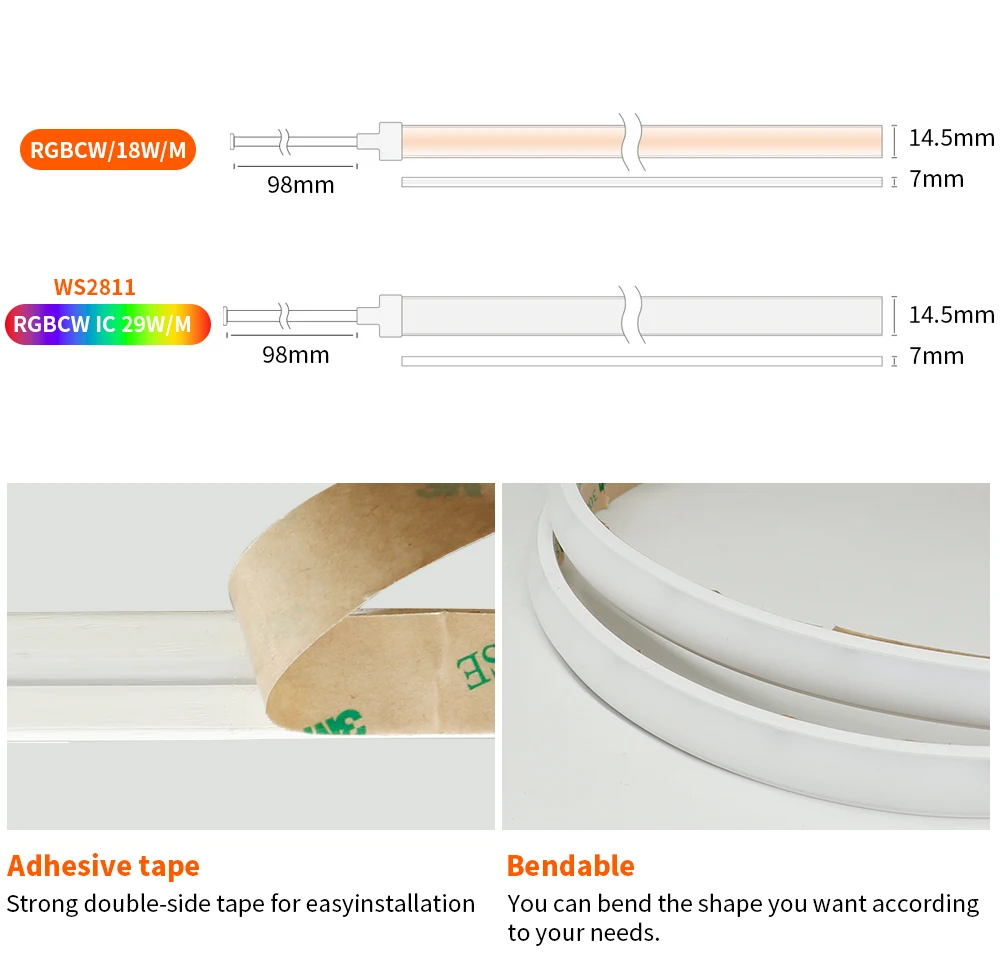

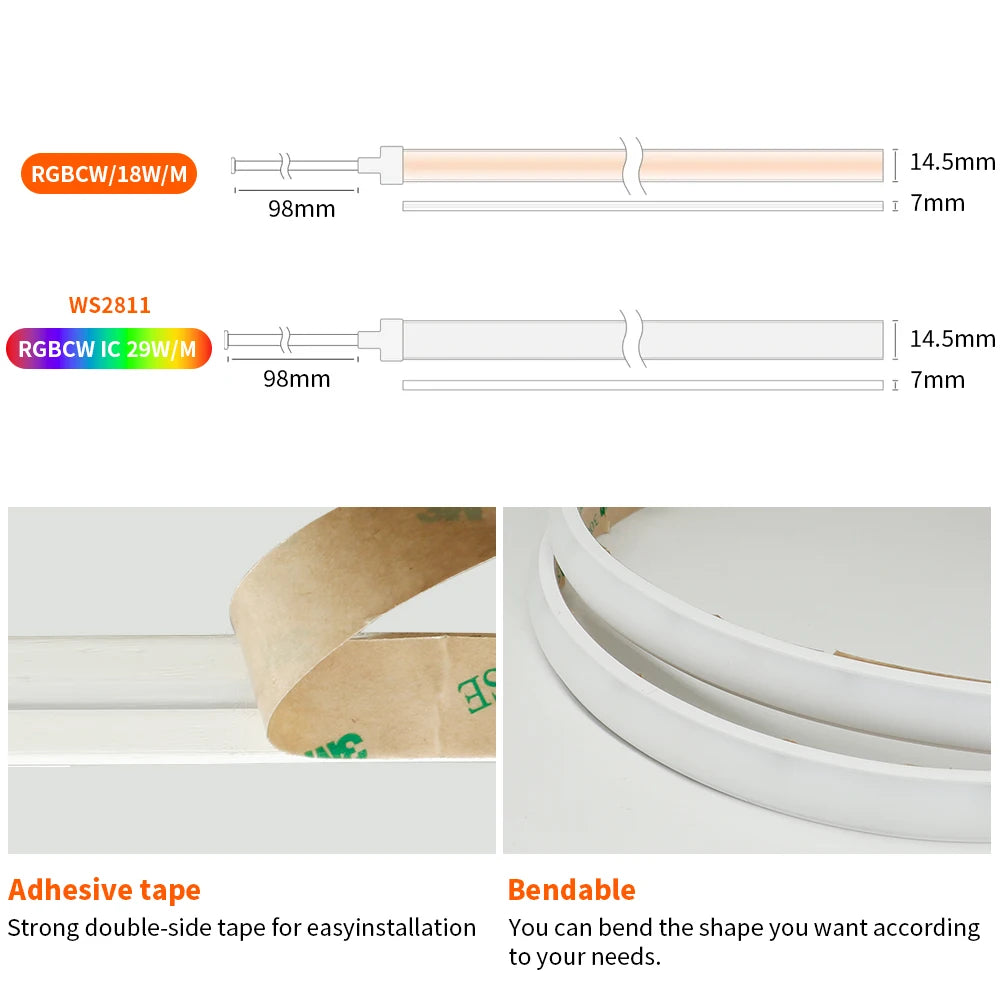

| Strip Width | 14.5 mm | 14.5 mm |
| Strip Thickness | 7 mm | 7 mm |
| Light Color | RGB + 3000K-6000K | Addressable RGB + 3000K-6000K |
| CRI | >90 | >90 |
| Waterproof Rating | IP68 | IP68 |
| Power | 18W/m | 29W/m |
| IC | Not applicable | WS2811 |
| Minimum Cut Unit | 41 mm | 71 mm |
| Tube Color | White | White |
| Length Options | 5 m / 10 m | 5 m / 10 m |
Controller Compatibility Matters
PWM RGBCCT: Use a compatible PWM RGBCCT/RGBCW controller designed for 24V constant-voltage LED strips.
SPI RGBCCT: Use a compatible SPI RGBCCT controller that supports the strip's addressable control protocol.
Package Includes
1 x P68 RGBCCT COB LED Strip
Controller: Not included.
Power supply: Not included.
Installation Guide
- Confirm whether you purchased the PWM or SPI version.
- Select the correct compatible RGBCCT controller for your strip type.
- Use a suitable DC 24V constant-voltage power supply sized for the total strip load.
- Clean and dry the installation surface before applying the adhesive backing.
- For outdoor, wet or long-term installations, add mounting clips rather than relying only on the adhesive.
- If cutting is necessary, cut only at the designated cut location.
- After cutting, seal the exposed end with a suitable end cap and waterproof sealant before exposing the strip to moisture.
- Check all wiring before switching on the power.

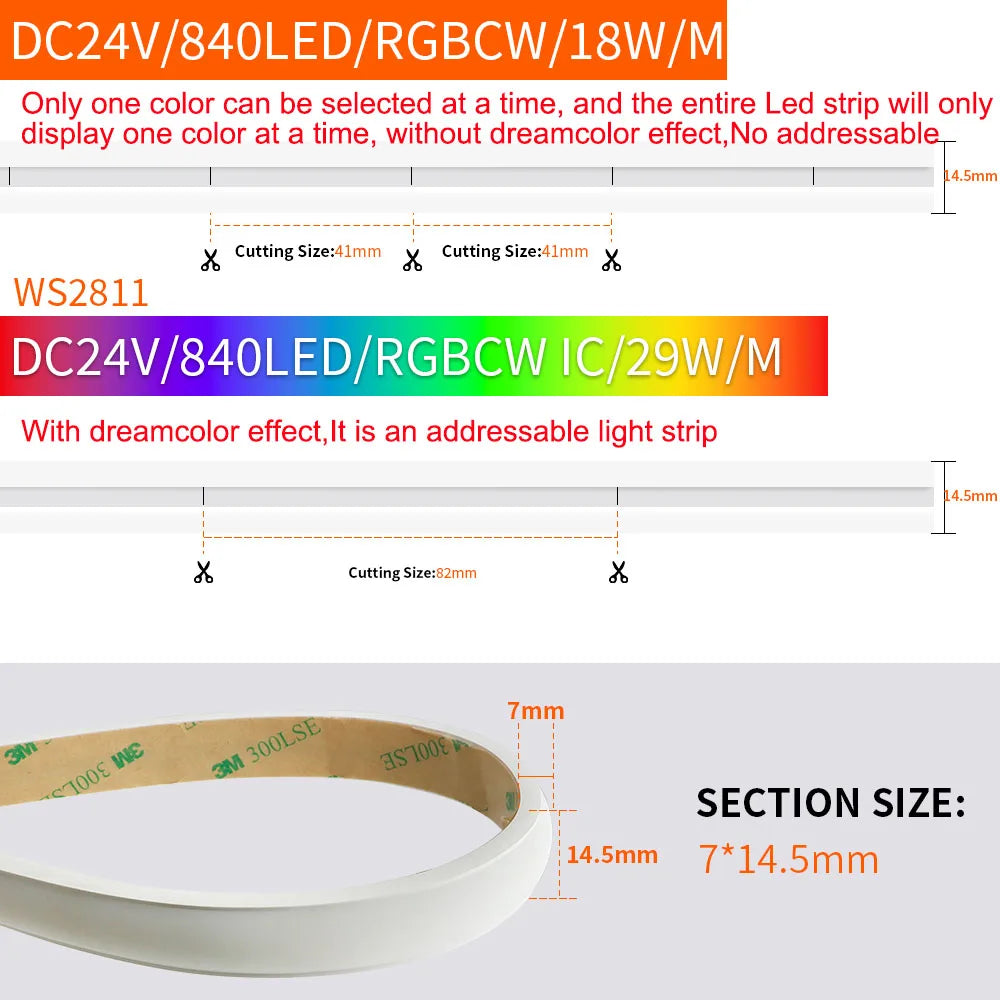

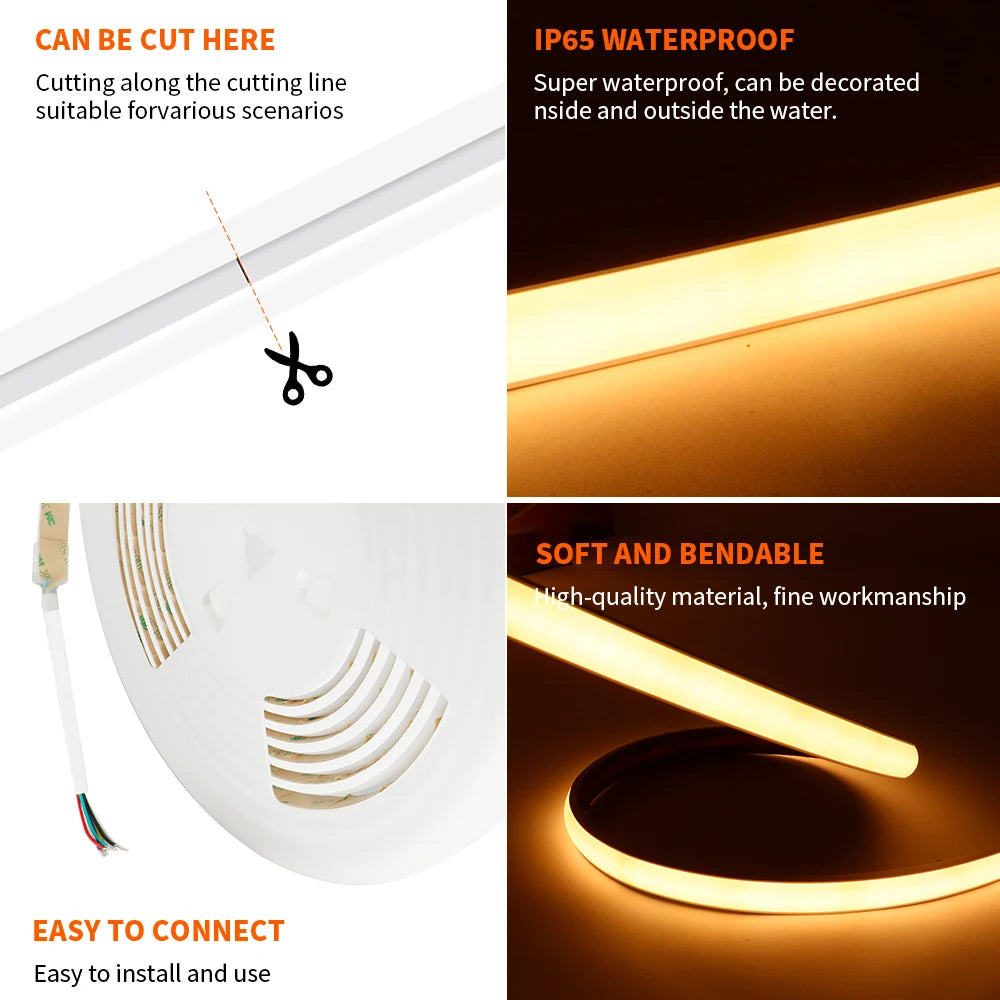

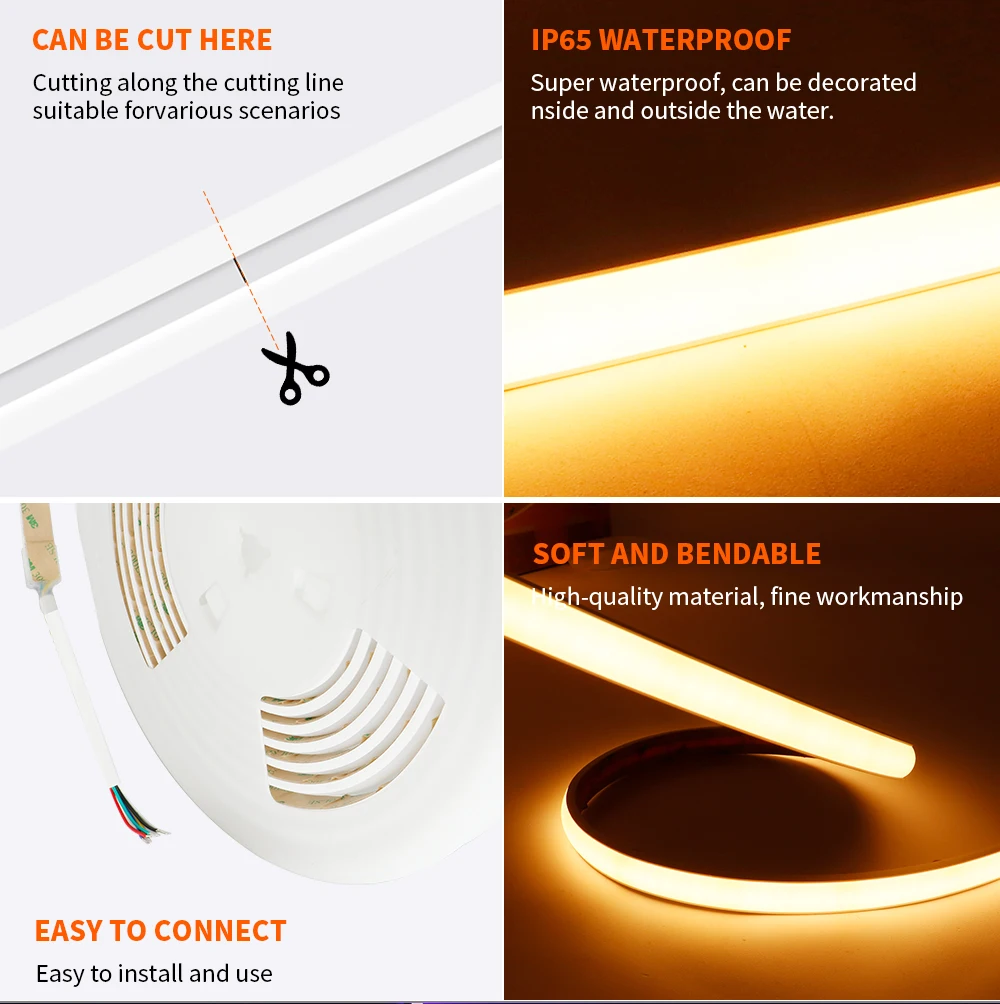

Cut Only at the Correct Cut Position
The cut marks are located under the rear adhesive layer. Peel back the adhesive carefully to locate the marked cutting position.
Cutting anywhere else may damage the strip. For best waterproof performance, avoid unnecessary cutting. Any cut end must be properly resealed.
Use Additional Mounting Clips Outdoors
The strip includes adhesive backing, but the waterproof silicone body is heavier than a basic bare LED strip. For wet, outdoor or long-term installations, use additional fixing clips to improve mechanical security.
Troubleshooting Guide
The strip does not light
Check the DC 24V power supply, controller wiring, polarity and all connectors.
RGB or white channels are incorrect
Confirm that the controller type and output wiring match the selected RGBCCT strip.
SPI effects do not work
Confirm that you ordered the SPI version and are using a compatible SPI RGBCCT controller. The PWM version does not support addressable chasing effects.
Brightness drops on a long installation
Check power supply capacity, cable size and connection quality. The SPI version provides additional power-injection wires for supplementary power when required.
The strip starts to detach
Use suitable mounting clips, especially for outdoor, humid or long-term installations.
Important Safety Notes
- This is a DC 24V low-voltage LED strip.
- Never connect the strip directly to AC 110V or AC 220V mains power.
- Use the correct compatible controller and DC 24V power supply.
- PWM and SPI strips require different controller types.
- Cut only at the designated cut position.
- Reseal every cut end before exposing the strip to water or moisture.
- Use additional mounting clips for outdoor or long-term installations.
- Make sure every component used in a wet installation has an environmental rating suitable for its location.
Frequently Asked Questions
1. What is an RGBCCT LED strip?
RGBCCT combines RGB color lighting with independently adjustable white light. This strip supports RGB plus approximately 3000K-6000K tunable white.
2. Is RGBCCT the same as RGBCW?
RGBCCT and RGBCW are commonly used to describe RGB lighting combined with warm-white and cool-white channels.
3. What is the difference between PWM and SPI RGBCCT?
PWM is intended for static RGB colors and tunable white. SPI adds addressable control for flowing, chasing and animated effects while also supporting static lighting.
4. Can the PWM version create chasing effects?
No. Dynamic chasing and flowing effects require the SPI version with a compatible SPI RGBCCT controller.
5. Is the LED strip waterproof?
Yes. The strip is specified with an IP68 waterproof rating and a silicone protective enclosure.
6. Can it be used around swimming pools?
The IP68 strip is designed for high-moisture and water-exposure applications, including pool-related decorative lighting. All other installation components must also be suitable for their environment.
7. Does the strip include a controller?
No. This listing contains the LED strip only. A compatible controller must be purchased separately.
8. Does the strip include a power supply?
No. A suitable DC 24V constant-voltage power supply must be purchased separately.
9. Can I connect this LED strip directly to 110V or 220V?
No. Never connect the strip directly to AC mains power. It is a DC 24V low-voltage product.
10. Can the LED strip be cut?
Yes, but only at the designated cutting points. The PWM minimum cut unit is 41 mm and the SPI minimum cut unit is 71 mm.
11. How do I keep the strip waterproof after cutting?
Seal the cut end using a suitable LED strip end cap and waterproof sealant before exposing the strip to moisture.
12. Does it have adhesive backing?
Yes. Adhesive backing is provided, but additional mounting clips are recommended for outdoor, wet and long-term installations.
13. What controller should I use?
Use a PWM RGBCCT controller for the PWM version or a compatible SPI RGBCCT controller for the addressable SPI version.
14. What IC does the SPI version use?
The SPI version uses WS2811 addressable control technology.
15. How many LEDs are installed per meter?
Both PWM and SPI versions use 840 LEDs per meter for dense, smooth COB illumination.
16. What certifications does this LED strip have?
Specific certification details were not provided in the product information for this listing. If your project requires a particular certification, confirm the required documentation before purchase.
Build a More Flexible Lighting System
Choose PWM for premium static RGBCCT lighting or SPI for advanced addressable effects. Both versions deliver high-density COB illumination inside a durable IP68 silicone enclosure.
