Shenzhen Cooleeon Electronics Co., Ltd.

MALIIGAZA Tuya Zigbee 24V Dimmable LED Power Supply 200W 300W for CCT and Single Color LED Strips

$53.61 USD

~~$107.22 USD~~ $53.61 USD

Sale Ausverkauft

Versand wird beim Checkout berechnet

Power 300W 200W

Output Voltage DC 24V

Smart Zigbee Power and Dimming in One Device

The MALIIGAZA DY-Zigbee is a DC 24V smart LED power supply with built-in Tuya Zigbee control for single color and CCT LED strips. Connect the LED strip directly to the power supply without adding a separate LED controller.

Simplify Your Smart Lighting System

Traditional smart LED installations often require both a power supply and a separate controller. DY-Zigbee combines power conversion and smart dimming control in one aluminum housing.

After connecting it to a compatible Tuya Zigbee gateway, you can control brightness, color temperature, groups and schedules through the Tuya or Smart Life app.

Core Benefits

Power Supply + Smart Controller

Connect compatible DC 24V LED strips directly without installing an additional dimmer controller.

Tuya Zigbee Control

Use a Tuya-compatible Zigbee gateway to add the power supply to the Tuya or Smart Life ecosystem.

Brightness and CCT Control

Designed for 2-wire single color strips and 3-wire CCT tunable white LED strips.

Silent Fanless Design

High thermal conductivity aluminum housing provides passive heat dissipation without a cooling fan.

Key Features

Built-In Zigbee Smart Dimming

The smart control function is integrated directly into the LED power supply. Once paired with a compatible Tuya Zigbee gateway, the connected lighting can be managed through the Tuya or Smart Life app.

Direct 24V LED Strip Connection

The output provides V+, CW- and WW- terminals. Compatible CCT strips can connect directly to the power supply, reducing the number of separate components required in the lighting system.

Single Color and CCT Compatibility

For 3-wire CCT strips, connect the common positive wire to V+ and the two color channels to CW- and WW-.

A 2-wire single color strip can also use one output channel. Because only one of the two CCT channels is connected, only part of the app's CCT control range will affect the single color strip.

App, Group and Timer Control

Use the smart lighting functions available through the Tuya platform, including dimming, color temperature adjustment, group control and timer scheduling.

High-Quality Aluminum Housing

The power supply uses an aluminum alloy housing designed for effective heat dissipation and quiet operation. Available rated power options are 200W and 300W.

Smart Home Integration

DY-Zigbee is designed for the Tuya Zigbee smart lighting ecosystem and supports app-based smart lighting control.

It can also be integrated with supported Alexa, Google Assistant and Philips Hue smart home environments according to the connected Zigbee ecosystem and gateway configuration.

Application Scenarios

Bedroom Lighting

Create adjustable warm-to-cool white ambient lighting.

Kitchen and Cabinets

Smart dimming for cabinet and task lighting installations.

Background Walls

Control decorative LED strip brightness and color temperature.

Signage Lighting

Use with compatible 24V lighting for indoor display and signage projects.

Decorative Lighting

Suitable for indoor smart lighting and renovation projects.

Technical Specifications

Product Name	Dimmable Tuya Zigbee Power Supply
Model	DY-Zigbee
Input Voltage	AC 180-240V, 60Hz
Output Voltage	DC 24V
Rated Power Options	200W / 300W

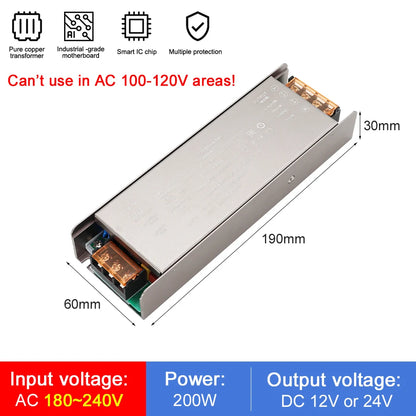

200W Size	190 x 60 x 30mm
300W Size	220 x 60 x 30mm
Smart Platform	Tuya / Smart Life
Wireless Protocol	Zigbee
Compatible LED Types	24V CCT and single color LED strips
Output Terminals	V+ / CW- / WW-
Protection	Short Circuit / Overload / Over Voltage, Auto-Recovery
Housing	Aluminum Alloy + Flame-Retardant PC
Connection Type	Screw Terminals
Certifications	CE / FCC / RoHS

Package Includes

1 x MALIIGAZA DY-Zigbee LED Power Supply

Installation and Pairing Guide

Install a Tuya-compatible Zigbee gateway and add the gateway to the Tuya or Smart Life app.
With power disconnected, connect the compatible 24V LED strip to the correct output terminals.
Connect the AC input wiring correctly to an AC 180-240V supply.
Power the unit on and off three times. Leave approximately 4-5 seconds between power cycles. The connected LED strip should flash when pairing mode is activated.
Add the power supply from inside the Zigbee gateway interface in the Tuya or Smart Life app.

Troubleshooting

The device cannot be added to the app

Confirm that a Tuya-compatible Zigbee gateway is already installed and added to the app. Repeat the three-cycle power pairing procedure if necessary.

The LED strip does not respond correctly

Check the V+, CW- and WW- output wiring and confirm that the connected LED strip is designed for DC 24V operation.

Single color dimming only uses part of the app control range

This is expected when a single color strip is connected to only one of the two CCT output channels.

Power supply stopped after an electrical fault

The unit includes short circuit, overload and over-voltage protection with auto-recovery. Remove the fault condition before restoring normal operation.

Important Notes and Safety Warnings

Tuya Zigbee gateway required: This power supply cannot connect to the Tuya or Smart Life app by itself.

24V output only: Do not connect a 12V LED strip or other 12V device to the output.

AC 180-240V input only: This model is not designed for 110V mains regions such as standard North American 110-120V installations.

Do not reverse input and output: Incorrect wiring can damage the power supply or connected equipment.

Single color strip behavior: A single color strip uses only one output channel, so only part of the CCT control range in the app will affect brightness.

Indoor use: No waterproof or IP rating is specified for this model. Install it in a dry, protected location.

MALIIGAZA Tuya Zigbee 24V dimmable LED power supply 200W 300W

Tuya Zigbee smart LED power supply for 24V CCT LED strip lighting

Zigbee dimmable LED driver with Tuya Smart Life app control

24V Zigbee LED power supply for single color and CCT LED strips

Tuya Zigbee CCT LED driver with brightness and color temperature control

Smart Zigbee LED power supply compatible with Alexa Google Assistant and Hue

MALIIGAZA DY-Zigbee smart LED driver for indoor decorative lighting

200W 300W Tuya Zigbee LED power supply with aluminum alloy housing

Silent fanless Zigbee 24V LED power supply for smart home lighting

Tuya Smart Life Zigbee LED driver with V plus CW and WW output terminals

24V smart Zigbee power supply for cabinet bedroom and decorative LED lighting

Tuya Zigbee dimmable power supply for 3 wire CCT tunable white LED strip

24V Zigbee smart LED driver with short circuit overload and over voltage protection

MALIIGAZA Zigbee LED power supply for smart CCT and single color strip lighting

Frequently Asked Questions

Does this Zigbee LED power supply need a gateway?

Yes. A Tuya-compatible Zigbee gateway is required before the power supply can be added to the Tuya or Smart Life app.

Can I connect a CCT LED strip directly to the power supply?

Yes. Compatible DC 24V 3-wire CCT LED strips can connect directly to the V+, CW- and WW- output terminals.

Do I need an additional LED controller?

No additional CCT dimmer controller is required because Zigbee smart control is integrated into the power supply.

Can it be used with a single color LED strip?

Yes. Connect the single color strip to V+ and one negative output channel. Only part of the app's CCT control range will then affect the connected strip.

Can I use this power supply with a 12V LED strip?

No. The output is DC 24V and must only be used with compatible 24V equipment.

Does it work on 110V or 120V AC?

No. The specified input voltage is AC 180-240V, so this model is not suitable for standard 110-120V mains supply.

Can I adjust both brightness and color temperature?

Yes, when a compatible CCT LED strip is connected. The Tuya platform can provide brightness and color temperature control.

Does it support Alexa and Google Assistant?

The product is designed to support Alexa and Google Assistant integration through a compatible Zigbee smart home configuration.

Is it compatible with Philips Hue?

Philips Hue compatibility is listed for this product. Actual integration depends on the Zigbee gateway and smart home configuration being used.

Is the Zigbee power supply waterproof?

No waterproof or IP rating is specified for this model. Install the power supply indoors in a dry, protected location.

What protection functions are built in?

The specifications list short circuit, overload and over-voltage protection with auto-recovery.

Is the power supply fanless?

Yes. It uses a silent fanless design with an aluminum alloy housing for passive heat dissipation.

How do I put the power supply into Zigbee pairing mode?

Power the unit on and off three times, leaving approximately 4-5 seconds between cycles. The connected strip should flash when pairing mode is active.
